Home > Industrial Equipment & Components > Conveyor & Parts > Conveyor > High Quality Pneumatic Vacuum Feeding Machine With CE

High Quality Pneumatic Vacuum Feeding Machine With CE

Jiangyin Baoli Machinery Manufacturing Co., Ltd.

High Quality Pneumatic Vacuum Feeding Machine With CE photo-1

US$ 3,000 - 14,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name JB

Dimension(L*W*H) O213*720mm

Weight 300KG

Transmission Length 0.005 km

Hoisting Height 0.005 m

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Transporting speed:1500kg/hour
2.Air consume: 720L/min
3.Air pressure range:0.4-0.6MPA
4.by pneumatic without motor

Detailed Product Description

Vacuum Conveyor is developed for flexible bulk/powder conveying.

1. Advantage:

Compared with traditional oil seal blade vacuum pump conveying solution, the injection vacuum pump used in conveyors are more flexible, more clean.

2. Working principle:

First the vacuum is generated in the air injection pump, and powder material is sucked in the conveyor tank, the powder is separated from the air by the filter and stay in the conveyor tank, when the tank is full filled, the pump stop and discharge valve is opened for powder material discharge. All the process is controlled by the controller.

3. Features:

Vacuum conveying in close pipeline, no leakage, no cross contamination.
Low energy consumption
Well static electricity elimination.
Ex-provffe type as an option
Easy to install and cleaning
In accordance with GMP
Made of ANSI 304/316L Stainless Steel

4. Applications:

Pharmaceutical industry: tablet, granulate, capsule, pills
Food industry: additive, surge, coffee, milk powder, flakes, pasta
Chemical industry: plastic particles, dye material, rubber powder, organic bulk material......
Other industry: small parts, mineral powder, herbs......

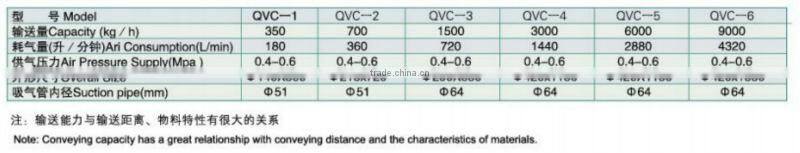

5. Specifications:
