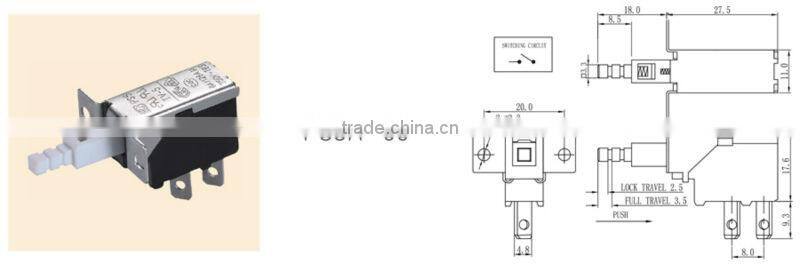

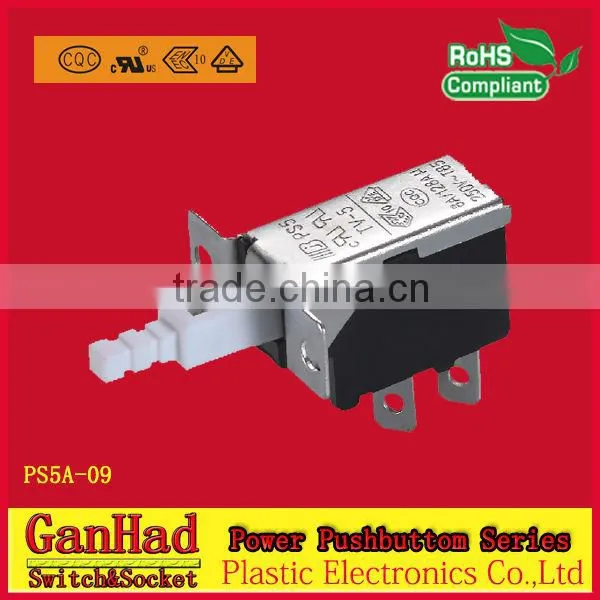

TV-5 power pushbutton switch

Specifications

1.TV-5 power pushbutton switch
2. UL .cUL.VDE. ENEC approved
3. comply with ROHS/HF
4. Design as requirement

TV-5 power pushbutton switch :

 Specifications:

Rated  Load:                                8A /128A  250V AC

                                                     TV-5

Initial contact resistance:              50mΩ max.

Insulation resistance:                   100MΩ

Withstand voltage                       1500VAC for terminal to terminal 1 minute

                                                    3000VAC for terminal to body 1 minute

Mechanical life:                           100000 cycles

Electrical life                                10000 cycles

Switch for the environmental protection:

Terminals type:                           quick contact and soldering

Working temperature:                  ≤85°C

Working force:                             550±250gf

Main material:                             Body  PF

                                                    actuator PBT

                                                   Terminals and movable contact :Brass





...
