Help CenterPower Pushbutton Switch TV-5
Related Products
-
Vacuum Cleaner Pushbutton SwitchNegotiableMOQ: 1000 Pieces -
Pushbutton Switch for Vacuum CleanerNegotiableMOQ: 1000 Pieces
-
T120 Single Pole Push Button SwitchUS$ 0.5 - 1.2MOQ: 1000 Pieces
-
Superior Quality Electronic Cigarette Push ButtonUS$ 0.5 - 1.2MOQ: 1000 Pieces
-
Superior Quality Elevator Push Button SwitchUS$ 0.5 - 1.2MOQ: 1000 Pieces
Specifications
1.Power pushbutton switch TV-52. UL .cUL.VDE. ENEC approved
3. comply with ROHS/HF
4. Design as requirement

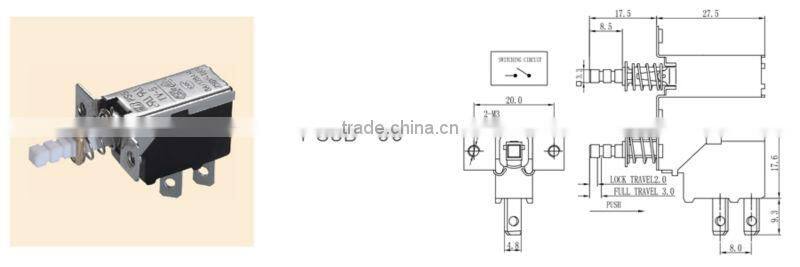

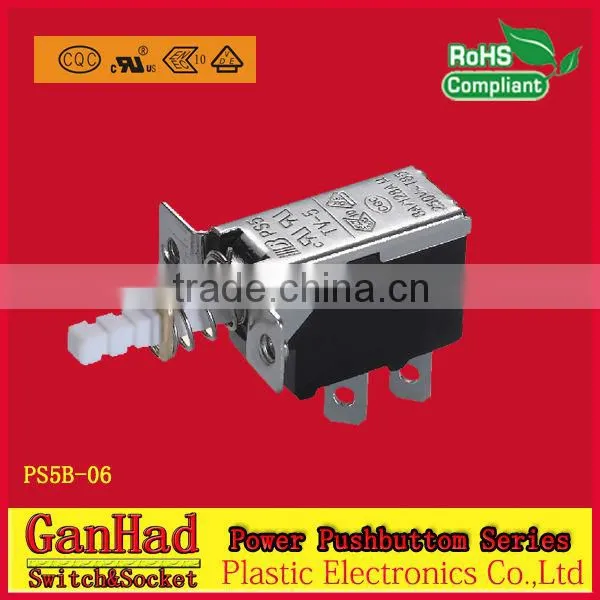

Power pushbutton switch TV-5 :
Specifications:
Rated Load: 8A /128A 250V AC
TV-5
Initial contact resistance: 50mΩ max.
Insulation resistance: 100MΩ
Withstand voltage 1500VAC for terminal to terminal 1 minute
3000VAC for terminal to body 1 minute
Mechanical life: 100000 cycles
Electrical life 10000 cycles
Switch for the environmental protection:
Terminals type: quick contact and soldering
Working temperature: ≤85°C
Working force: 550±250gf
Main material: Body PF
actuator PBT
Terminals and movable contact :Brass
...
Send Inquiry to This Supplier
