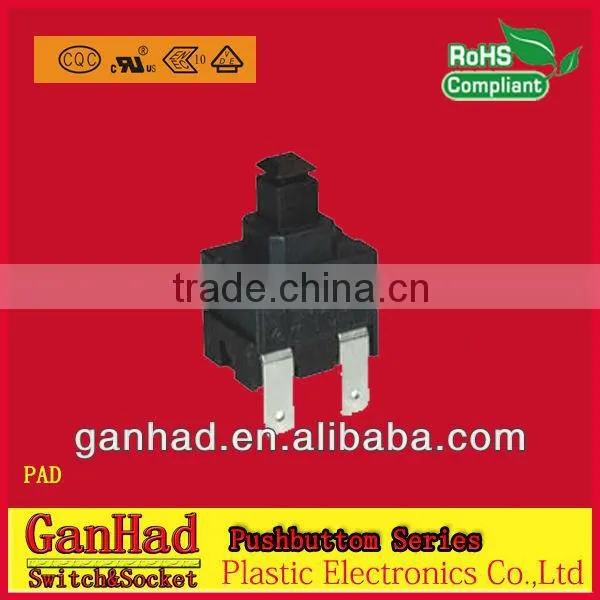

Help CenterVacuum Cleaner Pushbutton Switch
Related Products
-
Pushbutton Switch for Vacuum CleanerNegotiableMOQ: 1000 Pieces -
T120 Single Pole Push Button SwitchUS$ 0.5 - 1.2MOQ: 1000 Pieces
-
Superior Quality Electronic Cigarette Push ButtonUS$ 0.5 - 1.2MOQ: 1000 Pieces
-
Superior Quality Elevator Push Button SwitchUS$ 0.5 - 1.2MOQ: 1000 Pieces
-
PBS22E01 DC Push Button SwitchUS$ 0.15 - 0.25MOQ: 10000 Pieces
Specifications
1)Certificates:UL VDE ENEC CQC ROHSSpecifications:
Rated Load: 13A 250V AC
Initial contact resistance: 50mΩ max.
Insulation resistance: 100MΩ
Withstand voltage 1500VAC for terminal to terminal 1 minute
3000VAC for terminal to body 1 minute
Mechanical life: 100000 cycles
Electrical life 10000 cycles
Switch for the environmental protection:
Terminals type: quick contact and soldering
Working temperature: ≤85°C
Working force: 550±250gf
Main material: Body: PA66
Terminals and movable contact :Brass
...
