Power Push Button Switch
- ShenZhen OR HongKong
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | GanHad | |

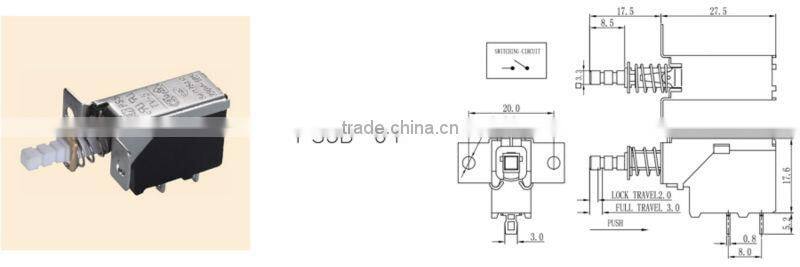

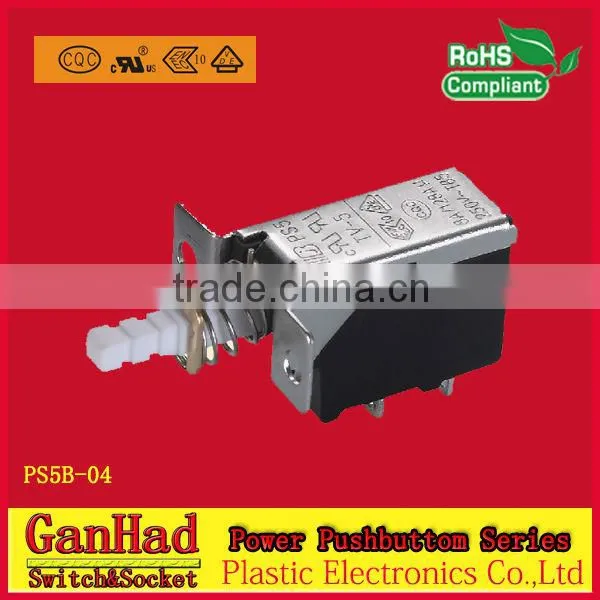

| Model Number | PS5B-04 | Protection Level | TV-5 | |
| Max. Current | 8A/128A | Max. Voltage | 250V AC |
Product Description
Specifications
1. Power push button switch2. UL .cUL.VDE. ENEC approved
3. comply with ROHS/HF
4. Design as requirement
Specifications:
Rated Load: 8A /128A 250V AC
TV-5
Initial contact resistance: 50mΩ max.
Insulation resistance: 100MΩ
Withstand voltage 1500VAC for terminal to terminal 1 minute
3000VAC for terminal to body 1 minute
Mechanical life: 100000 cycles
Electrical life 10000 cycles
Switch for the environmental protection:
Terminals type: quick contact and soldering
Working temperature: ≤85°C
Working force: 550±250gf
Main material: Body PF
actuator PBT
Terminals and movable contact :Brass
...
