Help CenterCat6 Cable UTP Network Cable
Related Products
Specifications
1.cat6 cable UTP network cable2.unshielded: 4pairs
3.Copper materials
4.4 pairs two twisted
5.305meter,Factory price

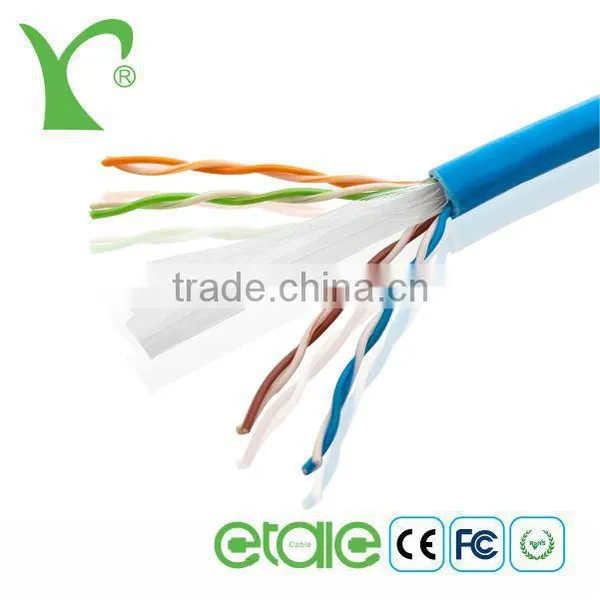

cat6 cable UTP network cable
Specifications
Description:
Specification: 4P
AWG: 24awg,26awg,28awg
Rated Temperature: 60°C or 75°C
Unshielded twisted pairs:
Conductor: 26AWG or 24AWG Stranding or Solid Bare copper
Insulation: HD-PE
Outer Jacket: PVC or LSNH
Inner Jacket: HD-PE
Impedance:100±15%Ω at 1~100MHz
Reference standard: YD/T1019-2001.ISO/IEC11801.ANSI/TIA/EIA-568B,UL 444
Print Legend: CM or CMR
Features:
1.Al-Foil Shield Reduces the Interference and Data Loss
2.Fast and Reliable Connection
3.Twisted Pairs with Bright Color for Easy Recognition
4.Ripcord and Footmark for Convenient Use
5.Smooth Jacket for Easy Pulling in Tight Space
6.Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement
Applications:
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
Insulation:
Material: HDPE and FRPE
Diameter: 0.924±0.005mm
Average thickness: 0.212mm
Minimum point thickness: 0.2095mm
Conductor:
Material: solid bare copper
Number of pairs: 4 pairs
AWG: 24awg
Conductor diameter: 0.6MM
