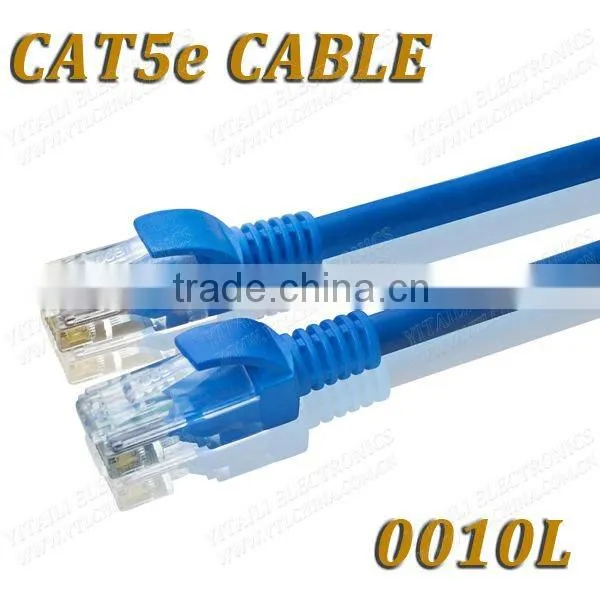

Help CenterNetwork Cable Cat5e
Related Products
Specifications
1)Model: Cat 5e network cable2)PVC or LSOH jacket cable
3)High quality, low price
4)PE insulation cat 5e networking cable
High performance Cat5e lan cable/network cable
Specification
1.Specification :4P
2.Rated Temperature: 60°C or 75°C
3.Unshielded twisted pairs:
4.Conductor:26AWG or 24AWG Stranding or Solid Bare copper
5.Insulator:HD-PE
6.Unrip rope:optional
7.Jacke: PVC) or LSNH
8.Impedance:100±15%Ω at 1~100MHz
9.Reference Standard: YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,UL 444
10.Flame Retardancy Standard:Passed CM or CMR
Feature
1.Fast and reliable connection
2.Twisted pairs with bright color for easy recognition
3.Ripcord and foot-mark for convenient use
4.Smooth jacket for easy pulling in tight space
5.Colors: Light gray, blue, white or as per customer's requirements
6.Conductor:Copper,CCA,CCS 0.45 to 0.52mm 24AWGor 26AWG etc
7.Insulator: HDPE/ PE
8.Jacket: PVC, LSZH PVC
Applications:
1.Computer network cabling project
2.Broadband network communication
3.Digital ISDN and ATM 155Mbps network
4.Ethernet network
5.Audio and data transmission
Packing: 305m/carton
Cable Assembly Specification
Shape |
Conductor |
Insulator |
Core No. |
Jacket |
||||
AWG |
Specification (mm) |
Material |
Thickness (mm) |
Material |
Thickness (mm) |
OD (mm) |
||
Round |
26 |
1/0.404 |
HD-PE |
0.18 |
4P |
PVC or LSNH |
0.55 |
4.8 |
7/0.16 |
HD-PE |
0.18 |
4P |
PVC or LSNH |
0.55 |
5.0 |
||
24 |
1/0.511 |
HD-PE |
0.18 |
4P |
PVC or LSNH |
0.55 |
5.4 |
|
7/0.203 |
HD-PE |
0.18 |
4P |
PVC or LSNH |
0.55 |
5.5 |
||
|
Flat (off-standard) |
30 |
7/0.10 |
HD-PE |
0.13 |
4P |
PVC |
0.30 |
1.75*6.2 |
28 |
7/0.127 |
HD-PE |
0.13 |
4P |
PVC |
0.30 |
1.90*7.0 |
|
24 |
7/0.203 |
HD-PE |
0.18 |
4P |
PVC |
0.50 |
3.0*9.0 |
|
