Help CenterC10 Series 10-15dBm Cell Phone Dual Band Repeater/ Wide Band
Related Products
-
C10 Series 10-20dBm Single Wide Band Cell Phone RepeaterNegotiableMOQ: 10 Units -
C10H Series 10-15dBm Cell Mini Dual Wide Band RepeaterNegotiableMOQ: 10 Sets
-
Amplitec C10H Series 10-15dBm Cell Mini Single Wide Band RepeaterNegotiableMOQ: 10 Sets
-
C10G Series 10dBm Cell Mini Single Wide Band RepeaterNegotiableMOQ: 10 Sets
-
W23S Frequency Custom Band Selective Mobile Signal Repeater With LCDNegotiableMOQ: 5 Pieces

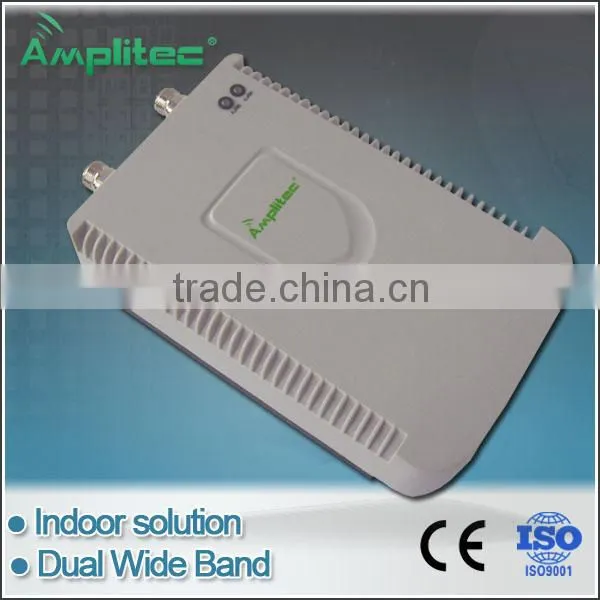

Product Model: C10 Series ( GSM+DCS, GSM+WCDMA, CDMA+PCS, CDMA+WCDMA )
- Provide quick coverage solution for small signal weak & block zones, Decreases missed or dropped calls.
- Compact size, elegant design, easy install.
- Low consumption, low interference to BTS, high linear design.
- Reduce cellphone transmit pwoer and radiation, extend cellphone battery life.
- LED indicates power and working status.
- ALC Circuit can limit stable output power to ensure steady Cell phone signal coverage .
- Cover about 200~4000 square meters mobile signal coverage.
- Dual Band for GSM+DCS, GSM+WCDMA, CDMA+PCS, CDMA+WCDMA e .
- Perfect Indoor cell phone Repeater solution of signal extender for home, office, bars, cafes, small public areas etc.
2) AC power cord(EU standard/ US standard/UK standard/ SA standard/China standard, etc.) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
- Donor antenna: 5.5dBi Mini Panel Antenna with 10 meters cables(length can be customized),
-
Service antenna:2.5dBi Mini Whip Antenna (2dBi@824-960MHz)
or Omni Ceiling Antenna (2dBi@824-960MHz, 4.7dBi@1710-2500MHz) - Cables with Connectors(length can be customized)
|
|
|
| Donor Antenna | Service Antenna | Cabe1s |
-
Frequency:
system UPlink
(MHz)DownLink
(MHz)C10-GD(01) GSM: 890-915
DCS: 1710-1775
GSM: 935-960
DCS: 1805-1870
C10-GW GSM: 890-915
WCDMA: 2110-2170
GSM: 935-960
WCDMA: 2110-2170
C10-CP CDMA or GSM850: 824-849
PCS: 1850-1900
CDMA or GSM850: 869-894
PCS:1930-1980
C10-IP IDEN: 806-824
PCS: 1850-1900
IDEN: 851-869
PCS: 1930-1980
C10-ED EGSM: 880-915
DCS: 1710-1775
EGSM: 925-960
DCS: 1805-1870
- Output Power: 10-20dBm
- Power Consumption: <= 15W
- Gain: 60-65dBm
- RF Connector: N-Female
- Weight: <=1.5kg
-
Size: 209 * 133 * 41 mm
(8.23 * 5.23 * 1.61 inch) - Environment condition: IP40
Amplitec Corporation, a manufacturer production since 2005, is in the forefront of Wireless revolution. With solid track record of successful development and deployment of advanced radio communication technologies, Amplitec is enabling operators worldwide for transition to a phenomenon of "seamless coverage".
Amplitec develops reliable indoor and outdoor coverage and optimization mobile signal repeater and booster's solutions for offices, restaurants, hotels, commercial centers, countryside, residential areas,tourist resorts, and stadiums on various GSM 850, GSM 900, GSM 1800, PCS 1900, CDMA 800 PCS 1900, IDEN, EGSM networks as well as WCDMA, 3G and TD-SCDMA systems.
Product: C10 Series 10-15dBm Cell phone Dual Wide Band Repeater. More detail please visit our official website:
