C10H Series 10-15dBm cell Mini Dual Wide Band Repeater
• Product Introduction
Product Name: C10H Series 10-15dBm cell Mini Dual Wide Band Repeater
Product Model: C10H Series Repeater(GSM+DCS, GSM+WCDMA, CDMA+PCS, CDMA+WCDMA )
Product Model: C10H Series Repeater(GSM+DCS, GSM+WCDMA, CDMA+PCS, CDMA+WCDMA )
• Product Feature
- Provide quick coverage solution for weak & block mobile signal zones, reduce drop/off calls, improve communication quality.
- Compact size, elegant design, easy install.
- Low consumption, low interference to BTS, high linear design.
- Reduce cellphone transmit pwoer and radiation, extend cellphone battery life.
- LED indicates power and working status.
- Suit for dual system cover simultaneous.
- MGC (Manual Gain Control) function desgin to ensure the GSM mobile signal coverage more flexible.
- Apply to approximate 200~500 square meters mobile signal coverage.
- Dual Band for GSM+DCS, GSM+WCDMA, CDMA+PCS, CDMA+WCDMA etc.
- Perfect Indoor Repeater solution of mobile signal extender.

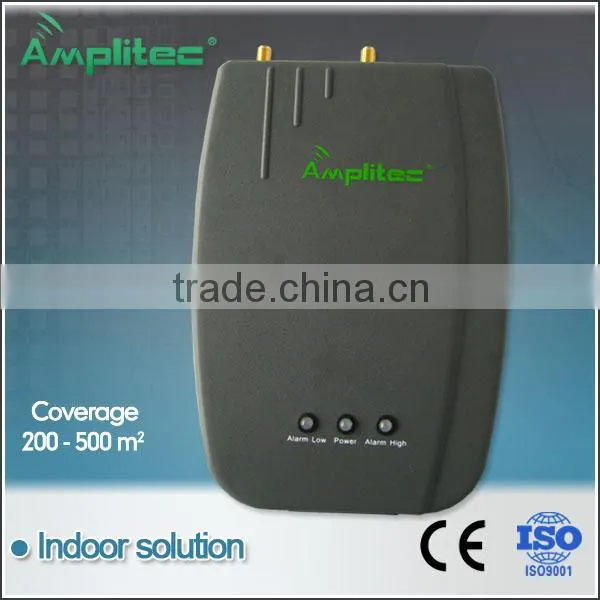

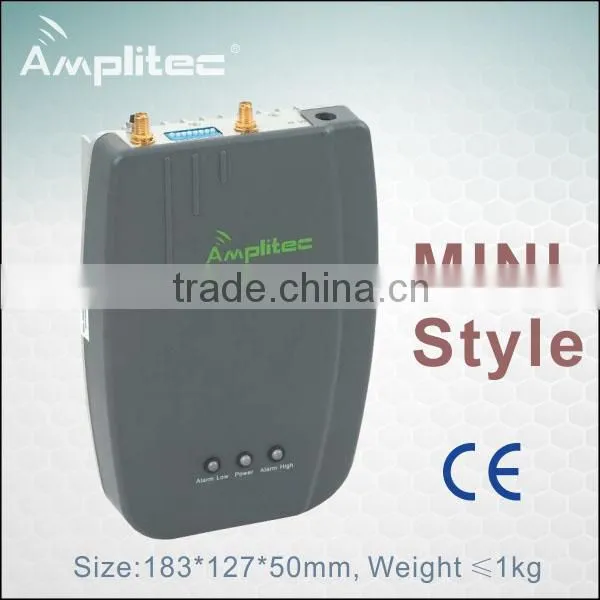

• Product Pictures
• Product Pictures
• Product Details
• Standard Package
1) AC90-260V,DC9V/2A power supply adapter 1PCS
2) AC power cord(EU standard/ US standard/UK standard/ SA standard/China standard, etc.) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
2) AC power cord(EU standard/ US standard/UK standard/ SA standard/China standard, etc.) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
• Recommand Optional Selection(Full kit of the repeater needs as below)
- Donor antenna: 5.5dBi Mini Panel Antenna with 10 meters cables(length can be customized),
-
Service antenna:2.5dBi Mini Whip Antenna (2dBi@824-960MHz)
or Omni Ceiling Antenna (2dBi@824-960MHz, 4.7dBi@1710-2500MHz) - Cables with Connectors(length can be customized)
|
|
|
| Donor Antenna | Service Antenna | Cabe1s |
• Specification
-
Frequency:
Model system UPlink
(MHz)DownLink
(MHz)C10H-GD GSM+DCS GSM: 890-915
DCS:1710-1775GSM:890-915
DCS:1805-1870C10H-GW GSM+WCDMA GSM: 890-915
WCDMA:1920-1980GSM:890-915
WCDMA:2110-2170C15H-GD(01) GSM+DCS GSM: 890-915
DCS:1710-1775GSM:890-915
DCS:1805-1870C10H-CP CDMA800+PCS CDMA:824-848
PCS:1850 - 1900CDMA:869-894
PCS:1930 ~ 1980C10H-CP GSM850+PCS GSM 850:824-848
PCS:1850 - 1900GSM 850:869-894
PCS:1930 ~ 1980 - Output Power: 10-15dBm
- Power Consumption: <= 10W
- Gain: 60dBm
- RF Connector: SMA-Female
- Weight: <=1kg
- Size: 183 * 127 * 50 mm, (7.21 * 5 * 1.97 inch)
- Environment condition: IP40
• About Amplitec
Amplitec Corporation, a manufacturer production since 2005, is in the forefront of Wireless revolution. With solid track record of successful development and deployment of advanced radio communication technologies, Amplitec is enabling operators worldwide for transition to a phenomenon of "seamless coverage".
Amplitec develops reliable indoor and outdoor coverage and optimization mobile signal repeater and booster's solutions for offices, restaurants, hotels, commercial centers, countryside, residential areas,tourist resorts, and stadiums on various GSM 850, GSM 900, GSM 1800, PCS 1900, CDMA 800 PCS 1900, IDEN, EGSM networks as well as WCDMA, 3G and TD-SCDMA systems.
• Production Capacity
• World Exhibitions
Product: C10H Series 10-15dBm cell Mini Dual Wide Band Repeater. More detail please visit our official website:
