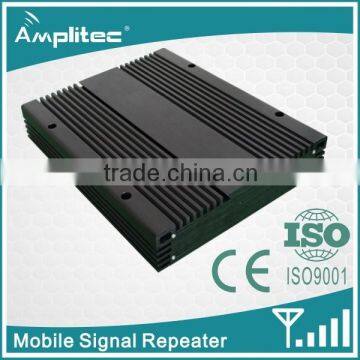

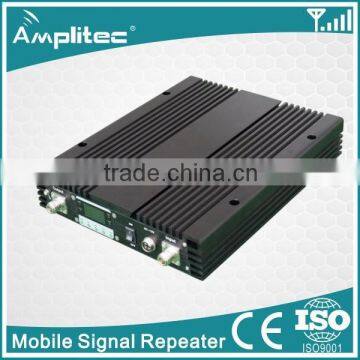

W23S Frequency Custom Band Selective Mobile Signal Repeater with LCD
Product Model: W23S Series
- Human Machine Interaction, the display shows very clearly of all display devices and the button function are more intuitively and faster.
- Low power consumption, low interference.

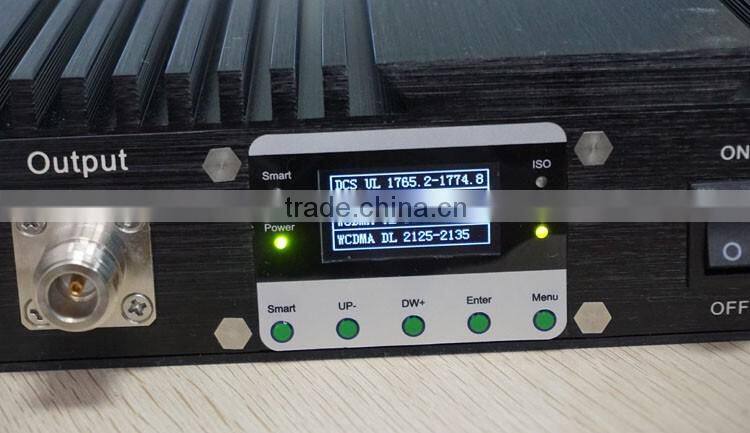

- LCD design to show working frequency, gain, output power & signal intensity etc.
- ALC Circuit can limit stable output power to ensure steady signal coverage.
- MGC (Manual Gain Control) function desgin to ensure the mobile signal coverage more flexible.
- Apply to approximate 1500~4000 square meters mobile signal coverage.
- Dual band for 850MHz(GSM/UTMS) & 1900MHz(PCS), 900Mhz(GSM) & 2100MHz(WCDMA), EGSM & WCDMA, GSM 900 &1800MHz
- Perfect Indoor Repeater solution of mobile signal Repeater.
2) AC power cord(EU standard/ US standard/UK standard/ SA standard/China standard, etc.) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
- Donor antenna: Log Periodic Dipole Antenna
- Service antenna: Omni Ceiling Antenna (2dBi@824-960MHz, 4.7dBi@1710-2500MHz)
- Cables with Connectors(length can be customized)
-
Frequency:
Model system UPlink
(MHz)DownLink
(MHz)CDMA GSM 850 (CDMA 800) 824~849 869~894 GSM GSM 900 890~915 935~960 DCS GSM/ LTE 1800 1710~1785 1805~1880 WCDMA UTMS 2100Mhz 1920~1980 2110~2170 EW EGSM/WCDMA 880~915/ 1920~1980 925~960/ 2110~2170 GW GSM 900/ WCDMA 890~915/ 1920~1980 935~960/ 2110~2170 GD GSM 900/ 1800 890~915/ 1710~1785 935~960/ 1805~1880 CW GSM 850 (CDMA 800)/
WCDMA824~849/ 1920~1980 869~894/ 2110~2170 CP GSM 850 (CDMA 800)/
PCS 1900824~849/ 1850~1910 869~894/ 1930~1990 - Output Power: 20dBm
- Power Consumption: <= 30W
- Gain: 70dBm
- RF Connector: N-Female
- Environment condition: IP40
Amplitec Corporation, a manufacturer production since 2005, is in the forefront of Wireless revolution. With solid track record of successful development and deployment of advanced radio communication technologies, Amplitec is enabling operators worldwide for transition to a phenomenon of "seamless coverage".
Amplitec develops reliable indoor and outdoor coverage and optimization solutions
of mobile signal repeaters and boosters for offices, restaurants, hotels, commercial centers, countryside, residential areas,tourist resorts, and stadiums on various GSM 850, GSM 900, GSM 1800, LTE 1800/2600, PCS 1900, CDMA 800 PCS 1900, IDEN, EGSM networks as well as WCDMA, 2G, 3G, LTE 4G and TD-SCDMA systems.
Amplitec attended the personal and famous telecom exhibtion in every year.
We have more experience to service the world clients in the mobile signal booster field.
| ||
Great variety of products for mobile signal Booster, with different application solutions |
Strong R&D team, and constantly to meet the needs of the network |
10 years of experience and high-quality products and service assurance. |
Thank you for browsing our products.
W23S Frequency Custom Band Selective Mobile Signal Repeater with LCD.
Amplitec will be consistent to provide our clients the superior products and service.
