Amplitec C10H Series 10-15dBm Cell Mini Single Wide Band Repeater
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Amplitec
Model Number:
C10H Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangdong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C10G Series 10dBm Cell Mini Single Wide Band RepeaterNegotiableMOQ: 10 Sets -
W23S Frequency Custom Band Selective Mobile Signal Repeater With LCDNegotiableMOQ: 5 Pieces
-
GSM WCDMA 3G 4G LTE Optical Long Distance Mobile Signal Transmitted Fiber RepeaterNegotiableMOQ: 1 Unit
-
Fiber Optical Transmitted Mobile Signal 2G 3G LTE 4G IBS Large Coverage Solution MDAS RepeaterNegotiableMOQ: 1 Unit
-
Old Mobile Signal 2G 3G IBS Solution Updated With 700 1800 2600Mhz FDD 4G LTE MIMO RepeaterNegotiableMOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
Amplitec
Model Number
C10H Series

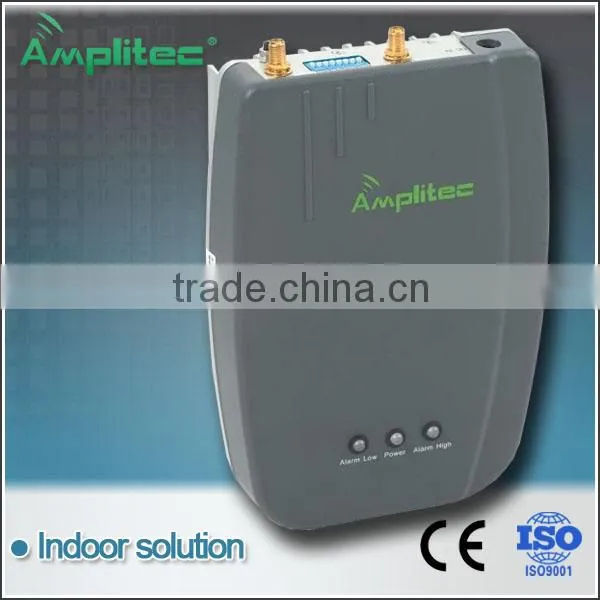

Amplitec C10H Series 10-15dBm cell Mini Single Wide Band Repeater
• Amplitec Repeater Introduction
Product Name: Amplitec 10 - 15 dBm Single Wide Band Repeater
Product Model: C10H Series Repeater(CDMA/ GSM/ DCS/ PCS/ WCDMA/ AWS)
Product Model: C10H Series Repeater(CDMA/ GSM/ DCS/ PCS/ WCDMA/ AWS)
• Product Feature
- Provide quick coverage solution for weak & block mobile signal zones, reduce drop/off calls, improve communication quality.
- Compzct size, elegant design, easy install.
- Low consumption, low interference to BTS, high linear design.
- Reduct cellphone transmit pwoer and radiation, extend cellphone battery life.
- LED indicates power and working status.
- MGC (Manual Gain Control) function desgin to ensure the GSM mobile signal coverage more flexible.
- Apply to approximate 200~500 square meters mobile signal coverage.
- Single Band for GSM 900MHz, CDMA 800MHz, GSM 850MHz, DCS 1800MHz, PCS 1900MHz and WCDMA(3G) 2100MHz.
- Perfect Indoor Repeater solution of mobile signal extender.
• Signal Repeater Product Pictures
• Product Pictures
• Product Details
• Standard Package
1) AC90-260V,DC9V/2A power supply adapter 1PCS
2) AC power cord(EU standard/ US standard/UK standard/ SA standard/China standard, etc.) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
2) AC power cord(EU standard/ US standard/UK standard/ SA standard/China standard, etc.) 1PCS
3) Installation kit 1PCS
4) User manual 1PCS
• Recommand Optional Selection(Full kit of the repeater needs as below)
- Donor antenna: 5.5dBi Mini Panel Antenna with 10 meters cables(length can be customized),
-
Service antenna:2.5dBi Mini Whip Antenna (2dBi@824-960MHz)
or Omni Ceiling Antenna (2dBi@824-960MHz, 4.7dBi@1710-2500MHz) - Cables with Connectors(length can be customized)
|
|
|
| Donor Antenna | Service Antenna | Cabe1s |
• Specification
-
Frequency:
Model system UPlink
(MHz)DownLink
(MHz)C10H-IDEN IDEN 806-824 851-869 C10H-CDMA CDMA
GSM850824-848 869-894 C10H-GSM GSM 890-915 935-960 C10H-DCS DCS 1710-1785 1805-1880 C10H-PCS PCS 1850.5-1909.5 1930.5-1989.5 C10H-WCDMA WCDMA
(UTMS)1920-1980 2110-2170 - Output Power: 10-15dBm
- Power Consumption: <= 10W
- Gain: 60dBm
- RF Connector: SMA-Female
- Weight: <=1kg
- Size: 183 * 127 * 50 mm, (7.21 * 5 * 1.97 inch)
- Environment condition: IP40
• About Amplitec
Amplitec Corporation, a manufacturer production since 2005, is in the forefront of Wireless revolution. With solid track record of successful development and deployment of advanced radio communication technologies, Amplitec is enabling operators worldwide for transition to a phenomenon of "seamless coverage".
Amplitec develops reliable indoor and outdoor coverage and optimization mobile signal repeater and booster's solutions for offices, restaurants, hotels, commercial centers, countryside, residential areas,tourist resorts, and stadiums on various GSM 850, GSM 900, GSM 1800, PCS 1900, CDMA 800 PCS 1900, IDEN, EGSM networks as well as WCDMA, 3G and TD-SCDMA systems.
• Production Capacity
• World Exhibitions
Product: Amplitec C10H Series 10-15dBm cell Mini Single Wide Band Repeater. More detail please visit our official website:
