Sitting Type 4-Wheel Electric Forklift Truck (CPD20E)

Sitting Type 4-Wheel Electric Forklift Truck (CPD20E) thumbnail-1
Sitting Type 4-Wheel Electric Forklift Truck (CPD20E) thumbnail-2
Sitting Type 4-Wheel Electric Forklift Truck (CPD20E) thumbnail-3
Sitting Type 4-Wheel Electric Forklift Truck (CPD20E) thumbnail-4
Sitting Type 4-Wheel Electric Forklift Truck (CPD20E) thumbnail-5
Sitting Type 4-Wheel Electric Forklift Truck (CPD20E) thumbnail-6

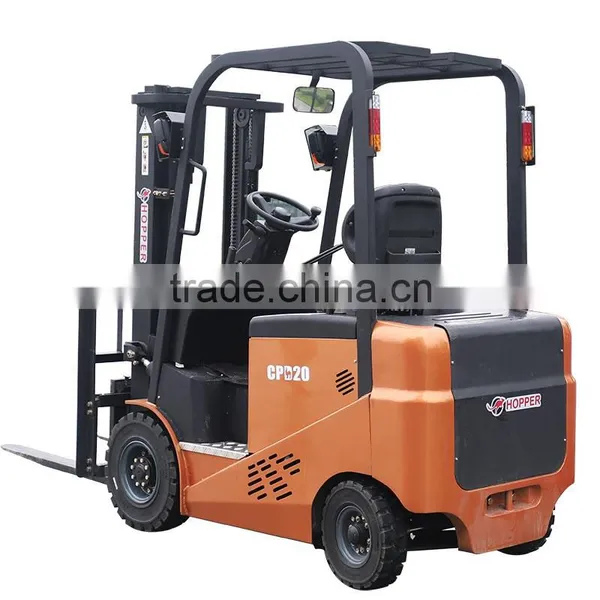

Sitting Type 4-Wheel Electric Forklift Truck (CPD20E) photo-1

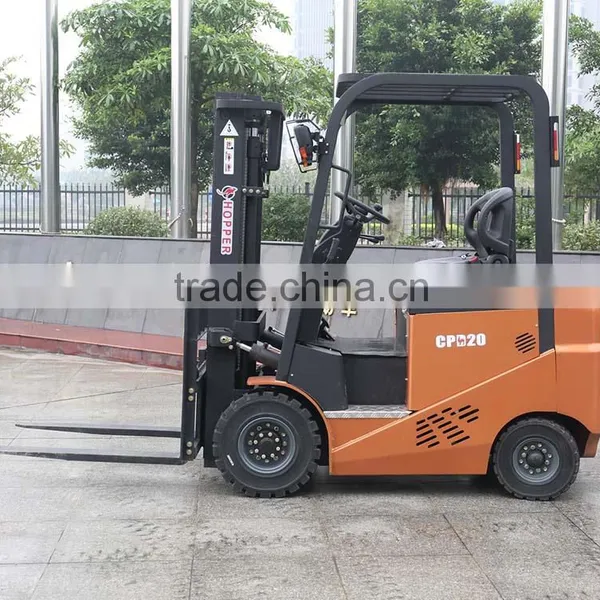

Sitting Type 4-Wheel Electric Forklift Truck (CPD20E) photo-2

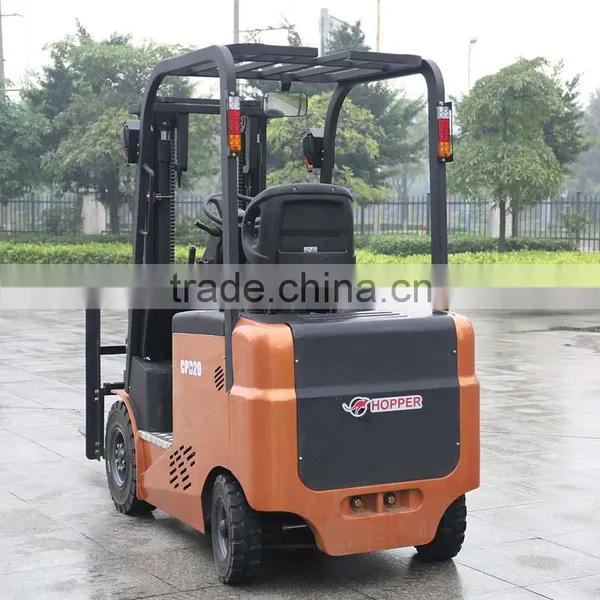

Sitting Type 4-Wheel Electric Forklift Truck (CPD20E) photo-3

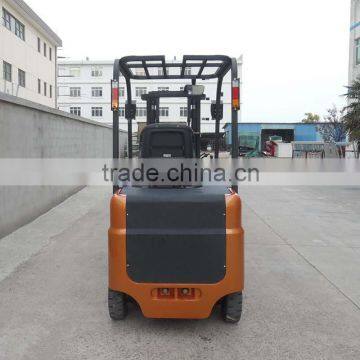

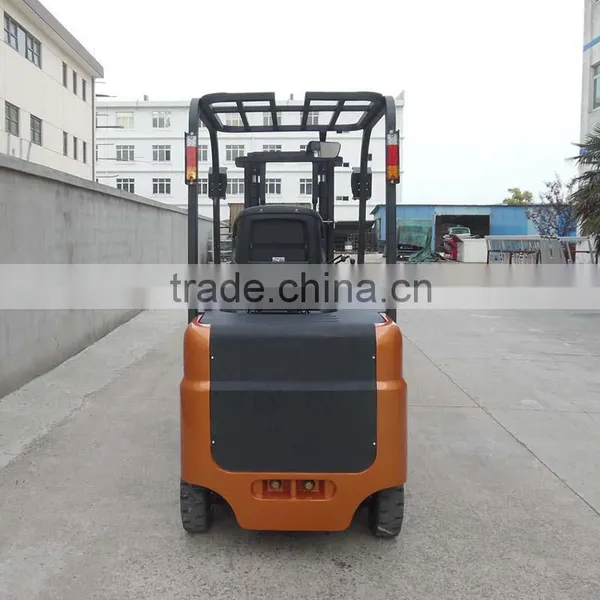

Sitting Type 4-Wheel Electric Forklift Truck (CPD20E) photo-4

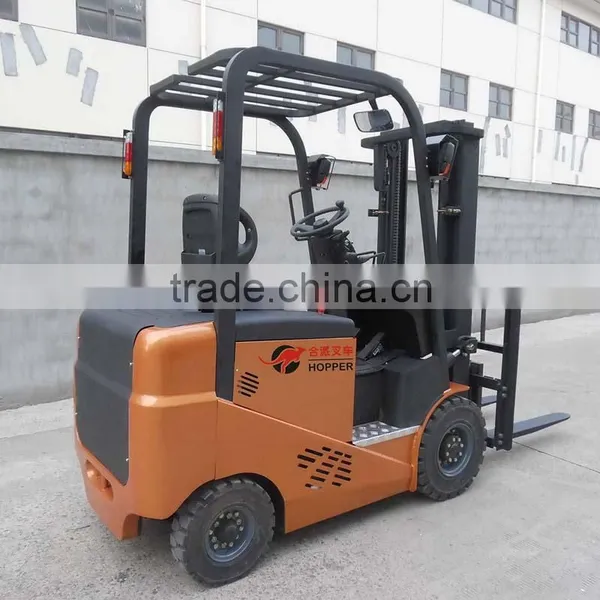

Sitting Type 4-Wheel Electric Forklift Truck (CPD20E) photo-5

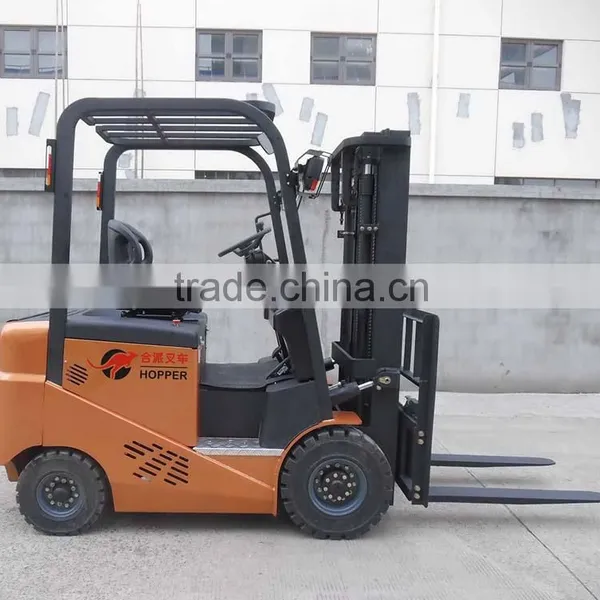

Sitting Type 4-Wheel Electric Forklift Truck (CPD20E) photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Marshell
Contact Supplier Request Quote Chat Now
Shenzhen Marshell Green Power Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name Marshell
Model Number CPD30
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 3000KG
Max. Lifting Height 3000mm
Min. Lifting Height 135/125mm
Fork Length 1105mm
Fork Width 1230
Overall Dimensions 3575*12302200mm L*W*H
Certification CE
After-sales Service Provided Overseas third-party support available

Sitting Type 4-Wheel Electric Forklift Truck (CPD20E)

Product Concept

   1 full exchange system control precision, smooth running, driving speed 15km / h, climbing up to 14%

     at full load, Lifting speeds up to 370mm / s
  2, high-performance hydraulic system, low noise, small vibration, high efficiency
  3,80V / 500Ah industrial battery, powerful lasting, most enterprises to meet the high frequency,

     high efficiency, demand for goods handling;
  4, overhead guard and body welding the overall structure, the overall strength.
  5, low noise gear pumps, multi-stage motor speed control, fall protection solenoid valves;

      built-in safety valve lift cylinder.
  6, suitable for indoor and outdoor operation, less demanding on the ground.

Operate Performance

  1, human-oriented design of the control handle, easy to operate hand movements, improving driving comfort;
  2, load sensing hydraulic steering system, lightweight, low noise, more effort;
  3, wide view mast design, the view is clear, lifting height of 3-6 meters.
  4, good regenerative braking process to avoid damage to the goods.

Safety performance

  1 controller with overvoltage, overcurrent protection features, high-temperature, short circuit;
  2, emergency off switch, you can quickly cut off the vehicle power supply
  3, lifting the bottom of the fuel tank explosion-proof valve is installed, immediate pipeline rupture,

      the door     frame is not rapid           decline
  4, intelligent design improves cornering stability of the vehicle deceleration when walking to avoid tipping

      cargo. (Optional)
  5, OPS driver's presence sensing system; When the driver leaves the position after the operation to

      cut off all operating functions, to avoid misuse brings security risks.

Sitting Type 4-Wheel Electric Forklift Truck (CPD20E)

Model   CPD15 CPD20 CPD25 CPD30
Load capacity/rated load                      Q(kg) 1500 2000 2500 3000
Overall length without fork L'(mm) 1990 2310 2310 2470
with fork L(mm) 3080 3400 3400 3575
Overall width              W(mm) 1070 1170 1170 1230
Height, mast lowered H1(mm) 1955 1990 1990 2080
Height of overhead guard(cabin) H4(mm) 2100 2150 2150 2200
Height, mast extended H2(mm) 3860 4030 4030 4145
Ground clearance, laden, below mast H5(mm) 100 110 110 125
Ground clearance,unladen/laden,centre of wheelbase H6(mm) 105 105 105 105
Front tread W3 (mm) 890 960 960 1000
Rear tread               W2 (mm) 920 950 950 980
Wheelbase                                L1(mm) 1250 1450 1450 1620
Load distance,centre of drive axle to fork        L2(mm) 415 470 470 475
Lift height                H(mm) 3000 3000 3000 3000
Free lift height                  H3(mm) 135 135 135 140
Mast tilt angle, front/rear    α/β(°)  6/12  6/12  6/12  6/12
Max.lift speed unladen mm/s 300 300 300 370
laden  mm/s 260 280 280 280
Max. travel speed unladen km/h 13 14 14 14
laden  km/h 12 13 13 13
Turning radius          R(mm 1850 2090 2090 2330
Aisle width for lengthways Pallets 1000x1000 mm 3460 3760 3760 4075
Pallets 1000x1200 mm 3590 3890 3890 4205
Max. gradability,laden % 15 15 15 15
Load centre distance                 c(mm) 500 500 500 500
Service weight(with battery) kg 2890 3950 4050 4980
Tyre Front   6.5-10-10PR 7.0-12-12PR 7.0-12-12PR 28×9-15-14PR
Rear   5.00-8-10PR 18×7-8-14PR 18×7-8-14PR 18×7-8-14PR
Motor Drive KW 8 11 11 15
Lift KW 10 12 12 13.5
Battery V/Ah 48/500 48/600 48/600 80/500
Type of drive control   AC AC AC AC
