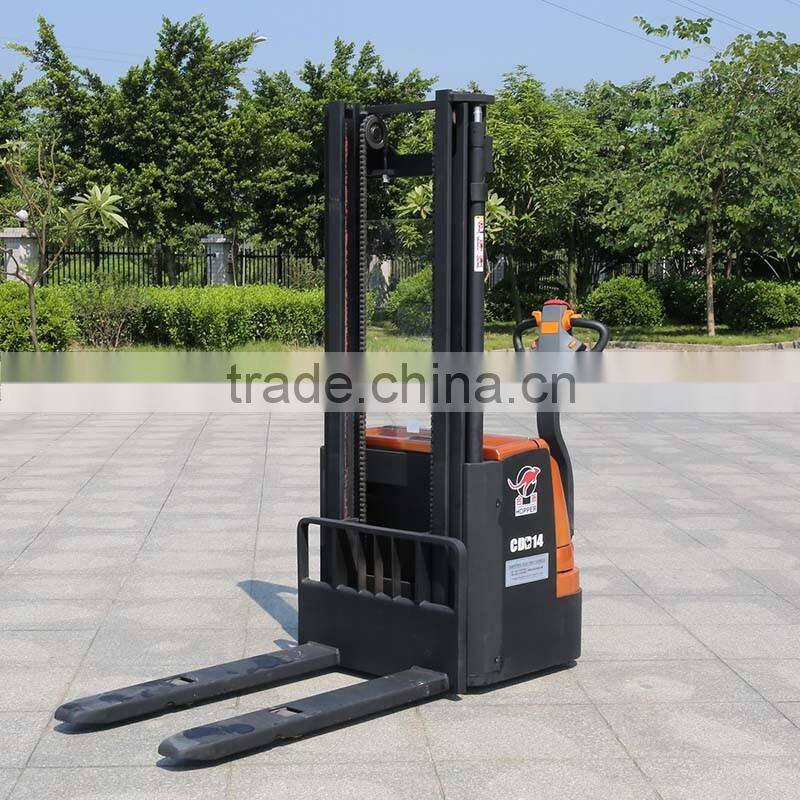

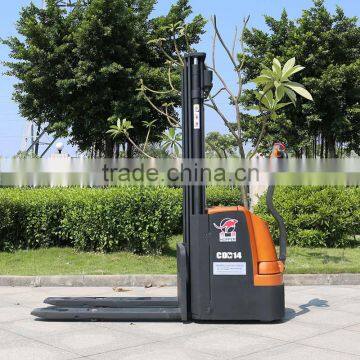

Electric Power Pallet Truck and Electric Stacker (CDD14)
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Marshell
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CE Certified Fully Powered Electric Pallet Stacker (CDD16)NegotiableMOQ: 1 Unit -
Automatic Washing Machine Cheap Mini Washing Machine (DQX5/5A)NegotiableMOQ: 1 Unit
-
Cable Type Single-Brush Ground Cleaning Machine Floor Scrubber (DQX5/5A)NegotiableMOQ: 1 Unit
-
Auto Washing and Drying Scrubber, Cleaning Machine (DQX5/5A)NegotiableMOQ: 1 Unit
-
Smart Electric Hand Push Type Floor Scrubber Machine (DQX5/5A)NegotiableMOQ: 1 Unit
Condition
New
Place of Origin
Shanghai, China
Brand Name
Marshell
Model Number
CDD14
Type
Powered Pallet Truck
Power Souce
AC Motor
Rated Loading Capacity
1600KG
Max. Lifting Height
3000mm
Min. Lifting Height
80mm
Fork Length
685mm
Fork Width
685mm
Overall Dimensions
2550x790x2070mm
Certification
CE
After-sales Service Provided
Overseas third-party support available
Electric Power Pallet Truck and Electric Stacker (CDD14)
Main configuration
1, maintenance-free ac drive system
2, electronic steering system
3, 24 v / 270 ah high-capacity lead-acid batteries
4, Curtis communication controller
5, import a two-speed hydraulic power unit
6, the side with quick replacement battery structure
7, a variety of specifications door frame to meet different customer needs
suitable mode
1, relatively flat cement or similar hard pavement
2, suitable for single pallet handling, stacking of the goods
3, suitable for high frequency and heavy load cargo handling, stacking
4, working time is about 5 hours
TIPS
Does not apply to contain flammable and explosive gas or dust
Electric Power Pallet Truck and Electric Stacker (CDD14)
| GENERAL SPECIFICATION: | ||||
| Load capacity | Q(kg) | 1400 | ||
| Load centre distance | c(mm) | 600 | ||
| Overall length | I1/I2(mm) | 1940 | ||
| Overall width | b1(mm) | 800 | ||
| Overall height | h6(mm) | 2065 | ||
| Fork height,lowered | h3(mm) | 85 | ||
| Max.lift height | h1(mm) | 3000 | ||
| Wheelbase | y(mm) | 1300 | ||
| Fork outside spacing | b2(mm) | 685 | ||
| Fork inside spacing | b4(mm) | 365 | ||
| Front tread | b3(mm) | 525 | ||
| Max.lift speed | unladen | mm/s | 160 | |
| laden | mm/s | 120 | ||
| Max. travelspeed | unladen | km/h | 5 | |
| laden | km/h | 4.5 | ||
| Turning radius | W1(mm) | 1470 | ||
| Max. gradability,laden | % | 5 | ||
| Max. gradability,unladen | % | 8 | ||
| Service weight(with battery) | kg | 1000 | ||
| Battery capacity | Ah | 210 | ||
| Battery voltage | V | 24 | ||
| Aisle width for lengthways | Pallets 1000x1000 | Ast(mm) | 1405 | |
| Pallets 1000x1200 | Ast(mm) | 2340 | ||
| Container quantity(1*20FT/40FT/40HQ) | pcs | 7pcs/14pcs/14pcs | ||
Electric Power Pallet Truck and Electric Stacker (CDD14)
