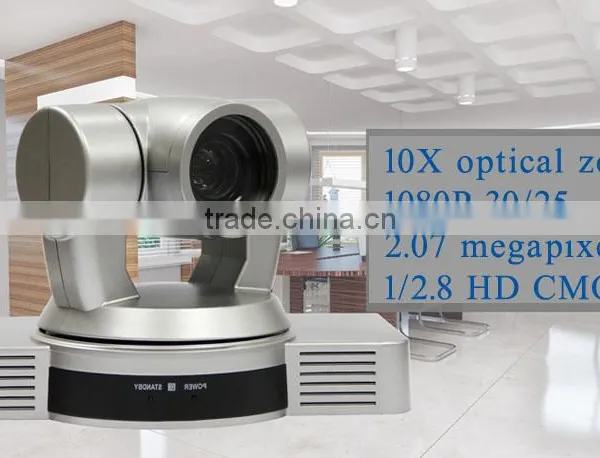

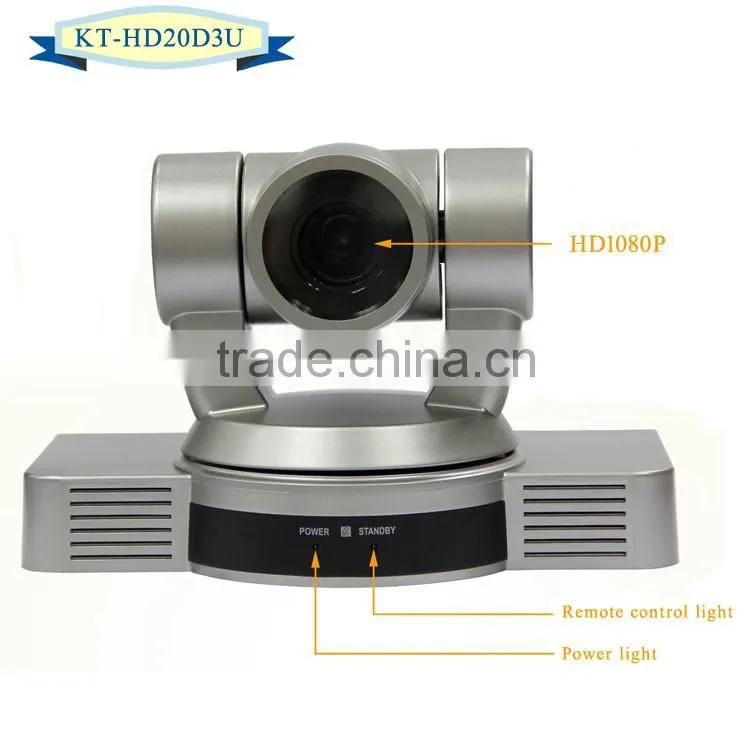

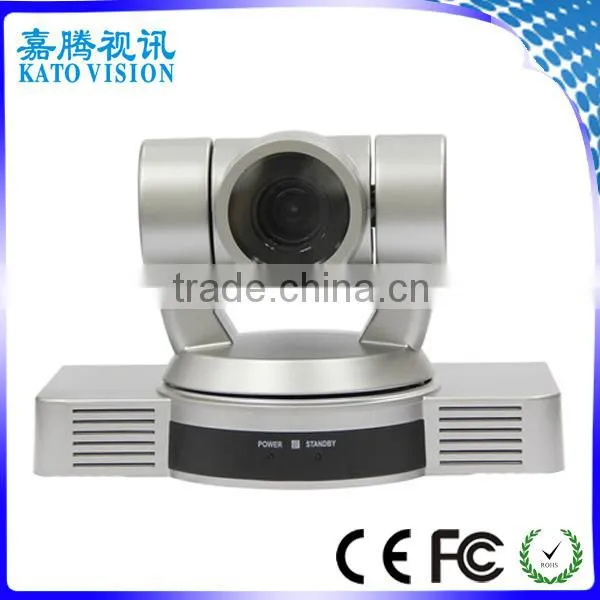

USB 3.0 10x Optical FULL HD Color Video PTZ conference system camera for hospital
Item No. |
KT-HD20D3U |
Image Sensor |
1/3’’ CMOS |
Effective Pixels |
2.07 Megapixels |
Resolution HD |
1080p20/15, 720p30/25 |
Signal System |
PAL/NTSC |
Lens |
10X optical zoom, f=4.4mm(wide angle end)~44.0 mm(far end) |
Horizontal View Angle |
50.6°(W)~5.5°(T) |
Focus System |
Auto/Manual |
Minimum Illumination |
0.1Lux |
Shutter Speed |
1/30~1/10,000s |
Gain |
Auto/Manual |
White Balance |
Auto/ Indoor/Outdoor/Manual |
Image Effect |
Full color/black and white/Electronic flip |
S/N Ratio |
≥50db |
Pan |
355°(max. speed:80°/s) |
Tilt |
-30° to +90° (max. speed: 60°/s) |
Preset Position |
9 preset positions by IR Remote, 255 preset positions by Keyboard |
Video Output HD |
USB3.0 |
Video Output SD |
No |

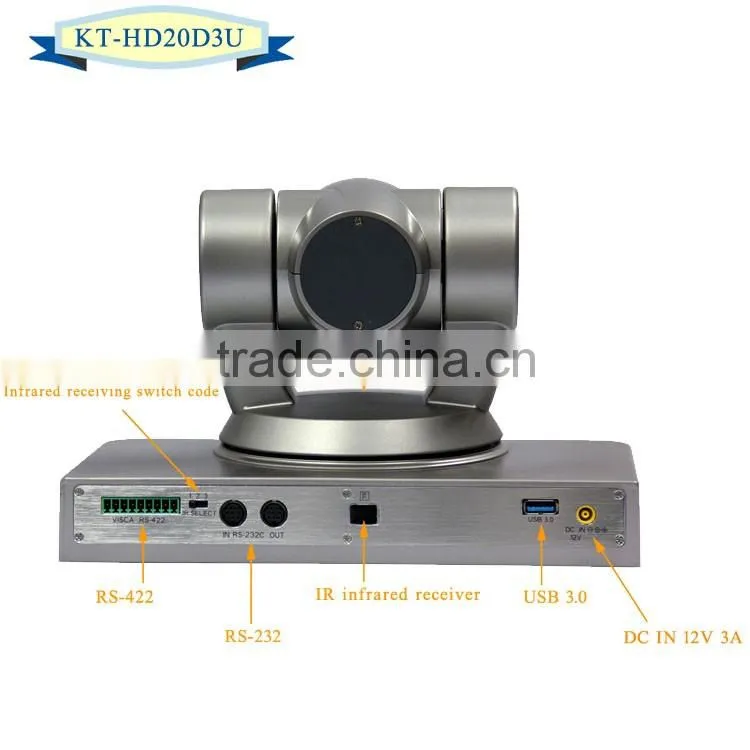

Control Protocol |
SONY VISCA, PELCO P/D |
Control Mode |
RS-232C, RS-422/485 |
Power |
12V DC(10.8~13.0V DC) |
Power Consumption |
Max. 30W(DC 12V) |
Operating Temperature |
0~40℃ |
Storage Temperature |
-20-60℃ |
Dimensions |
(L)262×(W)165×(H)157mm |
Weight |
1710g |
Color |
Silver White |

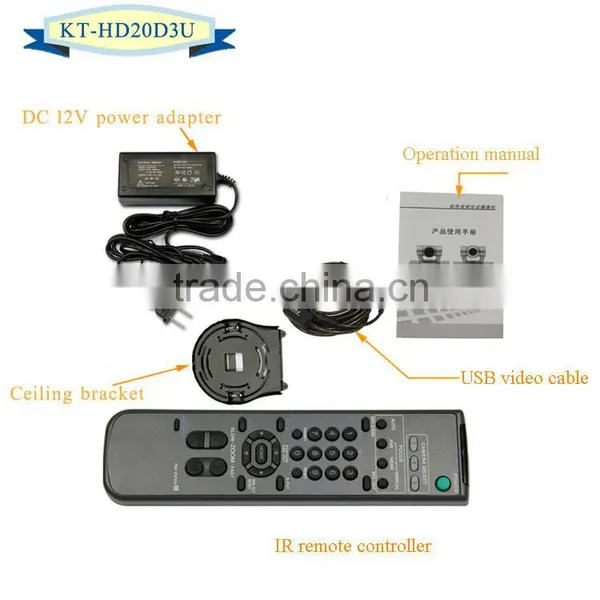

Accessories |
DC 12V power adapter, IR Remote, Operation manual, USB3.0 cable, Ceiling bracket |
Q&A
1)What is your minimum order quantity?
-- one full container at least 5sets each model. Sample order is acceptable.
2)Do you have products in stock?
--Some types of video conference camera have, and haven’t.It depend your order module.
3)What is your delivery terms?
--FOB to your country by DHL,Fedex through air.
Payment terms is T/T in advance, Western Union, Paypal ect.
4)When will you ship my order?
--Ordinary,once we get confirmation for payment,we will ship order within 1-3days.
5)The video confence camera doesn’t have the interface I need, what should I do?
--Yes, it might cannot meet your requirement. However, Talk to our sale, the interface we can add to conferencing camera with charging extra fees. We promised : All your need we will try our best to satified you.
6)Can I install the conference camera by myself?
--Of course,the conferencing camera is flexible to install. We supplied camera accompanied with DV 12V power adapter, IR controller, braket, operation menu, RS-232 cable and YPBPR cable.You can install by user manual or you can contact us in need.
7)How about warranty?
--Generally, modules for 1 year, and conference camera for 2 years.
Life-time provide technical consulting.
