Product Details
| Brand Name | KATA/OEM | Model Number | KT-HD20DU | |
| High Definition Support | 1080P (Full-HD) | Media Type | HDD / Flash Memory | |
| Optical Zoom | 10x - 20x | |||
| Color | Silver / Gray | Place of Origin | Guangdong, China |
Product Description

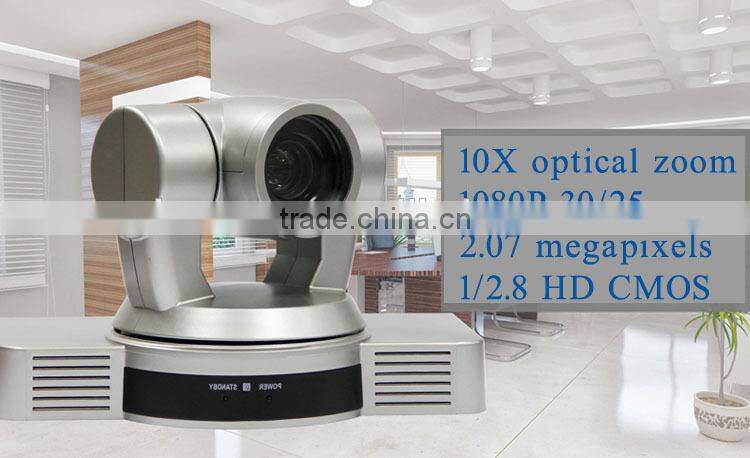

KATO Monitoring System hd video conference cameras built in video caputre card

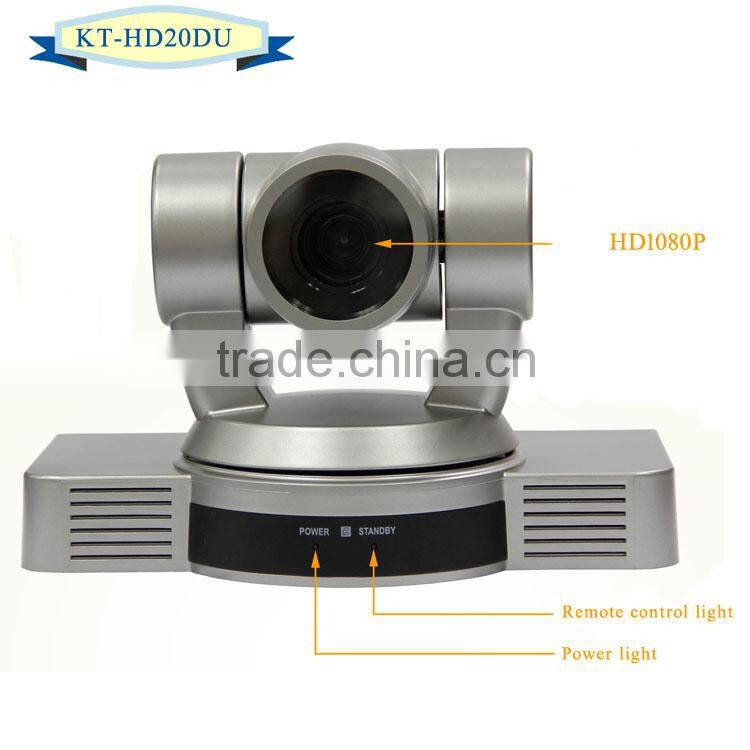

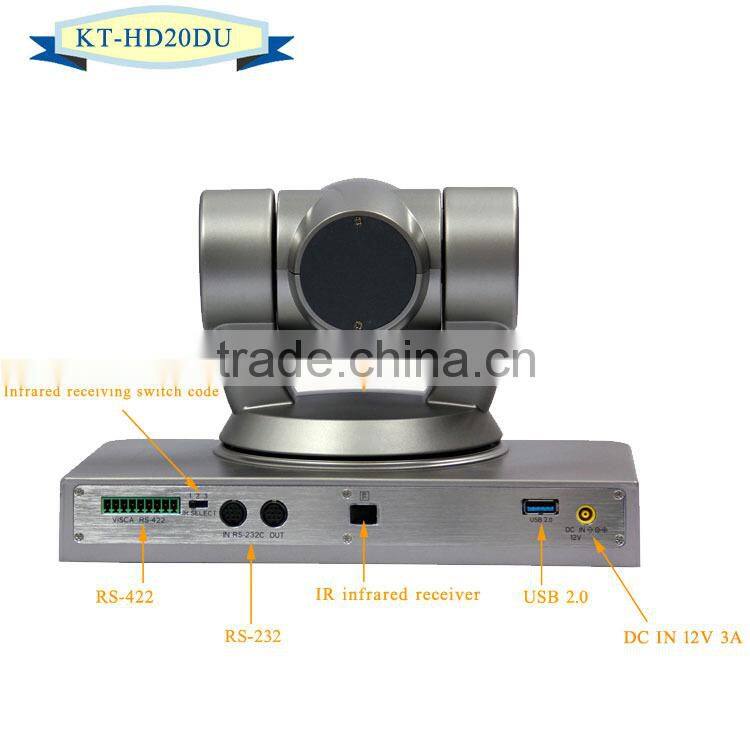

HD USB Video Conference Camera for PC( KT-HD20DU)
| HD USB Video Conference Camera for PC( KT-HD20DU) |
Item No. | KT-HD20DU |
Image Sensor | 1/2.8type CMOS |
Effective Pixels | 2.07 Mega pixels (16:9) |
Signal System HD | 1080i/60,1080i/50,1080p/30,1080p/25,720p/60,720p/50 NTSL,PAL |
Lens | 10X optical zoom f=4.4mm(wide angle)~44.0 mm(far-end),F1.8~F3.0 |
Horizontal Viewing Angle | 50.6°(W)~5.5°(T) |
Focus system | Auto/Manual |
Minimum Illumination | 1.2Lux (F1.8) |
Exposure Control | Auto/Manual |
Shutter Speed | 1/30~1/10,000s |
Gain | Auto/Manual |
White Balance | Auto/ Indoor/Outdoor/Manual |
Image Effect | Full color/black and white/Electronic flip |
S/N Ratio | ≥50db |
Pan | 355°(max. speed:80°/s) |
Tilt | -30° to + 180° (max. speed: 60°/s) |
Preset Position | Max. 255 preset position |
Video Output HD | YpbPr,HDMI,HD-SDI /USB |
SD | VBS |
control protocol | SONY VISCA,PELCO P/D |
control mode | RS-232C,RS-422/485 |
Power | 12V DC(10.8~13.0V DC) |
power dissipation | Max.30W(DC 12V/h) |
Operating Temperature | 0~40°C |
Storage Temperature | -10-60°C |
Dimensions | (L)135×(W)130×(H)143.7mm |
Weight | 768g |
Color | Silver gray |

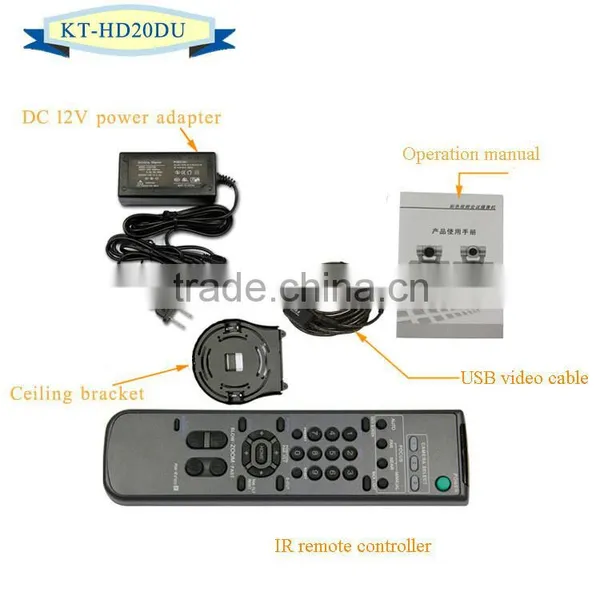

Supplied accessories | DC 12Vpower adapter,IRcontroller,Operation menu,RS-232Ccable,DVI conversion cable |
