Telemedicine USB Video Conference HD Camera 1080p zoom free video

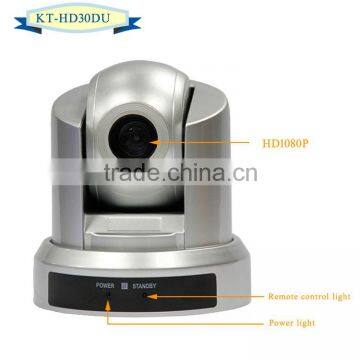

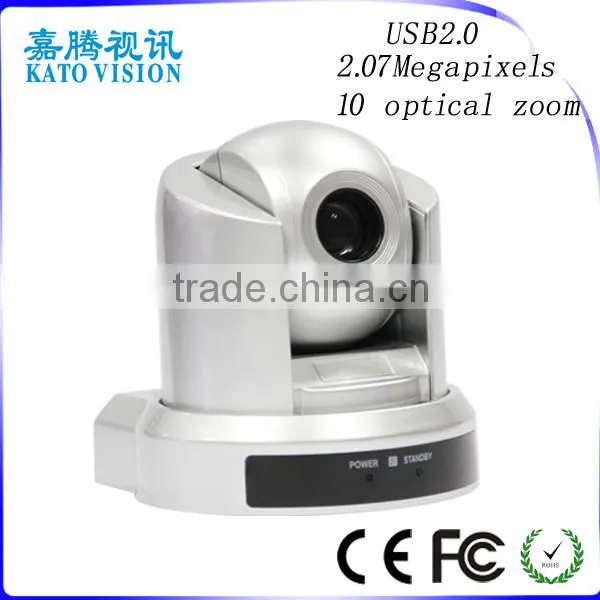

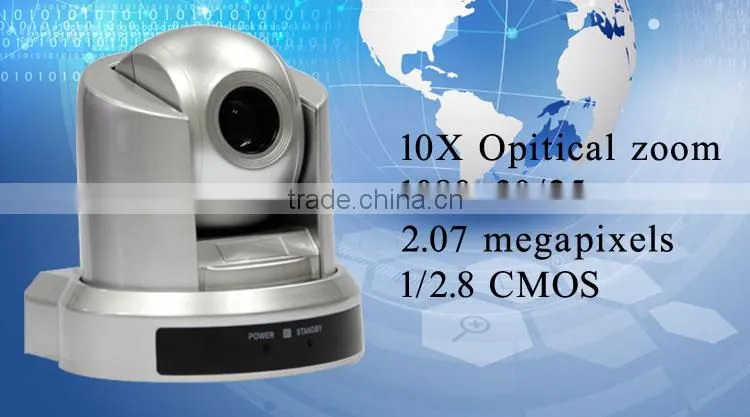

HD SDI PTZ Video Conferencing Camera (KT-HD30DU) Specification
Item No. | KT-HD30DU |
Image Sensor | 1/2.8 type CMOS |
Effective Pixels | 2.07 Mega pixels (16:9) |
Signal System HD | 1080p/30,1080p/25,720p/60,720p/50 NTSL,PAL |
Lens | 10X optical zoom f=4.4mm(wide angle)~44.0 mm(far-end),F1.8~F3.0 |
Horizontal Viewing Angle | 50.6°(W)~5.5°(T) |
Focus system | Auto/Manual |
Minimum Illumination | 1.2Lux (F1.8) |
Exposure Control | Auto/Manual |
Shutter Speed | 1/30~1/10,000s |
Gain | Auto/Manual |
White Balance | Auto/ Indoor/Outdoor/ Manual |
Image Effect | Full color/black and white/Electronic flip |
S/N Ratio | ≥50db |
Pan | 355°(max. speed:80°/s) |
Tilt | -30° to + 90° (max. speed: 60°/s) |
Preset Position | Max. 255 preset position |

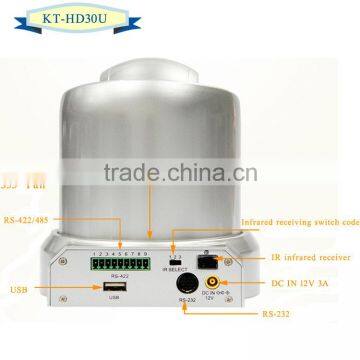

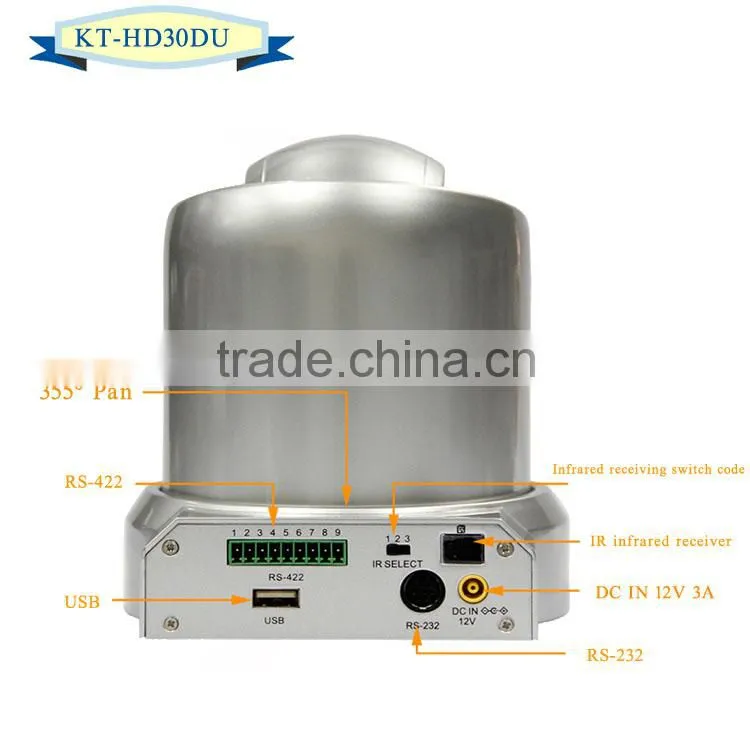

Video Output HD | USB |
control protocol | SONY VISCA,PELCO P/D |
control mode | RS-232C,RS-422/485 |
Power | 12V DC(10.8~13.0V DC) |
power dissipation | Max.30W(DC 12V/h) |
Operating Temperature | 0~40℃ |
Storage Temperature | -10-60℃ |
Dimensions | (L)135×(W)130×(H)143.7mm |
Weight | 768g |
Color | Silver gray |

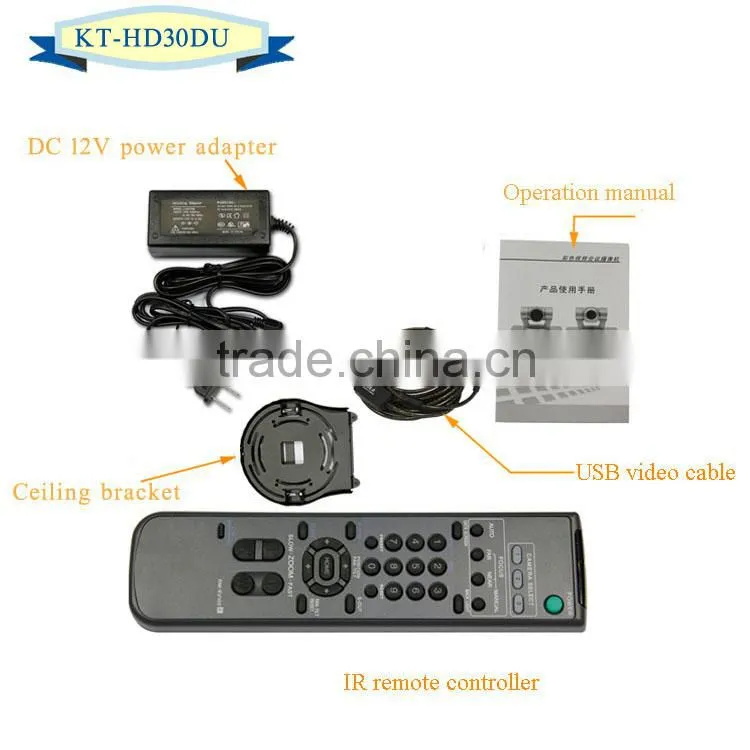

Supplied accessories | DC 12V power adapter,IR controller,Operation menu,RS-232C cable, usb |
Applications:
Q&A
1)What is your minimum order quantity?
-- one full container at least 5sets each model. Sample order is acceptable.
2)Do you have products in stock?
--Some types of video conference camera have, and haven’t.It depend your order module.
3)What is your delivery terms?
--FOB to your country by DHL,Fedex through air.
Payment terms is T/T in advance, Western Union, Paypal ect.
4)When will you ship my order?
--Ordinary,once we get confirmation for payment,we will ship order within 1-3days.
5)The video confence camera doesn’t have the interface I need, what should I do?
--Yes, it might cannot meet your requirement. However, Talk to our sale, the interface we can add to conferencing camera with charging extra fees. We promised : All your need we will try our best to satified you.
6)Can I install the conference camera by myself?
--Of course,the conferencing camera is flexible to install. We supplied camera accompanied with DV 12V power adapter, IR controller, braket, operation menu, RS-232 cable and YPBPR cable.You can install by user manual or you can contact us in need.
7)How about warranty?
--Generally, modules for 1 year, and conference camera for 2 years.
Life-time provide technical consulting.
KATO VISION CO., LIMITED
Phone: +86-755-89500973
Skype: Jenny Kato
TradeManager: cn1511526172
Website: /
Address:4/F, Block B, Dexinchang Industrial Park, Qingxiang Rd., Longhua district, Shenzhen 518109, China
