Usb&sdi PTZ Camera Widely Used in Audio Sound System

Name: Usb&sdi PTZ Camera Widely Used in Audio Sound System
Brand: kato
SKU: 112808741
Availability: InStock

US$ 650 - 750 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

kato

Model Number:

KT-HD60US

Shenzhen KATO Vision Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name kato

Model Number KT-HD60US

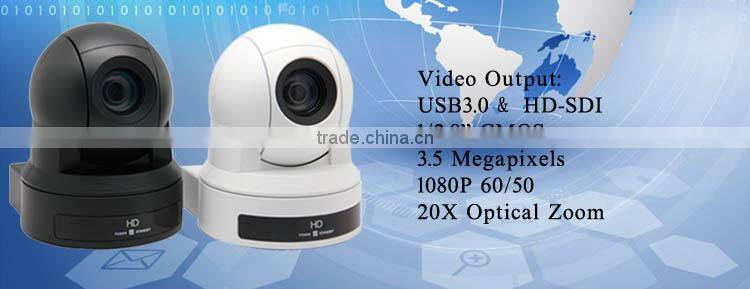

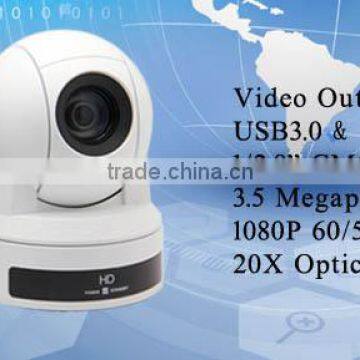

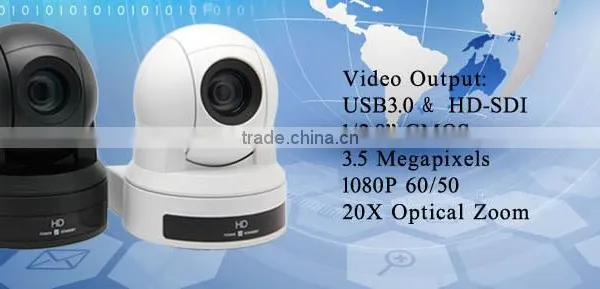

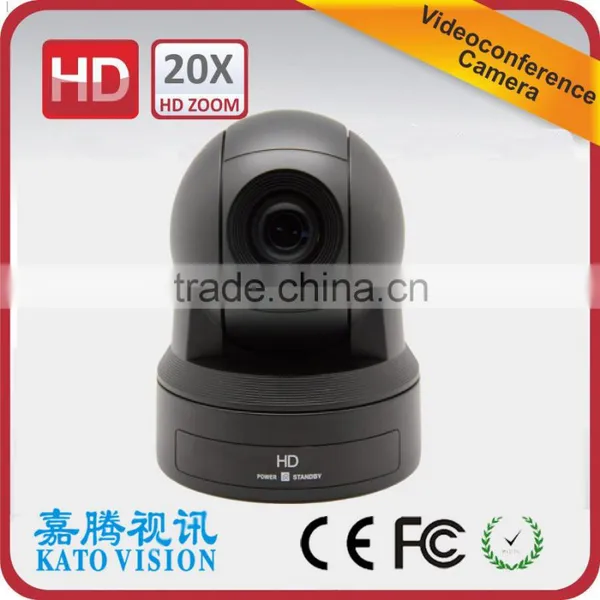

usb&sdi PTZ camera widely used in audio sound system

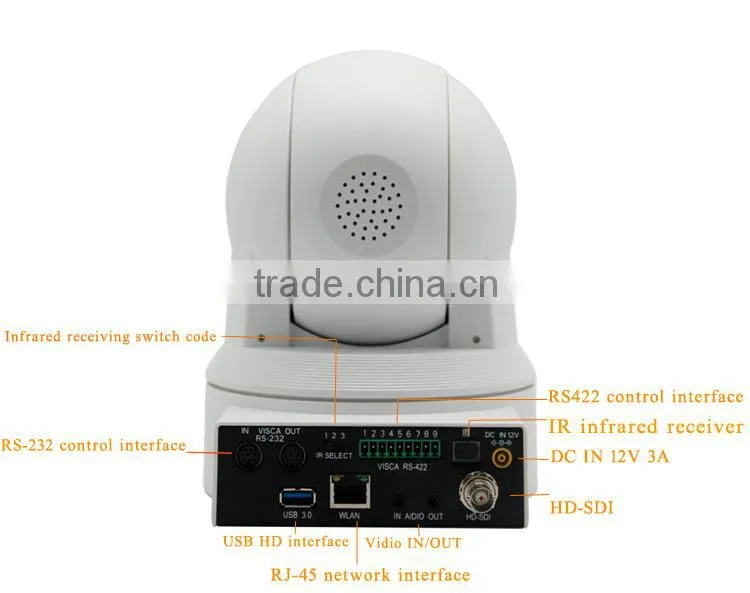

Detailed Images

Product Description

Item No.	KT-HD60US
Image Sensor	1/2.8’’Progressive CMOS
Effective Pixels	3.5 Megapixels
Resolution HD	1080p60/50,1080i60/50,1080p30/25,720p60/50
Signal System	PAL/NTSC
Lens	20X optical zoom, f=4.7mm(wide angle end)~94.0 mm(far end)
Horizontal View Angle	58.7°(W)~3.2°(T)
Focus System	Auto/Manual
Minimum Illumination	0.5Lux
Exposure Control	Auto/Manual/Priority AE/Exposure Compensation/ Bright
Shutter Speed	1/1~1/10,000s
Gain	Auto/Manual
White Balance	Auto/ Indoor/Outdoor/Manual
Image Effect	Full color/black and white/Electronic flip
S/N Ratio	≥50db
Pan	355°(max. speed:80°/s)
Tilt	-30° to +90° (max. speed: 60°/s)
Preset Position	9 preset positions by IR remote controller, 255 preset positions by Keyboard

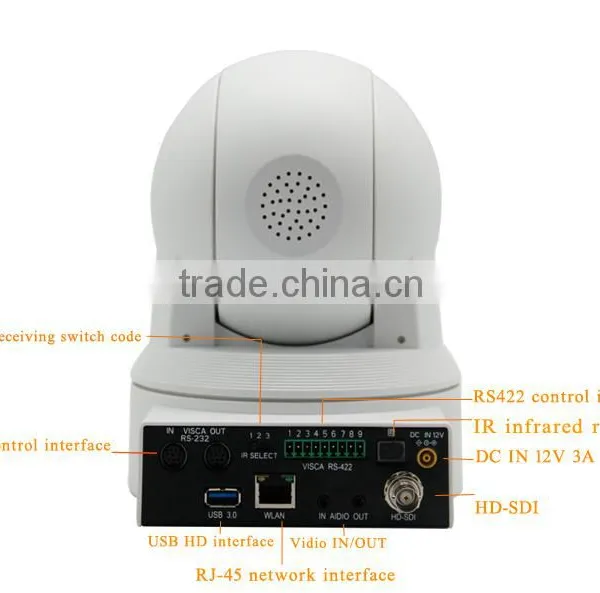

Output	USB2.0
Output	SDI
Control Protocol	SONY VISCA, PELCO P/D
Control Mode	RS-232C, RS-422/485
Power	12V DC(10.8~13.0V DC)
Power Consumption	Max. 30W(DC 12V)
Operating Temperature	0~40℃
Storage Temperature	-20-60℃
Dimensions	(L)170×(W)150×(H)190mm
Weight	1550g
Color	Black/White

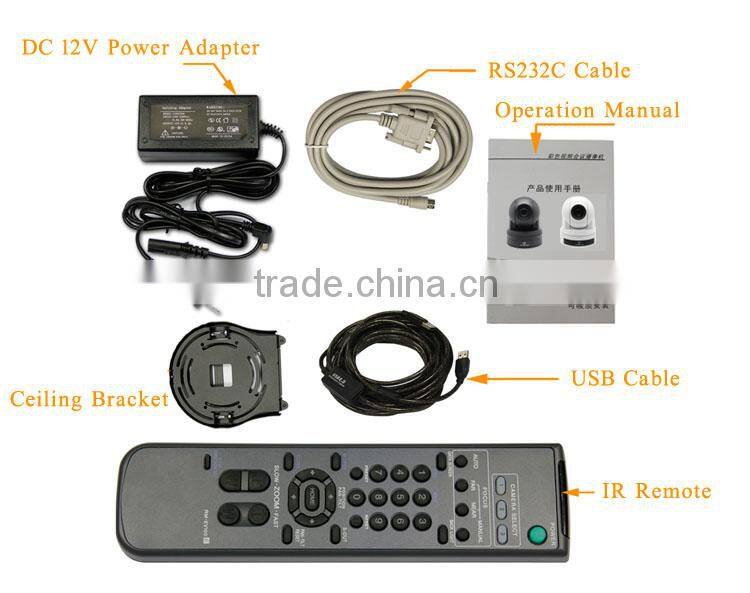

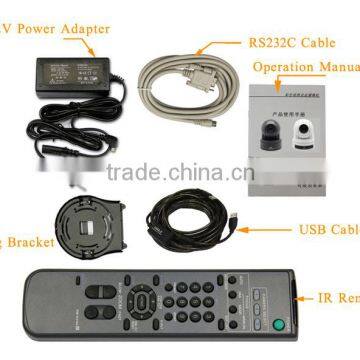

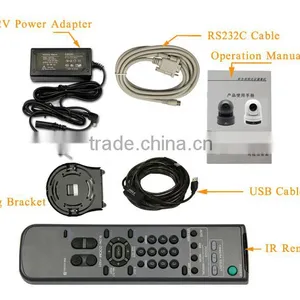

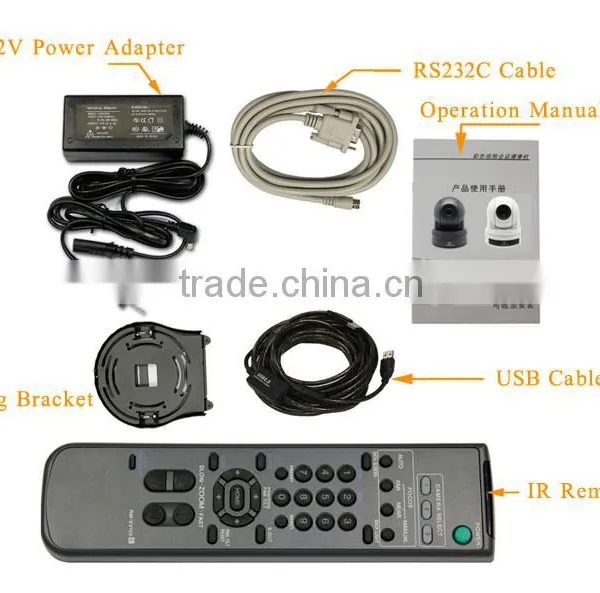

Accessories	DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, DVI adapter, YPbPr/HDMI cable, Ceiling bracket
