Home > Packaging & Printing > Machinery for Packaging Supplies > Bag Making Machine > 2 Lines Fully Automatic Bottom Sealing Machine for With-Core Bag On Roll

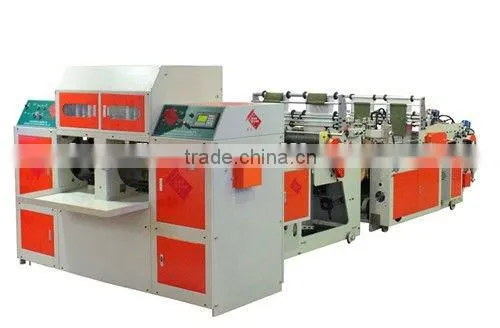

2 Lines Fully Automatic Bottom Sealing Machine for With-Core Bag On Roll
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Machine Type:
Other, sealing, perforating, automatic rolling
Bag Type:
Fruit Bag
Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Servo Motor Driven Full Automatic Perforating Bag On Roll Making Machine With Automatic Rewinding ModuleNegotiableMOQ: 1 Set -
HIGH SPEED FULLY AUTOMATIC BOTTOM SEALING MACHINE FOR BAG ON ROLL WITHOUT CORENegotiableMOQ: 1 Set
-
2 Lines Fully Automatic Multifunctional Bag On Roll Machine With Coreless Winding StationNegotiableMOQ: 1 Set
-
Servo Motor Driven Perforating Bag on Roll Making MachineNegotiableMOQ: 1 Set
-
Fully Automatic Coreless Winding StationNegotiableMOQ: 1 Set
Machine Type
Other, sealing, perforating, automatic rolling
Bag Type
Fruit Bag
Material
Plastic
Computerized
Yes
Place of Origin
Shanghai, China
Brand Name
SINGSIANG
Model Number
AJ350BP
Specifications
apply to make FRESH BAG ROLL,frozen bag on roll with paper core,fully automatic roll changeAJ350BP series designed for making bag on roll with paper core fully automatically. it's high speed, up to 500pcs/min,and with fully automatic roll change station.
FEATURES:
- Motorized unwind station with pneumatic cylinder to lift the roils from the floor.
- automatic film tension control by multiple dancing rollers.
- YASKAWA Servo feeding motor, provide precise length feeding
- SICK photocell enhance precise printing marking registration
- entire machine equip with SIEMENS motors and YASKAWA invertors.
- high precision photo electric web guiding system
- well edsigned mechanical structure, precise and detailed assembling jobs
- user friendly operation system, with multiple alarm for error indication.
OPTIONAL ACCESSORIES:
- Heat slitting &side gusseting station
- V folder for star sealing bag on roll
- C-fold unit for C-fold bag on roll
- coreless automatic winding station
- integrated coreless & with-core automatic winding station
- fully auto or semi-auto inter-leaved winding station
SPECIFICATION:
| POWER | AC220V/AC380V 3PHASES 50/60HZ 18KV |
| DRIVING MOTOR | AC1/3HP*4,AC1/2HP*8.AC2HP*1 |
| HEATER | 4.0KW |
| BAG LENGTH | MAX 1100MM |
| BAG WIDTH | 100-350MM |
| FILM THICKNESS | 8-35u |
| SPEED | MAX 250CYCLE/TRUCK |
| MAX DIA OF ROLL | Φ180MM |
| DIMENSIONS | L675CM*M155CM*H180CM (WINDING PART WIDTH 225CM) |
| GROSS WEIGHT | 4000KG |
| AIR COMPRESSOR | 6HP |
