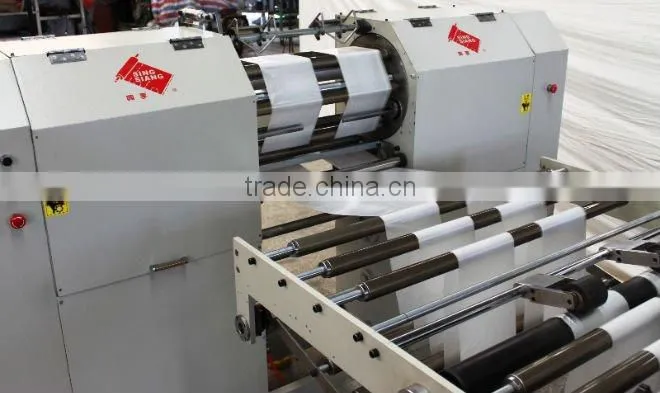

Help CenterFully Automatic Coreless Winding Station
Related Products
-
Dual Servo Motor Driven High Speed 2 Line Full Automatic Coreless Star-sealed Garbage Bag On Roll Making MachineNegotiableMOQ: 1 Set -
Servo Motor Driven Perforating Bag on Roll Making MachineNegotiableMOQ: 1 Set
-
HIGH SPEED FULLY AUTOMATIC BOTTOM SEALING MACHINE FOR BAG ON ROLL WITHOUT CORENegotiableMOQ: 1 Set
-
Servo Motor Driven Perforating Bag on Roll Making MachineNegotiableMOQ: 1 Set
-
Servo Motor Driven Full Automatic Perforating Bag On Roll Making MachineNegotiableMOQ: 1 Set
Specifications
By installing AJ-600CLS Winders, your flatbag machine can be transformed at a low price to make bag roll automatically
Performance:
By installing one AJ-600CLS Winders, your flatbag machine can be transformed at a low price into a flexible machine which can produce bags on the roll as well. |
|
AJ-600CLS Winders can be attached to existing machinery regardless of whether the line is for in-line or out-of-line operation. |
|
AJ-600CLS Winders can also be used in other industries and product fields: plastic film and paper, with and without perforation |
|
Advantages of the new winding principle are: tight and firm rolls, easy and quick threading, operation by keyboard with display, independent, movable unit, few movable parts and reduced maintenance. |
Continuous bag making machine for bags on roll without core with one or 1 or 2 tracks of the production of bags, from small formats for frozen food to large bags for refuse collection, as well as the table cloth roll.
Output up to 12 rolles per minutes!
TECHNICAL DATA | ||
MODEL |
AJ600BR |
AJ700BR |
ROLL WIDTH |
700mm*1line 320mm*2lines |
900mm*1line 420mm*2lines |
|
|
|
|
|
|
|
|
|
|
|
|
ROLL CHANGE SPEED |
6-8 Rolls/m/LINE |
6-8 Rolls/m/LINE |
Roll Diameter. |
150MM |
150MM |
POWER |
3KW |
3KW |
AIR CONSUMPTION |
140ni/min |
140ni/min |
MACHINE SIZE |
L1800mm*W2600mm*H1890mm |
L2100mm*W2800mm*H1890mm |
WEIGHT |
800KG |
900KG |
|
n Linear speed depends on the thickness, the kind of material and the size of bag. n Features can be modified without previous notice. | ||
OPTIONAL DEVICE:
- V Fold with web-guide system *2 set
