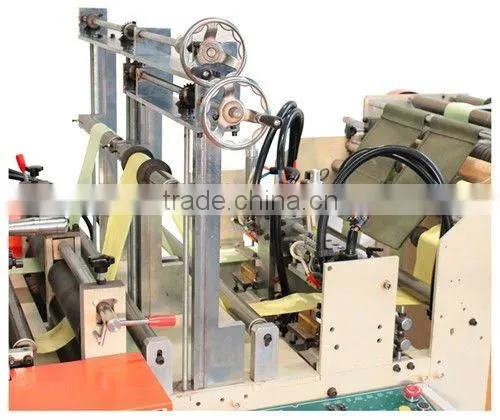

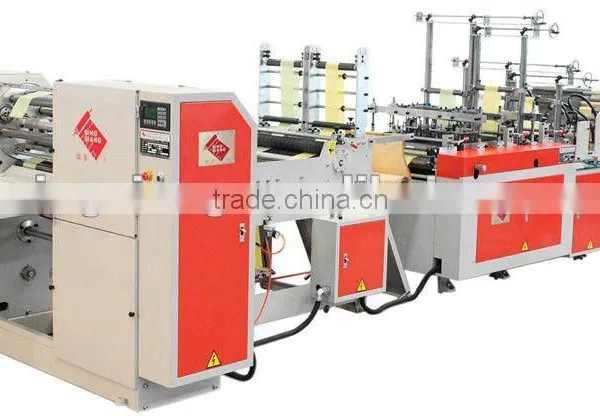

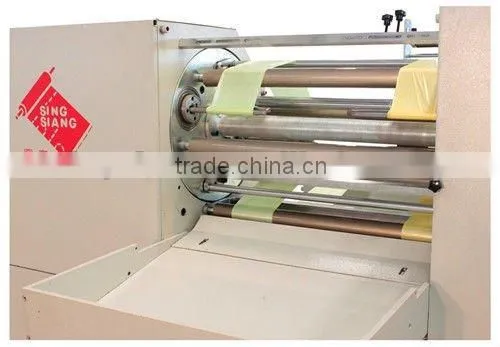

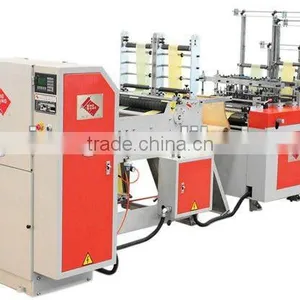

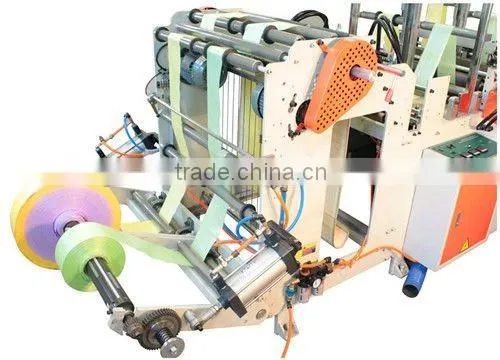

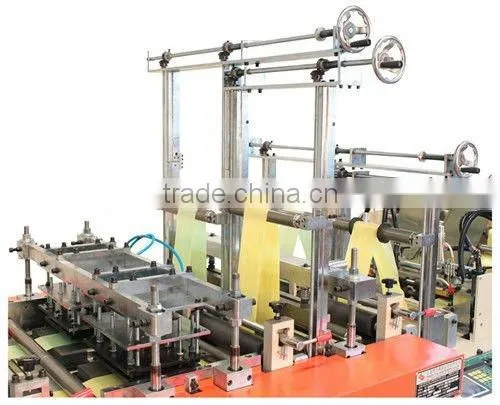

2 Lines Fully Automatic Multifunctional Bag On Roll Machine With Coreless Winding Station
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Machine Type:
Other, Sealing, perforationg, auto rewinding
Bag Type:
Garbage Bag
Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Servo Motor Driven Perforating Bag on Roll Making MachineNegotiableMOQ: 1 Set -
Fully Automatic Coreless Winding StationNegotiableMOQ: 1 Set
-
Dual Servo Motor Driven High Speed 2 Line Full Automatic Coreless Star-sealed Garbage Bag On Roll Making MachineNegotiableMOQ: 1 Set
-
Servo Motor Driven Perforating Bag on Roll Making MachineNegotiableMOQ: 1 Set
-
HIGH SPEED FULLY AUTOMATIC BOTTOM SEALING MACHINE FOR BAG ON ROLL WITHOUT CORENegotiableMOQ: 1 Set
Machine Type
Other, Sealing, perforationg, auto rewinding
Bag Type
Garbage Bag
Material
Plastic
Computerized
No
Place of Origin
Shanghai, China
Brand Name
SINGSIANG
Model Number
AJ300MUBR
Specifications
Multiple production flexibility.apply for flat Bottom Sealed, gusseted Bottom Sealed,star sealed, t-shirt, wave top Bag on RollMultiple production flexibility, Available for
- Bottom Sealed - Lay Flat Bags on Roll (pic 1)
- Bottom Sealed – Gusseted Bag on Roll(pic 2)
- Star Sealed Bag on Roll(pic 3)
- T-Shirt Bags on Roll(pic 4)
- Star Sealed T-Shirt Bag on Roll(pic 5)
- Wave Top Bag on Roll (pic 6)
- C Fold T-Shirt Bag on Roll (Optional pic7)
SPECIFICATION:
- Motorized unwind station with pneumatic cylinder to lif the rolls for the floor
- YASKAWA Servo Feeding Motor, provide precise length Feeding.
- Dual Feeding Servo Motor for 2 Line Printed Bag production
- Entire Machine equip with SIEMENS Motors & YASKAWA Invertors.
- Well designed mechanical structure, precise & detailed assembling jobs.
- User friendly Operation System, with multiple alarms for error indication.
TECHNICAL DATA
- Power : AC220V / AC380V 3 Phases 50/60 Hz 10Kv
- Driving Motor : AC 1/3 HP *3 , AC 1/2 HP * 4 , AC 2 HP*1
- Heater: 4.0KW
- Bag Length : Max. 1100MM
- Bag Width:120~300MM
- Bag Thickness: 8~35 µ
- Speed:Max 120 Cycle / Min. 80 Meter / Min./ Truck
- Roll Change: Max. 6 Rolls / Min.
- Max. Dia. of Roll: Ø 150* W 300MM
- Dimensions:L*W*H : 675 * 135 * 180CM (Max Width : 225CM)
- Gross Weight : 3500KGS
- Air Compressor: 2 HP (Not Included )
Optional Accessories
- C Fold Unit for C Fold T-Shirt Bag on Roll
- With-Core Automatic Winding Station
- Integrated Coreless & With-Core Automatic Winding Station
