Home > Products > Perforating Bag on Roll Machine > 2 Lines Fully Automatic Multifunctional Bag On Roll Machine With Coreless Winding Station

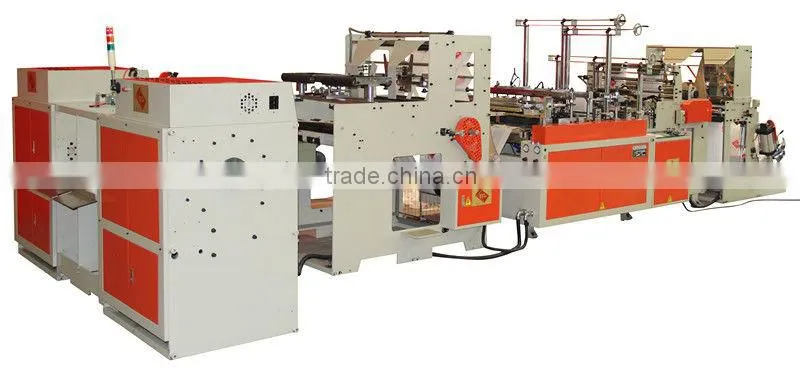

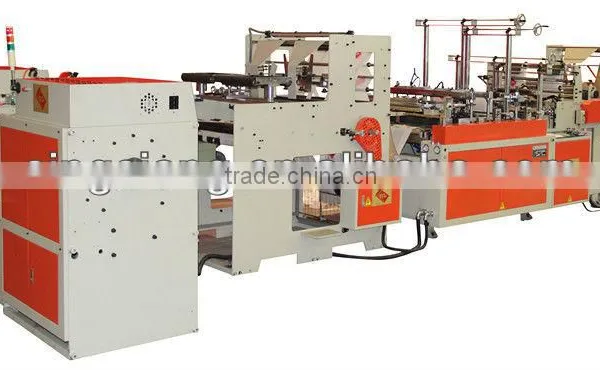

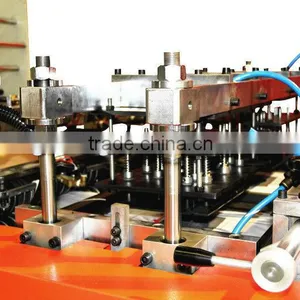

2 Lines Fully Automatic Multifunctional Bag On Roll Machine With Coreless Winding Station
Negotiable
/ Set
1 Set(Min.Order)
- 5 Set / Sets per Month
- SHANGHAI
You May Like
Product Details
| Machine Type: | Other, Sealing, perforationg, auto rewinding | Bag Type: | Garbage Bag | Material: | Plastic |
| Computerized: | No | Place of Origin: | Shanghai, China | Brand Name: | SINGSIANG |
| Model Number: | AJ300MUBR | Voltage: | 220V/380V | Power(W): | 8.0KW |
| Dimension(L*W*H): | 6.5M*2.3M*1.8M | Weight: | 2800KG | Certification: | CE |
| Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Multiple production flexibility.apply for flat Bottom Sealed, gusseted Bottom Sealed,star sealed, t-shirt, wave top Bag on RollMultiple production flexibility, Available for
- Bottom Sealed - Lay Flat Bags on Roll (pic 1)
- Bottom Sealed – Gusseted Bag on Roll(pic 2)
- Star Sealed Bag on Roll(pic 3)
- T-Shirt Bags on Roll(pic 4)
- Star Sealed T-Shirt Bag on Roll(pic 5)
- Wave Top Bag on Roll (pic 6)
- C Fold T-Shirt Bag on Roll (Optional pic7)
SPECIFICATION:
- Motorized unwind station with pneumatic cylinder to lif the rolls for the floor
- YASKAWA Servo Feeding Motor, provide precise length Feeding.
- Dual Feeding Servo Motor for 2 Line Printed Bag production
- Entire Machine equip with SIEMENS Motors & YASKAWA Invertors.
- Well designed mechanical structure, precise & detailed assembling jobs.
- User friendly Operation System, with multiple alarms for error indication.
TECHNICAL DATA
- Power : AC220V / AC380V 3 Phases 50/60 Hz 10Kv
- Driving Motor : AC 1/3 HP *3 , AC 1/2 HP * 4 , AC 2 HP*1
- Heater: 4.0KW
- Bag Length : Max. 1100MM
- Bag Width:120~300MM
- Bag Thickness: 8~35 µ
- Speed:Max 120 Cycle / Min. 80 Meter / Min./ Truck
- Roll Change: Max. 6 Rolls / Min.
- Max. Dia. of Roll: Ø 150* W 300MM
- Dimensions:L*W*H : 675 * 135 * 180CM (Max Width : 225CM)
- Gross Weight : 3500KGS
- Air Compressor: 2 HP (Not Included )
Optional Accessories
- C Fold Unit for C Fold T-Shirt Bag on Roll

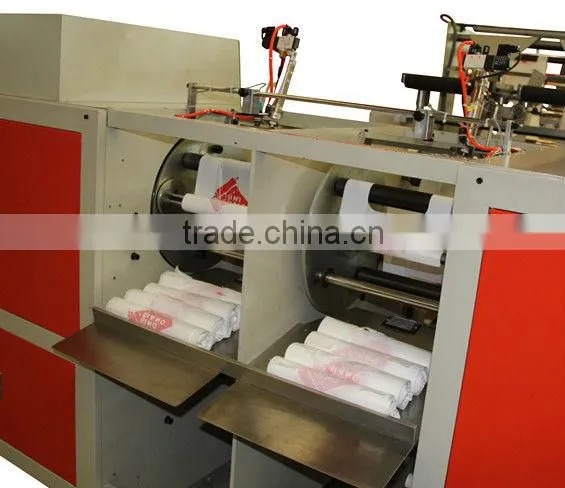

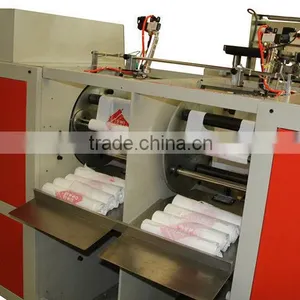

- With-Core Automatic Winding Station
- Integrated Coreless & With-Core Automatic Winding Station
Contact Us
- Shanghai Sing Siang Machinery Co., Ltd.
- Contact nameAbel Tsai
- Phone86-21-59868750
- AddressNo. 508, Xindan Road
