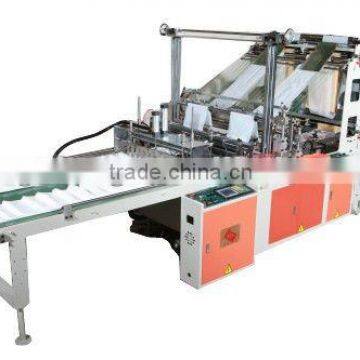

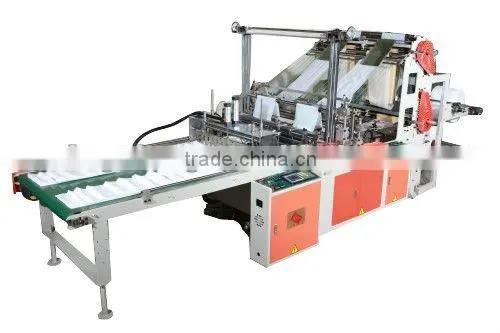

Servo Motor Driven 2 Layer (4,6,8-line) Bottom Sealing Bag Making Machine
- shanghai
- T/T
You May Like
-
Servo Motor Driven 2 Layer Bottom Sealing Bag Making Machine
-
Servo Motor Driven Bottom Sealing Bag Making Machine
-
Servo Motor Driven 2 Layer Super Wide Bottom Sealing Bag Making Machine
-
Servo Motor Driven Ice Cube Bag Making Machine
-
Servo Motor Driven 2 Layer (4,6,8-line) Bottom Sealing Bag Making Machine
-
Servo Motor Driven Bottom Sealing Bag Making Machine
Product Details
| Machine Type | Other, Sealing & Cutting | Bag Type | Other, Flat bag | |
| Material | Plastic | Computerized | Yes | |
| Place of Origin | Shanghai, China | Brand Name | SINGSIANG | |
| Model Number | SHTF |
Product Description
Specifications
Accurate cut & sealing,Durable design & assembling,High stability,Low maintenance and Competitive priceOnline punch available
Accurate cut & sealing!
Durable design & assembling!
High stability!
Low maintenance and Competitive price!
Online punch is available!
With Hot pin, Applicable for T-shirt bag or calendar bag making as well!
Special Features:
Ø Servo Motor Driven, Efficient mechanical structure, Digital setup, accurate registration, less waste.
Ø Fully Automatic control panel, Large Screen , Easy to read, User Friendly.
Ø Efficient output, less man power required
Ø SINGSIANG Special formulation for the cutting knife to ensure pleasant sealing line with high firmness Cutting blade is imported from Taiwan, durable, sharp and easy for adjustment.
Ø With different optional device, SHTF can run 2 line different printing, or different length film together, also can run up to 8 lines film without printing. The max production can reach up to 120*8 line.
Ø Online punch is available, can make T-shirt bag or calendar bag automatically.
Ø Automatically stop when running out of film
Ø Automatically stop when film feeding blocks or bags jam
Ø Automatically stop when The temperature not reaching setting
Ø Automatically stop when the bags become super-imposed or overlapped.
optional Accessories:
Ø Free Tension Sealing Blade (for Thick Bags)
Ø Perforating Bags Production Device
Ø Bottom Sealing T-shirt Bag making Device
Ø Air Punching Unit
Ø Glove Bag Sealing Device and Conveyor Stacker
SPECIFICATION | ||||||||||
MODEL | MAX.WIDTH | MAX. LENGTH | CONVERTING THICKNESS | ACCURACY LENGTH(m/m) | SPEED (PCS/MIN) | SERVO MOTOR | HEATER | POWER REQUIRED | DIAMENSION | MACHINE WEIGHT |
SHTF-30T | 330 mm | 1200 mm | 0.01 - 0.1 mm | ± 1 | 10 - 150 | 1.5 KW | 2.0 KW | 4.5 KW | 330*142*144 | 1000 KG |
SHTF-36T | 380 mm | 1200 mm | 0.012-0.15 mm | ± 1 | 10-120 | 2.0 KW | 2.2 KW | 5.0 KW | 420*157*165 | 1100 KG |
SHTF-42T | 450 mm | 1200 mm | 0.012-0.15 mm | ± 1 | 10 - 120 | 3.0 KW | 2.5 KW | 5.5 KW | 420*173*165 | 1200 KG |
more information please check our official websit.
