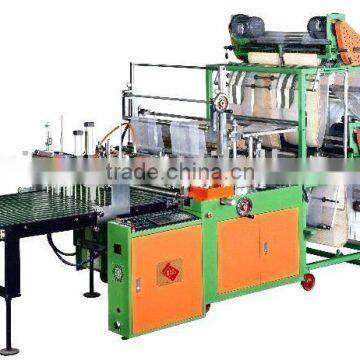

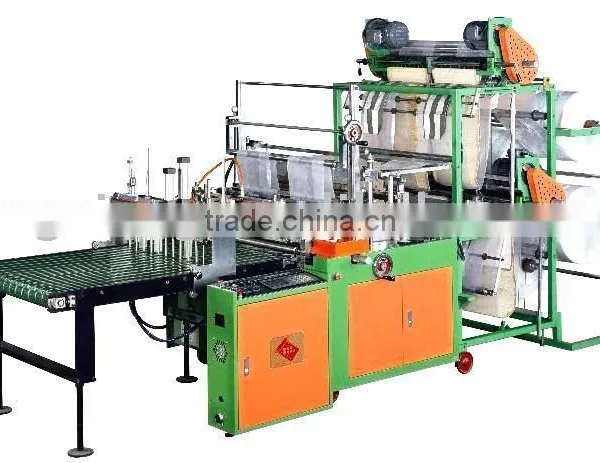

Help CenterServo Motor Driven 2 Layer (4,6,8-line) Bottom Sealing Bag Making Machine
Related Products
-
Servo Motor Driven Bottom Sealing Bag Making MachineNegotiableMOQ: 1 Set -
Servo Motor Driven Bottom Sealing Bag Making MachineNegotiableMOQ: 1 Set
-
Servo Motor Driven 2 Layer 6 Line Bottom Sealing Bag Making MachineNegotiableMOQ: 1 Set
-
NEW! Dual Servo Motor Driven 2 Line Bottom Sealing Bag Making MachineNegotiableMOQ: 1 Set
-
2 Lanes Bottom Sealing T-Shirt Bag Making Machine (Cold Cutting)NegotiableMOQ: 1 Set
Specifications
Accurate cut & sealing,Durable design & assembling,High stability,Low maintenance and Competitive priceOnline punch available
Accurate cut & sealing!
Durable design & assembling!
High stability!
Low maintenance and Competitive price!
Online punch is available!
With Hot pin, Applicable for T-shirt bag or calendar bag making as well!
Special Features:
Ø Servo Motor Driven, Efficient mechanical structure, Digital setup, accurate registration, less waste.
Ø Fully Automatic control panel, Large Screen , Easy to read, User Friendly.
Ø Efficient output, less man power required
Ø SINGSIANG Special formulation for the cutting knife to ensure pleasant sealing line with high firmness Cutting blade is imported from Taiwan, durable, sharp and easy for adjustment.
Ø With different optional device, SHTF can run 2 line different printing, or different length film together, also can run up to 8 lines film without printing. The max production can reach up to 120*8 line.
Ø Online punch is available, can make T-shirt bag or calendar bag automatically.
Ø Automatically stop when running out of film
Ø Automatically stop when film feeding blocks or bags jam
Ø Automatically stop when The temperature not reaching setting
Ø Automatically stop when the bags become super-imposed or overlapped.
Optional Accessories:
Ø Free Tension Sealing Blade (for Thick Bags)
Ø Perforating Bags Production Device
Ø Bottom Sealing T-shirt Bag making Device
Ø Air Punching Unit
Ø Glove Bag Sealing Device and Conveyor Stacker
SPECIFICATION | ||||||||||
MODEL |
MAX.WIDTH |
MAX. LENGTH |
CONVERTING THICKNESS |
ACCURACY LENGTH(m/m) |
SPEED (PCS/MIN) |
SERVO MOTOR |
HEATER |
POWER REQUIRED |
DIAMENSION |
MACHINE WEIGHT |
SHTF-30T |
330 mm |
1200 mm |
0.01 - 0.1 mm |
± 1 |
10 - 150 |
1.5 KW |
2.0 KW |
4.5 KW |
330*142*144 |
1000 KG |
SHTF-36T |
380 mm |
1200 mm |
0.012-0.15 mm |
± 1 |
10-120 |
2.0 KW |
2.2 KW |
5.0 KW |
420*157*165 |
1100 KG |
SHTF-42T |
450 mm |
1200 mm |
0.012-0.15 mm |
± 1 |
10 - 120 |
3.0 KW |
2.5 KW |
5.5 KW |
420*173*165 |
1200 KG |
more information please check our official websit.
