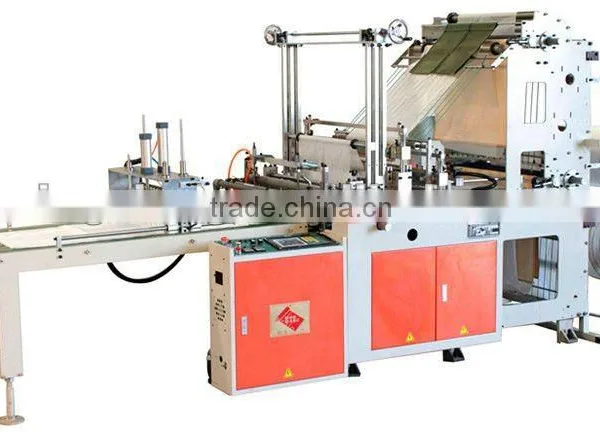

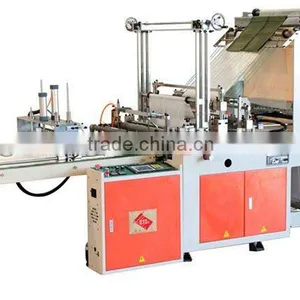

Servo Motor Driven 2 Layer Bottom Sealing Bag Making Machine

Specifications

Accurate cut & sealing,Durable design & assembling,High stability,Low maintenance and Competitive price
Online punch available

Apply to 2 layer bag making without printing, 1 layer with printing, max bag making width up tp 2200MM







Special Features:



Ø         Servo Motor Driven, Efficient mechanical structure, Digital setup, accurate registration, less waste.

Ø         Fully Automatic control panel, Large Screen , Easy to read, User Friendly.

Ø         Efficient output, less man power required

Ø         SINGSIANG Special formulation for the cutting knife to ensure pleasant sealing line with high firmness Cutting blade is imported from Taiwan, durable, sharp and easy for adjustment.

Ø         Online punch is available, can make T-shirt bag or calendar bag automatically.

Ø         Automatically stop when running out of film

Ø         Automatically stop when film feeding blocks or bags jam

Ø         Automatically stop when The temperature not reaching setting

Ø         Automatically stop when the bags become super-imposed or overlapped.















Optional Accessories:



Ø         Free Tension Sealing Blade (for Thick Bags)

Ø         Perforating Bags Production Device

Ø         Bottom Sealing T-shirt Bag making Device

Ø         Air Punching Unit

Ø         Glove Bag Sealing Device and Conveyor Stacker



SPECIFICAION
MODEL	MAX.WIDH	MAX. LENGH	CONVERING HICKNESS	ACCURACY LENGH(m/m)	SPEED (PCS/MIN)	SERVO MOOR	HEAER	POWER REQUIRED	DIAMENSION L * W * H (CM)	MACHINE WEIGH
SHCG-22	480 mm	1200 mm	0.01 - 0.1 mm	± 1	10 - 150	1.5 KW	2.0 KW	3.5 KW	330*117*184	1030 KG
SHCG-30	725 mm	1200 mm	0.012-0.15 mm	± 1	10-150	2.0 KW	2.2 KW	4.0 KW	350*142*184	1300 KG
SHCG-36	860 mm	1200 mm	0.012-0.15 mm	± 1	10 - 150	2.0 KW	2.5 KW	5.2 KW	420*157*205	1400 KG
SHCG-42	1010 mm	1800 mm	0.01 - 0.1 mm	± 1	10 - 150	3.0 KW	3.0 KW	5.7 KW	420*173*205	1500 KG
SHCG-50	1210mm	1800 mm	0.012-0.15 mm	± 1	10-130	3.0 KW	4.0 KW	6.2 KW	420*193*165	1600 KG
SHCG-60	1430mm	2200 mm	0.012-0.15 mm	± 1	10 - 100	4.4 KW	4.5 KW	6.7 KW	420*219*205	1700 KG
SHCG-75	1800mm	2200 mm	0.01 - 0.1 mm	± 1	10 - 80	4.4 KW	5.0 KW	7.2 KW	420*254*205	1800 KG
SHCG-90	2200 mm	2200 mm	0.012-0.15 mm	± 1	10-80	4.4 KW	5.5 KW	8.0KW	420*157*205	2200 KG

more information please check our official websit.
