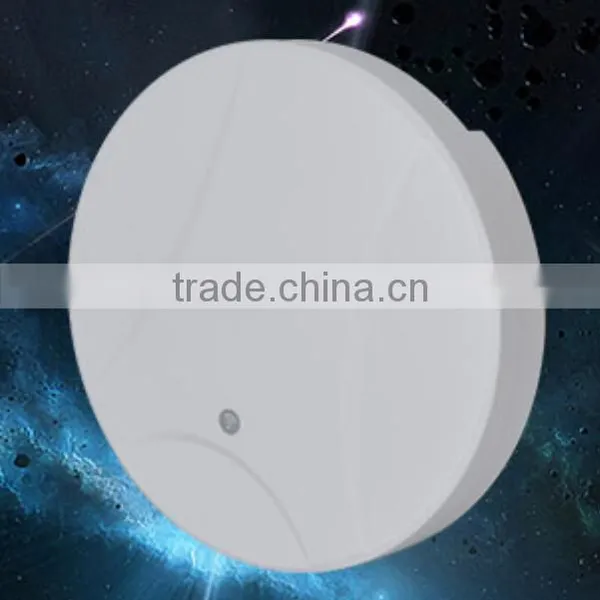

Hot Sale 300mbps Wireless Ceiling AP Cascaded Wireless AP with POE
Blueone SA245 Ceiling Mounted wirelss AP support POE power supply and cascaded mode, which save Ethernet cables and switches and easy for cabling.
Blueone SA245 Ceiling Mounted wireless AP is a newly designed product to supply public WiFi for hotel, KTV, dormitory, office, shopping mall, etc. The features of this product are high-power coverage and big concurrent connections. It is the best-selling product among all ceiling mounted wireless AP.
The product adopts MTK7620A chip, 580Mbps dominant frequency, 300Mbps transmission rate and 2.4GHz frequency. It carries powerful 16M flash and 128M memory, supports 50 end users to connect simultaneously. Its power consumption is 8W and the RF power can reach up to 300dBM( 1000mW). It is easy to cover 8 rooms with 400 square meters.
1> Carry global leader MTK7620A chip
2> High-power coverage and support 50 simultaneous connections
3> 300Mbps transmission rate and 580MHz dominant frequency
4> 16M flash and 128M storage
5> Support seamless roaming
6> Support POE power supply
7> Support cascaded mode to save Ethernet cables and switches
8> Convenient and easy for cabling
Blueone Ceiling AP connecting type:
Other AP connecting type:
|
Hardware |
Master chip |
MTK7628A 300Mbps wirelss AP |
dominant frequency |
580Mhz |
|
Wireless technology |
802.11N ,2T2R 300M MIMO technology |
|
Storage |
128MB DDR2 RAM |
|
Device interface |
Two 10/100Mbps self-adaption Ethernet ports |
|
One reset button for factory setting | ||
Antenna |
Two 2.4G MIMO omni built-in 5DBI antennas |
|
Dimension |
168mm x 168mm x 48mm(length x width x height) |
|
Weight |
Gross 0.2kg |
|
Power source |
POE 24V |
|
|
RF |
RF power |
18dBm±2dBm |
RF band |
Support 5,10,20,HT40MHz |
|
|
Receiving sensitivity |
-62dBm@150Mbps ,-65dBm@128Mbps ,-69dBm@78Mbps , -72dBm@54Mbps,-74dBm@48Mbps,-84dBm@12Mbps,- 90dBm@6Mbps,-95dBm@1Mbps |
|
|
Software |
Work mode |
AP/Station mode |
|
Communication standard |
IEEE 802.3(Ethernet) IEEE 802.3u(Fast Ethernet) IEEE 802.11 b/g/n(2.4G WLAN) |
|
System configuration |
By WEB configuration |
|
Firmware upgrading |
By WEB Log-in or TFTP |
|
User management |
Username and password configurable |
|
|
Physical |
Operating temperature |
-10℃ to 70℃; Storage temperature: -20℃ to 80℃ |
Operating humidity |
10% to 90%RH non-condensing; Storage humidity: 5% to 90%RH non-condensing; |
T/T, Western Union, Paypal
Please contact us with no hesitation if you need further information about our smart ceiling ap. Your any queries would be replied immediately or within 12 hours if it is not our working time. Thank you for kind cooperation!
