Y30 Series Single-Column Hydraulic Press

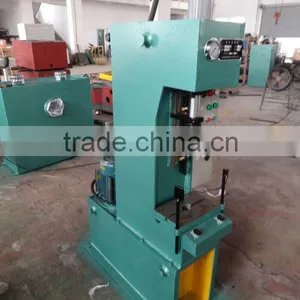

Y30 Series Single-Column Hydraulic Press thumbnail-1

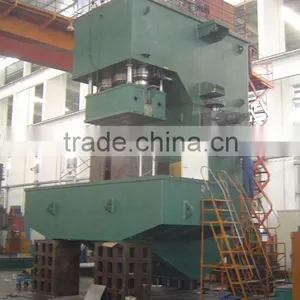

Y30 Series Single-Column Hydraulic Press thumbnail-2
Y30 Series Single-Column Hydraulic Press photo-1

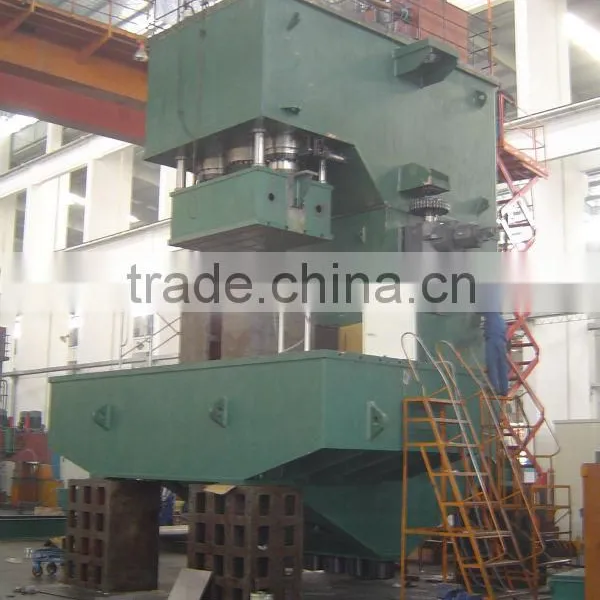

Y30 Series Single-Column Hydraulic Press photo-2
Negotiable MOQ: 1 Short Ton (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
xinke
Model Number:
Y30
Contact Supplier Request Quote Chat Now
Huzhou Xinke Forging Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanhhai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name xinke
Model Number Y30
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Computer optimized designed C-frame vertical structure with high rigidity.
2.With Ram direction guide rod for higher accuracy

Y30 Series Single-Column Hydraulic Press 1, Vertical Structure with High Rigidity 2, Higher Accuracy 3, Automatic return



Name: Y30 Series Single-Column Hydraulic Press



Characteristics of Single-Column Hydraulic Press:

1, Computer optimized designed C-frame vertical structure  2, With Ram direction guide rod  3, Independent hydraulic and electrical control system, centralized pushbutton control   4,  Preset Stroke Forming or Preset Pressure Forming process 5,  Adjustment operation or Two-hand/single cycle operation



Applications of Single-Column Hydraulic Press:

1, Drawing, forming, and coining processes for small size sheet metal products; bending, pressing forming process for big size sheet metal products

2, Adjusting and press-in processes for shaft and sleeve parts

3, forming processes for Non-metal materials, plastics products and powder products



Technical Specifications of Single Column Hydraulic Press



Item Unit Y30-2.5 Y30-4 Y30-6.3 Y30-10 Y30K-10 Y30-16 Y30-25 Y30-40 Y30-63 Y30-100 Y30-315 Y30-500
Nominal Pressure kN 25 40 63 100 100 160 250 400 630 1000 3150 5000
Ejector Force kN             60 100 125 200
The MAX. Working Pressure of Liquid MPa 8 12.5 16 20 20 20 25 25 25 25 25 25
Ejecting Stroke mm             140 150 160 160
Stroke mm 125 200 200 250 400 320 350 400 400 450 450 1200
Roar Deep mm 110 125 180 250 230 250 280 320 320 320 350 1200
Max. Opening mm 210 360 360 450 700 520 560 600 650 710 710 1600
Size of Working Table Left-Right mm 300 320 360 500 500 560 630 700 710 710 1000 2500
Front-Back mm 200 240 320 420 420 480 520 580 600 630 650 2500
Size of Bed Opening mm φ80 φ80 φ80 u100 φ60 φ100 φ125 φ125 φ160 φ180 φ170
The Height of Working Table mm 900 900 900 700 700 700 700 700 800 820 700 400
Speed of Slider Downstream mm/s 38 38 55 45 45 45 115 63 115 110 180 130
Working mm/s 38 38 55 25 25 10 15 14 10 8 8-15 5-12
Return mm/s 100 100 140 130 130 80 120 96 105 90 120 100
           Overall Dimenshion Left-Right mm 1105 1105 1295 1140 1190 1278 1485 1580 1750 1900 2000 4850
Front-Back mm 555 555 660 760 730 750 860 860 1100 862 2280 2500
Height mm 1732 1807 1900 1810 2247 2150 2200 2200 2500 2705 4200 7600
Ejector Piston Speed Ejecting mm/s             60 55 40 40
Return mm/s             180 220 160 160
Electric Motor Power kW 1.5 2.2 3 3 3 3 4 5.5 5.5 7.5 30 30
Weight of Machine t 0.35 0.38 0.6 1.25 1.3 1.45 2.2 2.4 3.2 3.4 32 58



Options of Single-Column Hydraulic Press:

Proportional regulation for slide speed; Displacement sensor; Light curtain safety device; Right and left lateral safety barrier; Power socket; Working area lighting; PLC program controller
