Frame of Four-column style based on computer optimizing structure design with high precious and durability.Specifications
Special Hydraulic Press for SMC 1,high precious and durability. 2,simple controlling 3, reliable performance

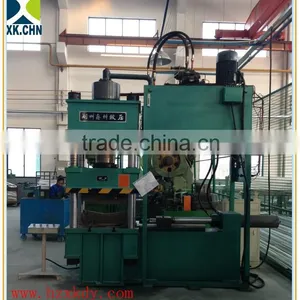

Name: Special Hydraulic Press for SMC
Characteristics of Special Hydraulic Press for SMC
1, Gantry or Four-column style based on Computer Optimizing Structure Design with high precious and durability.
2, Latest Closed-loop ratio control technology with digital display, position, pressure and speed setting,
3, Adopted in Inverter Control System with simple controlling, reliable performance and also reach to special SMC forming process.
Apllications of Special Hydraulic Press for SMC :
With the latest Closed-loop ratio control technology, digital control the speed, pressure, position, and pressing process with very high accuracy. The presses are will suitable for high quality production of various thermo setting and thermo-plastic SMC/BMC/DMC/LFT-D products. Widely used on aviation, aerospace, track vehicle, vessel, automobile, architecture, petrifaction, energy, electric and literary form producing.
Technical Specifications of Special Hydraulic Press for SMC
Items Type |
Unit |
Y71-63 |
Y71-100 |
Y71-200 |
Y71-315 |
Y71-400 |
Y71-500 |
Y71-630 |
Y71-800 |
|
Nominal Pressure |
kN |
630 |
1000 |
2000 |
3150 |
4000 |
5000 |
6300 |
8000 |
|
Preload Pressure |
kN |
250 |
315 |
630 |
1000 |
1250 |
2000 |
2500 |
2500 |
|
Mould Opening Force |
kN |
125 |
250 |
4000 |
630 |
800 |
1000 |
1250 |
1250 |
|
Ejection Force |
kN |
125 |
250 |
400 |
630 |
630 |
1000 |
1000 |
1000 |
|
Size of Working Table |
Left-Right |
mm |
570 |
720 |
930 |
1260 |
1300 |
1400 |
1600/2000 |
2000 |
Front-Back |
mm |
500 |
630 |
900 |
1200 |
1300 |
1400 |
1600/1800 |
1600 |
|
T Groove |
|
22 |
22 |
28 |
28 |
36 |
36 |
36 |
36 |
|
Opening Height |
mm |
800 |
900 |
1120 |
1250 |
1250 |
1500 |
1500/2000 |
1600 |
|
Slider Stroke |
t |
500 |
630 |
710 |
800 |
800 |
900 |
1100/1400 |
1200 |
|
Knockout Stroke |
mm/s |
200 |
200 |
200 |
300 |
300 |
300 |
300 |
300 |
|
The Max. Pressure of System |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Quick Descend Speed |
mm |
120 |
120 |
120 |
150 |
180 |
180 |
200 |
200 |
|
Preload Speed |
mm/s |
5-25 |
5-25 |
5-20 |
5-20 |
5-20 |
5-20 |
5-25 |
5-25 |
|
Pressing Speed |
mm/s |
2-10 |
10-20 |
2-7 |
2-7 |
2-7 |
2-7 |
1-5 |
1-5 |
|
Mould Opening Speed |
mm/s |
5-30 |
5-30 |
5-30 |
5-30 |
5-30 |
5-30 |
5-30 |
5-30 |
|
Slider Return |
mm/s |
100 |
100 |
100 |
120 |
140 |
170 |
180 |
180 |
|
Slow Knockout |
mm/s |
5-30 |
5-30 |
5-30 |
5-30 |
5-30 |
5-30 |
5-30 |
5-30 |
|
Quick Ejecting |
mm/s |
80 |
80 |
80 |
80 |
80 |
80 |
60 |
60 |
|
Structure |
|
Four-Column |
Four-Column |
Four-Column |
Four-Column |
Four-Column |
Four-Column |
Four-Column |
Four-Column |
|
The options of Special Hydraulic Press for SMC:
Moving Table; Conversion ejection device; Core-pulling, spraying, vacuum pumping device; Mould heating system; Light curtain safety device
