Specifications
computer optimized designframe structure with small working table

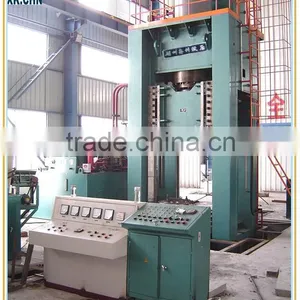

Characteristics of Hydraulic Press Machine :
1,Frame structure with small working table, High body strength, economic and practical
2,Cartridge Valve Integrated System equipped in hydraulic control system, and General press below 500t, equipping in hydraulic slider valve control system with high reliability, durability, small hydraulic impact and minimizing hydraulic impact design
3, Independent electrical control system adopted Japanese imported Mitsubishi PLCwith reliability, intuitive movement and convenient amendment
4, Adopting Button common control with two operation ways: adjustment or two-hand/single cycle operation
5, Preset Stroke Forming or Preset Pressure Forming process can be selected. High control precision, especially for extrusion forming of shaft parts and tooth parts
Apllications of Hydraulic Press Machine :
Suitable for extrusion and forming of shaft parts, tooth parts and plate type parts with high forming precision, saving material, and also suitable in heating extrusion industry if equipped heating system
Technical Specifications of Hydraulic Press Machine
Item Type |
|
HY61-200 |
HY61-315 |
HY61-400 |
HY61-500 |
HY61-630 |
HY61-800 |
HY61-1000 |
HY61-1250 |
|
Nominal Pressure |
kN |
2000 |
3150 |
4000 |
5000 |
6300 |
8000 |
10000 |
12500 |
|
Knock-out force |
kN |
360 |
300 |
350 |
570 |
630 |
970 |
660 |
1520 |
|
Below Ejecting Force |
kN |
400 |
500 |
630 |
630 |
800 |
1000 |
1000 |
1500 |
|
The Max. working Pressure of Hydraulic |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Main Cylinder Stroke |
mm |
350 |
350 |
350 |
400 |
450 |
500 |
500 |
900 |
|
Stroke of Below Ejector Cylinder |
mm |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
300 |
|
The Max. Opening between Slider and Working Table |
mm |
600 |
600 |
650 |
700 |
800 |
850 |
850 |
1500 |
|
Active Area of Working Table |
mm×mm |
580x700 |
620×700 |
720x720 |
720x800 |
800x880 |
860x920 |
860x1000 |
1300x1300 |
|
Speed of Slider |
Quick Descend |
mm/s |
300 |
300 |
350 |
350 |
280 |
300 |
300 |
180 |
Slow Descend |
mm/s |
12-30 |
10-25 |
10-25 |
10-25 |
10-23 |
10-22 |
10-20 |
8-24 |
|
Return |
mm/s |
160 |
250 |
250 |
210 |
180 |
200 |
280 |
200 |
|
Speed of Ejector |
Ejecting |
mm/s |
150 |
150 |
150 |
100 |
75 |
120 |
110 |
120 |
Return |
mm/s |
230 |
200 |
200 |
130 |
110 |
160 |
200 |
130 |
|
Main Electric Motor Power |
kW |
22 |
30 |
37 |
44 |
60 |
74 |
74 |
111 |
|
Weight |
t |
8 |
10 |
12 |
14 |
21 |
25 |
28 |
45 |
|
