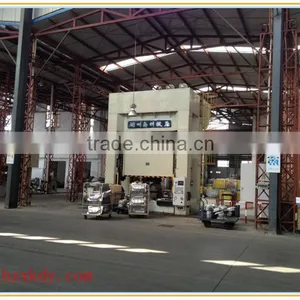

HY27 Frame Hydraulic Drawing Press

Name: HY27 Frame Hydraulic Drawing Press
Brand: xinke
SKU: 112792093
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

xinke

Model Number:

Y27

Huzhou Xinke Forging Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name xinke

Model Number Y27

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Specifications
HY27 Frame Hydraulic Drawing Press
1, intuitive movement
2, high reliability, durability
3, small hydra

Whole or separate or tie-bar gantry type with high rigidity and precious
8-fold guide way feature high direction precision and electric load resistance performance
Imported oil cylinder sealing components with high reliability and long life time
High idle speed and quick working speed for high production efficiency
Equipped with proximity switch or displacement sensor for reliable and precise stroke control
High-grade safety protection system including mechanic, electric and hydraulic interlock system, double insurance hydraulic support circuit for main cylinders
Control system based on PLC, sensitivity, reliability and flexibility

Applications of HY27 Frame Hydraulic Drawing Press
:

Suitable for drawing, bending, forming, stamping and flanging processes, especially for the following fields:

1, Automobile parts productions: vehicle bodywork, brake disc, oil tank, chassis, rear axle and bumper, etc.

2, Household Electronic: Washing machine parts, electric cooker, TV set parts, refrigerator parts;

3, Kitchen utensils: kitchen sinks, pots, stainless steel articles and other containers;

4, others: tractor, motorcycle, aircraft and aerospace industry.

Technical Specifications

HF27Type----Frame Single Action Hydraulic Drawing Press
Items Type		Unit	HY27-315	HY27-500	HY27-630	HY27-800	HY27-1000	HY27-2000
Nominal Pressure		kN	3150	5000	6300	8000	10000	20000
Knock-Out Force		kN	300	810	600	830	1300	2100
Hydraulic Cushion Force		kN	1500	2000	3150	3000	4000	8000
Buffering Power		kN		800*2	1000*2	1500*2	3000*2	4000*2
The Max. Working Pressure of Fluid		Mpa	25	25	25	25	25	25
The Max.Distance between Working Table and Slider		mm	1200	1500	1500	1600	2000	1800
Load-Bearing of Moving Working Table		t		20		10	30	50
Moving Speed of Working Table		mm/s		50		60	50	50
Moving Distance Of Working Table		mm		2000		2200	3000	2800
Slider Stroke		mm	800	1000	1000	1000	1500	1300
Hydraulic Cushion Stroke		mm	300	300	300	400	400	400
The Height between Working Table and Ground		mm	600	600	600	600	600	645
Speed of Slider	Downstream	mm/s	300	200	350	250	400	350
	Pressing	mm/s	12-26	12-25	12-28	10-25	5-10	18-38
	Return	mm/s	280	140	300	250	300	300
Speed of Hydraulic Cushion	Rising	mm/s	55	55	50	60	150	80
Size of Working Table	Left-Right	mm	1500	2500	2500	3000	4000	4000
Size of Working Table	Front-Back	mm	1200	1800	2000	1800	2400	2500
Size of Hydraulic Cushion	Left-Right	mm	1000	1950	1800	2000	2850	3200
Size of Hydraulic Cushion	Front-Back	mm	800	1200	1200	1100	1850	1700
Size of Machine	Front-Back	mm	2818	3900	4150	5600	9005	9065
	Left-Right	mm	3610	4200	4480	5330	6340	8900
	Height above Ground	mm	6515/5297	7900/6200	8100/6350	8800/6720	10050/7750	10600/8000
Electric Motor Power		Kw	52.6	60	110	121	240	385
