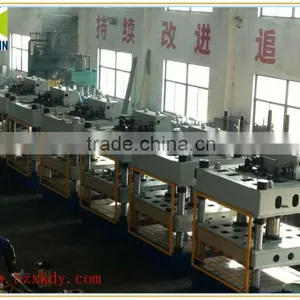

HY27 Frame Hydraulic Drawing Press
- 250 Set / Sets per Month
- shanghai
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | xinke | Model Number: | HY27 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
deep drawing hydraulic press1, Simple Structure
2, High Production Efficiency
3, Suitable and reliable
Characteristic of deep drawing hydraulic press:
1,Whole or separate or tie-bar gantry type with high rigidity and precious;
2, 8-fold guide way feature high direction precision and electric load resistance performance;
3,Imported oil cylinder sealing components with high reliability and long life time;
4,High idle speed and quick working speed for high production efficiency ;
5,Equipped with proximity switch or displacement sensor for reliable and precise stroke control;
6,Control system based on PLC, sensitivity, reliability and flexibility.
Applications of deep drawing hydraulic press :
Suitable for drawing, bending, forming, stamping and flanging processes, especially for the following fields:
1, Automobile parts productions: vehicle bodywork, brake disc, oil tank, chassis, rear axle and bumper, etc.
2, Household Electronic: Washing machine parts, electric cooker, TV set parts, refrigerator parts;
3, Kitchen utensils: kitchen sinks, pots, stainless steel articles and other containers;
4, others: tractor, motorcycle, aircraft and aerospace industry.
Technical Specification of deep drawing hydraulic press
Items Type | Unit | HY27-315 | HY27-500 | HY27-630 | HY27-800 | HY27-1000 | HY27-2000 | |
Nominal Pressure | kN | 3150 | 5000 | 6300 | 8000 | 10000 | 20000 | |
Knock-Out Force | kN | 300 | 810 | 600 | 830 | 1300 | 2100 | |
Hydraulic Cushion Force | kN | 1500 | 2000 | 3150 | 3000 | 4000 | 8000 | |
Buffering Power | kN | 800*2 | 1000*2 | 1500*2 | 3000*2 | 4000*2 | ||
The Max. Working Pressure of Fluid | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | |
The Max.Distance between Working Table and Slider | mm | 1200 | 1500 | 1500 | 1600 | 2000 | 1800 | |
Load-Bearing of Moving Working Table | t | 20 | 10 | 30 | 50 | |||
Moving Speed of Working Table | mm/s | 50 | 60 | 50 | 50 | |||
Moving Distance Of Working Table | mm | 2000 | 2200 | 3000 | 2800 | |||
Slider Stroke | mm | 800 | 1000 | 1000 | 1000 | 1500 | 1300 | |
Hydraulic Cushion Stroke | mm | 300 | 300 | 300 | 400 | 400 | 400 | |
The Height between Working Table and Ground | mm | 600 | 600 | 600 | 600 | 600 | 645 | |
Speed of Slider | Downstream | mm/s | 300 | 200 | 350 | 250 | 400 | 350 |
Pressing | mm/s | 12-26 | 12-25 | 12-28 | 10-25 | 5-10 | 18-38 | |
Return | mm/s | 280 | 140 | 300 | 250 | 300 | 300 | |
Speed of Hydraulic Cushion | Rising | mm/s | 55 | 55 | 50 | 60 | 150 | 80 |
Size of Working Table | Left-Right | mm | 1500 | 2500 | 2500 | 3000 | 4000 | 4000 |
Front-Back | mm | 1200 | 1800 | 2000 | 1800 | 2400 | 2500 | |
Size of Hydraulic Cushion | Left-Right | mm | 1000 | 1950 | 1800 | 2000 | 2850 | 3200 |
Front-Back | mm | 800 | 1200 | 1200 | 1100 | 1850 | 1700 | |
Size of Machine | Front-Back | mm | 2818 | 3900 | 4150 | 5600 | 9005 | 9065 |
Left-Right | mm | 3610 | 4200 | 4480 | 5330 | 6340 | 8900 | |
Height above Ground | mm | 6515/5297 | 7900/6200 | 8100/6350 | 8800/6720 | 10050/7750 | 10600/8000 | |
Electric Motor Power | Kw | 52.6 | 60 | 110 | 121 | 240 | 385 |
Options of deep drawing hydraulic press:
Moving Table; Proportional regulation for slide speed and force; Proportional regulation for cushion force; Cutting dampening system; Light curtain safety device; Oil heating/cooling unit; Industry touching screen monitor; Displacement sensor; Floating guide-way and rolling bracket for die exchange; non-recycling column slide device; Working area lighting.
