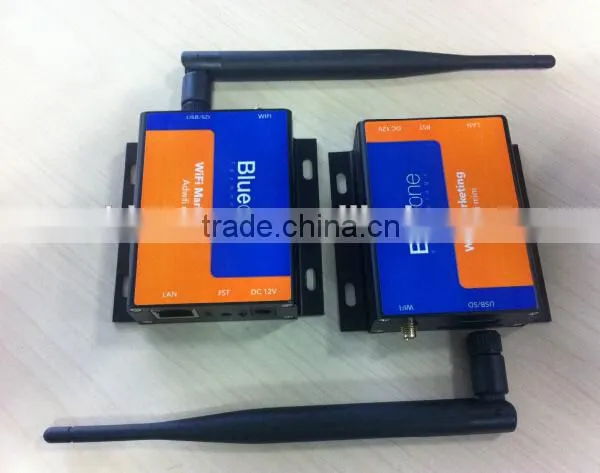

Hot sale small size wifi advertising device-adwifi mini
Our Adwifi device can provide wifi network and push adwertisements to mobile phones and laptops.
It supports access to Internet by ethernet cable and external 3G/4G usb dongle.
When mobile users connect the wifi network of Adwifi and refresh their browser, they will redirect to advertisements content, after redirect time, they can surf the Internet freely.
If you don't want to provide users free Internet, our device can work without Internet connection,
it provides wifi hotspot as Intranet mode.
Remote Control
We provide web server based management software to manage Adwifi With an user name and password, you are able to control and Monitor multiple devices remotely, actually anywhere.
We also provide HTML creater for client to creat webpages
Specifications
Product Parameter |
Contents |
|
|
Hardware |
Processor |
MIPS: 24kec 580Mhz |
SDram |
DDR II 128MB |
|
Built-in flash |
32MB built-in |
|
Storage |
8GB |
|
|
Connection |
Connection amount |
60 |
Network connection |
LAN, 3G USB dongle |
|
Wi-Fi |
Frequency range |
2.4G(ISM frequency range) |
Modulation system |
OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK |
|
Work mode |
AP mode,Station mode, |
|
Speed supported |
11B rate:1,2,4,6,9,11Mbps; 11G rate:6,9,12,18,24,36,48,54Mbps; 11N rate:MCS0-6.5,MCS1-13,MCS2-19.5, MCS3-26,MCS4-39,MCS5-52,MCS6-58.5,MCS7-65 |
|
|
Frequency range scanning |
Support site scanning and communication channel detecting, signal real-time status display |
|
|
Radio frequency |
Radio-frequence power |
20dBm±2dBm, |
Radio-frequency band |
Support 5,10,20,HT40MHz |
|
Sensitivity |
-62dBm@150Mbps ,-65dBm@128Mbps ,-69dBm@78Mbps , -72dBm@54Mbps,-74dBm@48Mbps,-84dBm@12Mbps,- 90dBm@6Mbps,-95dBm@1Mbps |
|
|
Safety |
Encryption type |
WPA/WPA2 |
Safety management |
Client-side isolation, hidden SSID,VLAN,VMSSID |
|
ACL access strategy |
ACL client-side MAC address filtering |
|
|
Network management |
Supervisor mode |
WEB,PC,Telnet configuration management |
Upgrading and backups |
Support remote online firmware upgrading; configuration file backups/ importing |
|
Reboot function |
Support remote software/ hardware reboot, Ping Watchdog |
|
|
Users management |
Bandwidth control |
Client IP-based or MAC Bandwidth control |
|
Interface management |
Ethernet interface |
Standard: Gigabit Ethernet adaptable network interface |
Antenna interface |
One external N-Female antenna port |
|
|
Electrical property |
Power source |
DC 12V, 1A |
Max power consumption |
3W |
|
|
Physical property |
Size |
Primary device shell size: 8.5*10*2.5cm |
Weight |
Primary gross weight: 0.2kg |
|
Product shell |
Metal, rust-proof, sun block |
|
|
Environmental characteristics |
Operation temperature |
-20℃ to 70℃, Storage temperature: -40℃ to 80℃ |
Operating humidity |
10% to 90%RH non-condensing; Storage humidity: 5% to 90%RH non-condensing; |
|
Waterproof grade |
Waterproof box optional |
|
|
Lightning protection grade |
Built-in power supply and reticle lightning protection module, IEC61000-4-5 |
|
Accessories |
Antenna |
5dBi omni antenna, 7dBi omni or14DBi directional antenna(optional) |
Module accessories |
|
|
Others |
Power adapter, car charger and battery(optional) |
|
Features
Supprt more than 60 concurrent users
Interactive advertising communication with users
Unlimited advertising contents
Bandwidth limit
Compatible with all WiFi-enabled Smart phones, including iPhone, Blackberry, Samsung, HTC, etc.
Compatible with all WiFi-enabled laptops, includong Ipad.
Advertising contents include picture, animation, audio, video, webpage, etc.
Support php and html webpages
Support online advertising and offline advertising
24/7/365 autonomous working
