2016 New Arrival Long Range WiFi Advertising Server

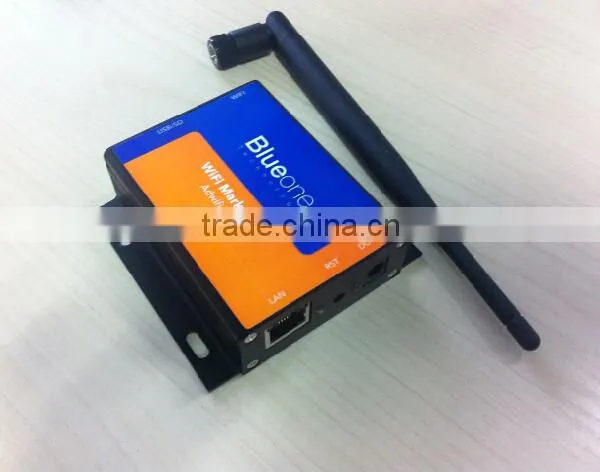

Our Adwifi device can provide wifi network and push adwertisements to mobile phones and laptops.
It supports access to Internet by ethernet cable and external 3G/4G usb dongle.
When mobile users connect the wifi network of Adwifi and refresh their browser, they will redirect to advertisements content, after redirect time, they can surf the Internet freely.
If you don't want to provide users free Internet, our device can work without Internet connection,
it provides wifi hotspot as Intranet mode.
Key Advantages
Compatible with 100% of Smartphone, (Iphone, Blackberry, HTC, Samsung, android phone...)
Compatible with 100% of laptop & Ipad with Wi-Fi
Push advertising contents to smartphone & laptop users
Approach more potential customers
Stand alone working, no need PC
Remote webserver management
Easy operation & stand alone work
Unlimited Advertising contents
Real time statistics
Remote Control
We provide web server based management software to manage Adwifi With an user name and password, you are able to control and Monitor multiple devices remotely, actually anywhere.
The Key functions provide:
*Upload campaign and manage devices remotely
*Hotspot monitor ( when you login the software, you will know working condition of the device)
*Instant content change (quick change/ correct the marketing content)
*Instant access to statistics ( WiFi campaign, mac address and name of mobile phones)
Where Adwifi is appliad
Specifications
Product Parameter |
Contents |
|
|
Hardware |
Processor |
MIPS: 24kec 580Mhz |
SDram |
DDR II 128MB |
|
Built-in flash |
32MB built-in |
|
Storage |
8GB |
|
|
Connection |
Connection amount |
60 |
Network connection |
LAN, 3G USB dongle |
|
Wi-Fi |
Frequency range |
2.4G(ISM frequency range) |
Modulation system |
OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK |
|
Work mode |
AP mode,Station mode, |
|
Speed supported |
11B rate:1,2,4,6,9,11Mbps; 11G rate:6,9,12,18,24,36,48,54Mbps; 11N rate:MCS0-6.5,MCS1-13,MCS2-19.5, MCS3-26,MCS4-39,MCS5-52,MCS6-58.5,MCS7-65 |
|
|
Frequency range scanning |
Support site scanning and communication channel detecting, signal real-time status display |
|
|
Radio frequency |
Radio-frequence power |
20dBm±2dBm, |
Radio-frequency band |
Support 5,10,20,HT40MHz |
|
Sensitivity |
-62dBm@150Mbps ,-65dBm@128Mbps ,-69dBm@78Mbps , -72dBm@54Mbps,-74dBm@48Mbps,-84dBm@12Mbps,- 90dBm@6Mbps,-95dBm@1Mbps |
|
|
Safety |
Encryption type |
WPA/WPA2 |
Safety management |
Client-side isolation, hidden SSID,VLAN,VMSSID |
|
ACL access strategy |
ACL client-side MAC address filtering |
|
|
Network management |
Supervisor mode |
WEB,PC,Telnet configuration management |
Upgrading and backups |
Support remote online firmware upgrading; configuration file backups/ importing |
|
Reboot function |
Support remote software/ hardware reboot, Ping Watchdog |
|
|
Users management |
Bandwidth control |
Client IP-based or MAC Bandwidth control |
|
Interface management |
Ethernet interface |
Standard: Gigabit Ethernet adaptable network interface |
Antenna interface |
One external N-Female antenna port |
|
|
Electrical property |
Power source |
DC 12V, 1A |
Max power consumption |
3W |
|
|
Physical property |
Size |
Primary device shell size: 8.5*10*2.5cm |
Weight |
Primary gross weight: 0.2kg |
|
Product shell |
Metal, rust-proof, sun block |
|
|
Environmental characteristics |
Operation temperature |
-20℃ to 70℃, Storage temperature: -40℃ to 80℃ |
Operating humidity |
10% to 90%RH non-condensing; Storage humidity: 5% to 90%RH non-condensing; |
|
Waterproof grade |
Waterproof box optional |
|
|
Lightning protection grade |
Built-in power supply and reticle lightning protection module, IEC61000-4-5 |
|
Accessories |
Antenna |
5dBi omni antenna, 7dBi omni or14DBi directional antenna(optional) |
Module accessories |
|
|
Others |
Power adapter, car charger and battery(optional) |
|
