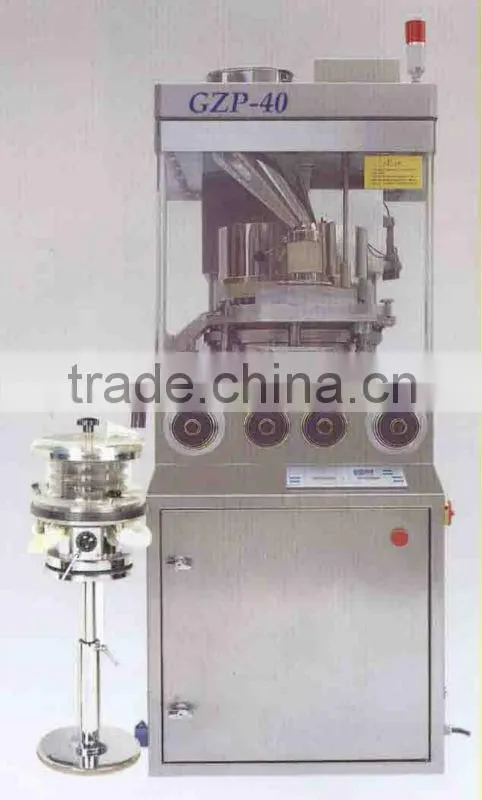

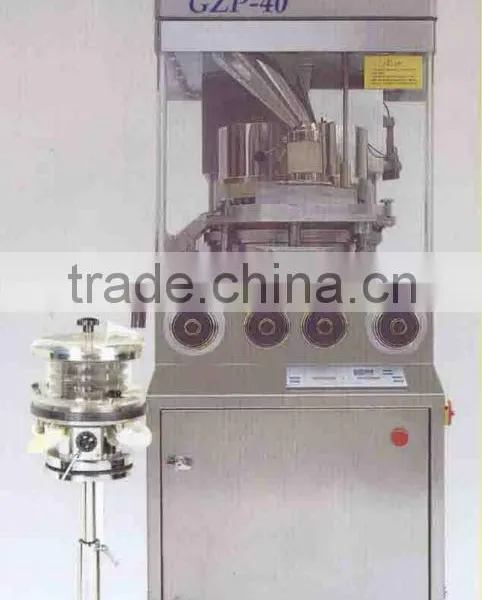

GZP Automatic High-speed Rotary Tablet Press

GZP Automatic High-speed Rotary Tablet Press thumbnail-1
GZP Automatic High-speed Rotary Tablet Press photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
sunhang
Contact Supplier Request Quote Chat Now
Shanghai Sunhang Pharmaceutical Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin China
Brand Name sunhang
Model Number GZP
Type Rotary Tablet Press
Production Capacity 100000-260000table/H
Max. Pressure(KN) 14KN
Max. Tablet Thickness(mm) 20mm
Max. Tablet Diameter(mm) 25mm
Voltage 220V 50HZ/380 60HZ
Power(W) 7.5KW
Weight 1200KG
Dimension(L*W*H) 700x1000X 1865mm

Specifications

Automatic compensation is used to control tablet weigh to guarantee harmony between tablets.



GZP Automatic High-speed Rotary Tablet Press



Automatic compensation is used to control tablet weigh to guarantee harmony between tablets.

  Multi-monitoring measure are taken to protect operator and machine, as well as to ensure table quality.

  The pressure of each punch is monitored and displayed at high speed, therefore, single waste tablet rejecting is realized.



The pre-pressure, main pressure wheel is hold by the cylinder. If the pressure is over nigh, the cylinder system can buffer and protection.



Main Technical Specifications:

Model

GZP-16

GZP-23

GZP-30

GZP-26

GZP-32

GZP-40

No. of station(set)

16

23

30

26

32

40

Max. output(tablet/h)

100,000

150,000

200,000

160,000

210,000

260,000

Max. tablet diameter(mm)

25



16

13

25

16

13

Punch diameter(mm)

38.1

30.182

24

38.1

30.182

24

Max. filling depth(mm)

20

20

16

20

20

16

Power(kw)

7.5

7.5

5.5

10

7.5

7.5

Main pressure(KN)

100

100

100

100

100

100

Pre-pressure(KN)

14

14

14

16

16

14

Weight(kg)

1200

1200

1200

1450

1450

1450

Overall size(mm)

700*1000*1800

700*1000*1865



 GZP Automatic High-speed Rotary Tablet PressGZP Automatic High-speed Rotary Tablet Press
