GZPS49, 61, 73 High Speed Rotary Tablet Press

GZPS49, 61, 73 High Speed Rotary Tablet Press photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
sunhang
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin China
Brand Name sunhang
Model Number GZPS49, 61, 73
Type Rotary Tablet Press
Production Capacity 470000-700000table/H
Max. Pressure(KN) 100KN
Max. Tablet Thickness(mm) 20mm
Max. Tablet Diameter(mm) 25mm
Voltage 220V 50HZ/380 60HZ
Power(W) 11KW
Weight 4800KG
Dimension(L*W*H) 1300X1300X2000MM

Specifications

Automatic compensation is used to control tablet weigh to guarantee harmony between tablets.



GZPS49, 61, 73 High Speed Rotary Tablet Press

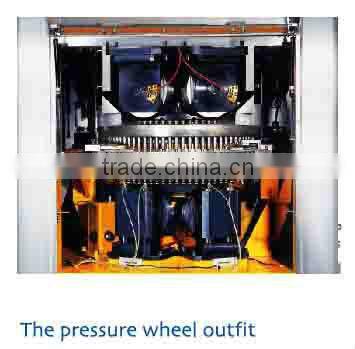

The pollution of tablet has been avoided effectively for canceling the hydraulic system. And the electric motor and the encoder were used to control the position of the pressure wheel and adjust the pressure of the pressure of the pressure wheel & the measurement navigation at the same time. Consequently, the weight and thickness of the tablet coming from the two outlets of the double rotary press is equal.

  The control cabinet is separated to the double rotary press, which makes it possible that the manipulators control the machine in maintenance area.

  If making the change slightly, he can make the two layers tablet.



It make the same pre-pressure and the main pressure because of the same size of the pre-pressure wheel and the main pressure wheel. (The exhausting time is 5 to 10 times as much as the old structures.) Therefore, quality of the tablet is confirmed well. At the same time, because the pressure wheel size is consistent, they are exchangeability. That can lengthen service life of the pressure wheel.



Main Technical Specifications:

Model

GZPS-49

 GZPS-61

 GZPS-73

Number of Station (set)

49

61

73

Output (tablet/h)

470000

570000

700000

Max Tablet Diameter (mm)

25

16

13

Punch diameter(mm)

38

20

16

Max Filling Depth (mm)

20

20

16

Power (KW)

11

11

11

Main Pressure (KN)

100

100

100

Prepressure (KN)

100

100

100

Net weight(kg)

4800

4800

4800

Overall dimension(mm)

1300*1300*2000
