Specifications

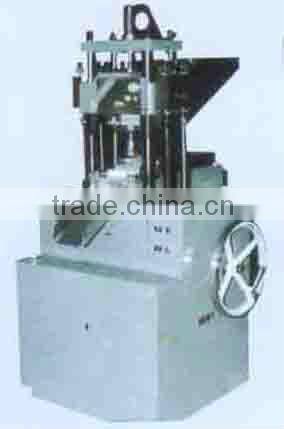

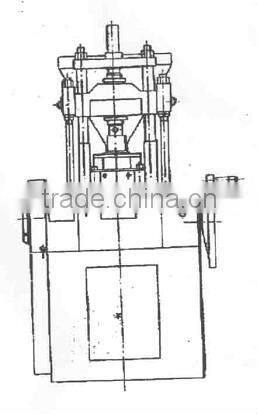

The machine applies the DOWN DRIVING SINGLE TABLET, which owns big pressure, good forming, stable operationDDY Single Tablet Press
Characteristics:
The machine applies the DOWN DRIVING SINGLE TABLET, which owns big pressure, good forming, stable operation. This machine don’t need the basement, save electricity, and can also press by manual. And also equip the pressure displayer and overloading protection device.
The machine can press the power granules into round, irregular and ring shape tablet. It is suitable for pesticide, chemical, metallurgy, foodstuff etc industry big tablet and difficult forming tablet.
Main Technical Specifications:
Model |
DDY |
Max. pressure |
200KN |
Max. tablet diameter |
80mm |
Pressing tablet hole diameter |
1/4-1/2 outer diameter |
Max. filling depth |
50mm |
Production capacity |
16-25tablets/min(for the diameter is less than 35mm tablet, use 2-joint or 3-joint punch and die is: 30-70tabelt/min. |
Weight |
1150Kg |
Motor power |
1.5Kw |
Overall size(L*W*H) |
1050*950*1600mm |
