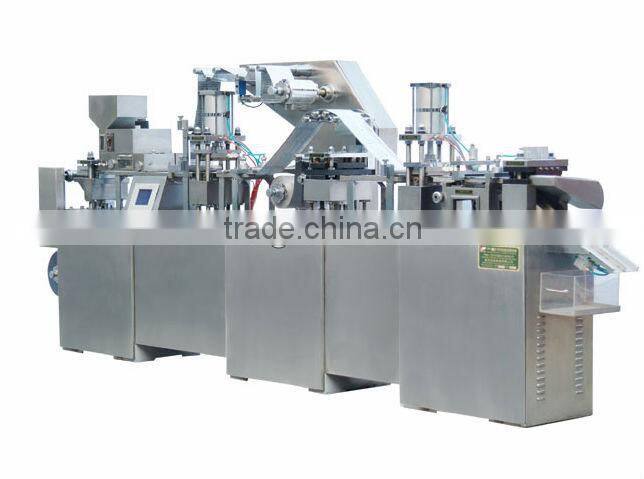

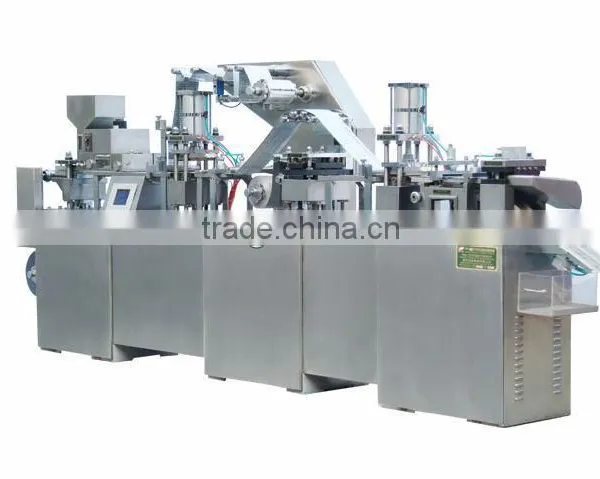

DPP300F Al/Plastic/AL Blister Packing Machine

Name: DPP300F Al/Plastic/AL Blister Packing Machine
Brand: sunhang
SKU: 112784207
Availability: InStock

US$ 1 - 11,300 MOQ: 1 Set

Key Specifications

Place of Origin:

China

Brand Name:

sunhang

Model Number:

DPP300F

Shanghai Sunhang Pharmaceutical Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name sunhang

Model Number DPP300F

Dimension(L*W*H) 4200x970x1500mm

Weight 2300KGS

Certification GMP

Condition New

Specifications

This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.

DPP300F Al/Plastic/AL Blister Packing Machine

Performance and Characteristics:

l Adopting Man-machine Interface PLC Control System made by Germany Siemens Co.

l Having the functions of fiber-optical no tablet (granule)checking and automatic waste plate rejecting.

l Variable frequency speed regulating, separated-type combined body

l Equipped with cursor picture register sets so as to improve the product grade.

l This machine can carry out AL-plastic, Al-Al and AL-plastic –Al packing simultaneously, thus achieving the aim of tri-use in one machine.

l Multi-layer Composite Packing with Good Tightness Performance, High-intensity Photopathy, Damp Proof, Fake Proof and Heat Proof Function.

l High Collocation, High Performance, Perfect Packing Effect.

Main Technical Specifications:

Main Technical Specifications	Production capacity :15-25times/min(according to sample);
Specifications of packing material	PTP:width≤300 thickness 0.025-0.3mm; PVC :width≤300mm thickness0.15-0.5mm; Tropical Blister Foil:300×0.12
Adjustable scope of travel	30-120mm
Packing efficiency	3600-9000 plates /hour
Scope of packing	Capsule , tablet
Forming depth(max)	20
Forming area(max)	300×120×20
Power	380V 50Hz 6KW
Intensity of pressure(MPa)	0.6-0.7MPa
Air –compressor(m3/h)	≥0.4
Yawp(Db)	60-75dB
Overall Dimensions(L×W×Hmm)	4200×970×1950mm
Weight(kg)	2300kg
Motor	0-50Hz
Quality requirements	GMP certification
Quality verification	ISO9001:2000 International Quality System Certification
