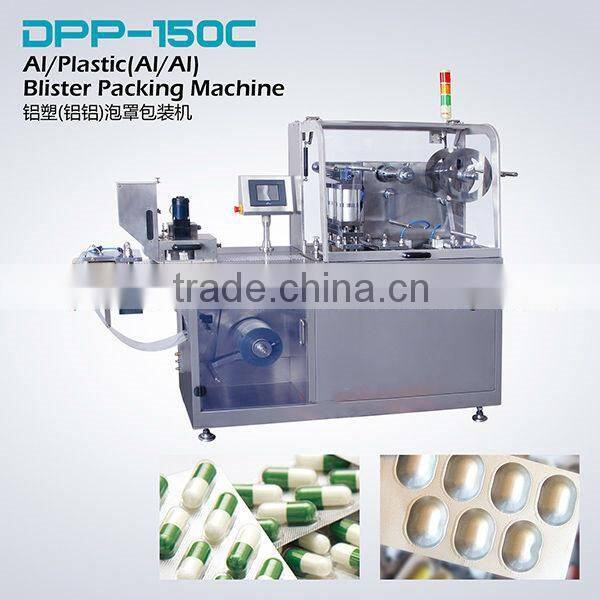

Help CenterDPP-150C Al-Plastic(Al-Al) Blister Packing Machine
Related Products
-
DPP-250E Al-Plastic(Al-Al) Blister Packing MachineNegotiableMOQ: 1 Set -
DPP-260H High Speed Blister Packing MachineNegotiableMOQ: 1 Set
-
DPP-260K Blister Packing MachineNegotiableMOQ: 1 Set
-
Automatic Bottling and Packing Compact Process LineUS$ 8,100 - 19,500MOQ: 1 Set
-
Automatic Condom Packing Products LineUS$ 1 - 1MOQ: 1 Set
Specifications
it is suitable for the Al-PVC pack-age of medicine, food, electric parts etc.DPP-150C multifunction automatic blister packing machine is an new product developed by our company and No.118 Hospital of CPLA, collecting the advantage of aluminum/plastic packing machines at home and abroad, and the important parts are adopted with our five patent technology. It is suiatble for packing tablets, sugar-coated tablets, capsules as well as small food, hardware and electronic components. It combines ten functions to a whole such as web cutting, aluminum/plastic feeding, blister forming, filling, aluminum foil printing, aluminum/plastic heat-sealing, bach number printing, cross-hatching creasing, sheet cutting, counting etc. It’s unnecessary to be operated by manual during production, the packed products have fine sealing, safe and hygienic. The performance and price of machine is better than the similar products abroad.
This machine was checked and approved by scientific and technological achievements evaluation of Zhejiang Province, listed as one of the key national new products and national improvement and GMP carried out in China. It is sold to the pharmaceutical factories, big and medium-sized hospitals throughout the nation, and exported to India, Pakistan, Malaysia, Burundi, Hongkong and Taiwan etc, and well appreciated by customers.
Performance & Features:
1. With frequency stepless speed regulating, the punching frequency reaches 6-35times per minute.
2. The stroke can be adjusted within 40-110mm, which is easy to adjust with correct synchronization.
3. Adopts plate-type mould, positive-pressure forming, featured by batch number printing, creasing and cutting, aluminum-foil/plastics automatic feeding, automatic alarm for broken-piece and finished-piece and automatic stop etc.
4. Equipped with one set general feeder, which filling percentage reaches 99.5 and above. The feeder is fitted with dust exhaust joint so can overcome the dust problem during feeding.
5. Adopts registering matching heating so that can reduce the heat energy loss of heater to the least, and the required temperature will be greatly reduced.
6. This machine has small volume, light weight, cramped structure, easy operation and maintenance.
Main Technical Parameters:
Punch Speed | 6-35Times/min |
Adjustable stroke | 40-110mm (freely adjusted) |
Max. Forming Area | 120×110mm |
Max. Forming Depth | 25mm |
Main Motor Power | 1.1kw |
Upper Heating power | 0.6 kw |
Lower Heating Power | 0.6 kw |
Heating Power for Heat Sealing | 1 kw |
Air Pump Volume Flow | ≤0.15 m3/min |
Air Pressure | 0.1-06 Mpa |
PVC for Medicine | 0.25×130mm |
Aluminum foil | 0.02×130mm |
Overall Dimensions (L×W×H) | 2300×560×1410mm |
Machine Weight | 600kg |
