Specifications
- Suitable for cap seaming of round can- Convenient and easy to adjust the height of seaming head
- No can no seaming

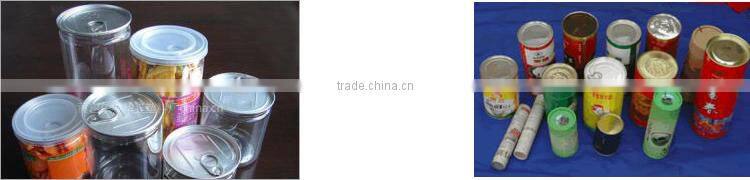

• Suitable for cap /Lid seaming of round can/jar which made of hard materials, like aluminum, tinplate and the other kinds of metal, or cylinder cardboard tubes and hard plastic materials.
• Convenient and easy to adjust the height of seaming head.
• With safety protection device, no can no seaming.
• Configure with clutch devices to enable the machine can automatically stop when in overload operation.
• One of the efficient and safe operation factor contributed by can lifting up and down during the seaming cycle.
Issue |
Application Description |
Application |
Suitable for cap /Lid seaming of round can/jar which made of hard materials, like aluminum, tinplate and the other kinds of metal, or cylinder cardboard tubes and hard plastic materials. |
Type of caps |
Aluminum, Tinplate and so on |
Dimension of can |
1) Diameter 50-150mm 2) Height 60-135mm |
Catalogue 1D-xx-xx |
4B-32 |
Control Method |
Automatic |
Number of Seaming Head |
1 |
Seaming Head Speed |
350rpm |
Container Moving Method |
Liner |
Height of Container |
60-135mm |
Diameter of Caps |
50-150mm |
Capping Speed |
40-45 cans/ Min |
Power Requirement |
AC 380V 50/60HZ |
Electricity Consumption |
1.1 Kw |
Cap Auto-Sorting |
Yes |
With Shied |
No |
Explosive-Proof |
No |
Approximate Weight ( Net) |
1360kg |
Dimension ( ‘mm ) |
2050*1210*1900mm |
Following documents are available, but not limited, to be provided upon the stage of purchasing
No |
Document |
Code |
Description |
1 |
Products Selection Guide |
SG |
To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 |
Products Profile |
PP |
To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 |
Installation Instruction |
IN |
To explain the step of installation of the equipment, and include commissioning instruction as well |
4 |
User Manual |
UM |
To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
- Container to be capped, Dimension, Material.
- Type of Cap, number, position and dimension of Cap
- Capacity requirement
- Automation requirement
- Protection requirement
- Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
