Dear Customer
Sincerely thanks for browsing our products, we are supplying Pouch Filling Machine series with following highlights
What kinds of pouches you can pack ?
Flat / Pillow Pouch , Gusset Pouch, Stand up Pouch standard or with zippper / spout , also include specific irregular pouches
What kinds of products can be packed in
In General , Include Powder , Granule , Liquid or other irregular solidity by different dosing devices configuration
How many kinds of pouch filling machine you are supplying
In simple , there are two, one includes dosing, pouch forming , filling and sealing . another one feed with premade pouches
What is your obvious advantages
- Price and Performance blananced , - Hundreds of Proven Projects, - Selected Products , Better Sevice
The Pouch Filling Machines listing , apply for following products and pouches

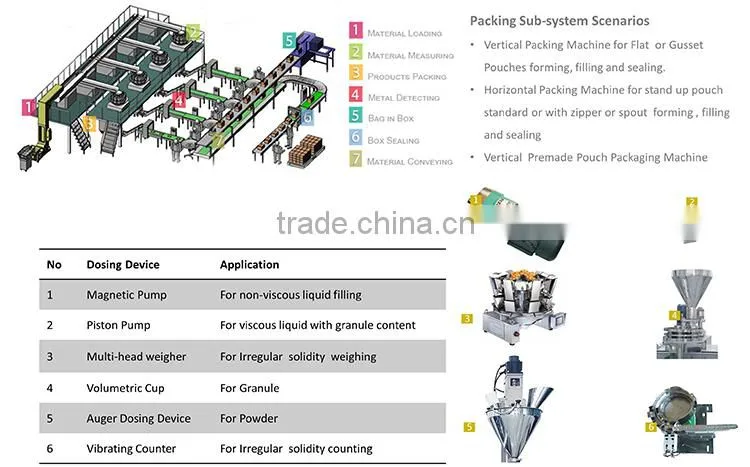

System Overview

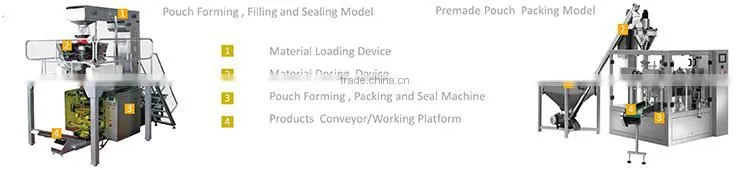

To form a Pouch Filling production line , include following sub-systems and integrate an automaic production, configure with different packing or measuring sub-system can achieve different packing requirements.
Pouch Packing Solution for Flat Pouch with pouch forming , filling , sealing process
Catalogue/1C-xxxxx |
RL320 |
RL420 |
RL520 |
RL620 |
RL720 |
RL800 |
Pouch Size-Length ‘mm |
40-190 |
80-300 |
100-350 |
100-400 |
100-450 |
150-450 |
Pouch Size-Width ‘mm |
40-150 |
80-200 |
100-250 |
150-300 |
150-360 |
200-385 |
Packing Speed –pouches/min |
<=70 |
<=80 |
<=70 |
<=65 |
<=60 |
<=60 |
Power Requirement |
AC220V 50/60HZ |
|||||
Power Consumption-KW |
2.3 |
3.0 |
5.0 |
4.0 |
4.75 |
4.75 |
Compress Air Required |
6-8 bar |
|||||
|
Compress Air Consumption-m3/min |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
Approximate Weight -kg |
300 |
500 |
550 |
800 |
850 |
950 |
Dimension( ‘mm ) |
950*650*1750 1800*650*1650 |
1350*1100*1700 |
1350*1200*1700 |
1650*1250*2000 |
1650*1400*2080 |
1350*1100*1700 |

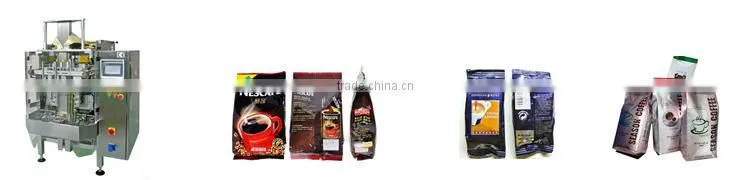

Pouch Packing Solution for Gusset Pouch with pouch forming , filling , sealing process
Catalogue/1C-xxxxx |
RL460S4 |
RL530S5 |
Type of Pouch |
Without back sealing |
With back sealing |
Pouch Size-Length ‘mm |
100-280 |
100-280 |
Pouch Size-Front Width ‘mm |
80-170 |
80-170 |
Pouch Size-Side Width ‘mm |
40-100 |
40-100 |
Film Width ‘mm max |
460-max |
530-max |
Sealing Width ‘mm |
4-6-side |
4-6-side, 10-12-back |
Packing Speed –pouches/min |
<=50 |
<=50 |
Power Requirement |
AC 220V 50/60HZ |
AC 220V 50/60HZ |
Power Consumption-KW |
5.0 |
5.3 |
Compress Air Required-Mpa |
0.6-0.8 |
0.6-0.8 |
Compress Air Consumption-m3/min |
0.15 |
0.15 |
Approximate Weight -kg |
650 |
650 |
Dimension ( ‘mm ) |
1750*1150*1950 |
1750*1150*1950 |

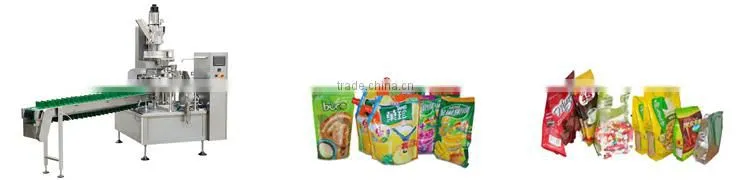

Pouch Packaging Solution for Premade Pouch which apply for all kinds of pouches and with low investment advantage
Catalogue/1k-xxxxx |
6-200 |
8-200 |
6-300 |
8-300 |
Process Stations |
6 |
8 |
6 |
8 |
Pouch Size-Length ‘mm |
100-300 |
100-300 |
100-400 |
100-400 |
Pouch Size-Width ‘mm |
70-200 |
70-200 |
160-270 |
160-300 |
Packing Speed –pouches/min |
20-55 |
20-55 |
10-40 |
10-40 |
Reference Filling Range-g/pouch |
5-1500 |
5-1500 |
5-2500 |
5-2500 |
Power Requirement |
AC380V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
Power Consumption-KW |
1.5 |
2.3 |
4.0 |
4.0 |
Compress Air Required-Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Compress Air Consumption-m3/min |
0.45 |
0.45 |
0.35 |
0.35 |
Approximate Weight -kg |
800 |
1000 |
1500 |
2000 |
Dimension ( ‘mm ) |
1475*1325*1480 |
1635*1455*1480 |
1585*1545*1600 |
1645*1645*1640 |
Pouch Packing Solution for Stand up Pouch with pouch forming , filling , sealing process
Contact us to know more......
In order to ensure the quality of the Pouch Filling Machines, we believe that the key components determine the preformance, therefore , we only select internation reputable components with the short list as below
No |
Components |
Material / Short List |
1 |
Products Touching Parts |
Stainless Steel 304 as the standard, Stainless Steel 316,316L at the Buyer’s option |
2 |
Structure / Support |
Carbon Steel or High Class Aluminum |
3 |
Main Surface |
Stainless Steel 304 |
4 |
Programmable Logic Controller |
Delta, Siemens, Mitsubishi, Panosonic |
5 |
Touch Screen |
Weinview, Siemens,Delta,Kinco, Panosonic |
6 |
Stepper/Servo Motor |
Teco, Delta, Panosonic,Leadshine |
7 |
Frequency Convertor |
Delta,Schneider,Leadshine |
8 |
Key Electric Components |
Schneider,Chint, Ls, Ark |
9 |
Key Protection & Relay |
Schneider |
10 |
Cylinder, Filter |
Airtac , SMC |
11 |
Photocell Sensor |
Autonics , Keyence,Leuze, Panosonic,Datalogic |
12 |
Vacuum Sucker |
Airtac, Sunx |
13 |
Temperature Controller |
Omoron |
Customization Philosophy
The above Pouch Filling Machine demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
• Linked bags or multi-bags cutting function;
• Pothook holes punching function
• Inflatable and exhaust functions
• Different back seal patterns
• Different end seal patterns
• Code printing on seal
• Gusseting device to save packing materials
• Pouches with zipper or spout function
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
