2015 Unique sealing technology automatic sachet packaging machine
Dear Customer
Sincerely thanks for browsing our products , we are providing total sachet packaging solutions, which include Coffee Powder Sachet Packaging Machine. the products groups as following:
There are 2 types of Coffee Powder Sachet Packaging Machine , roller pressing type and flat pressing type, it is different technology and have its advantage and benefit.

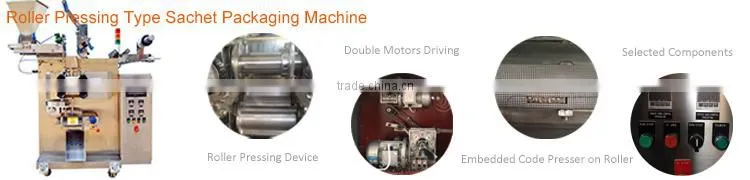

Roller Pressing Type |

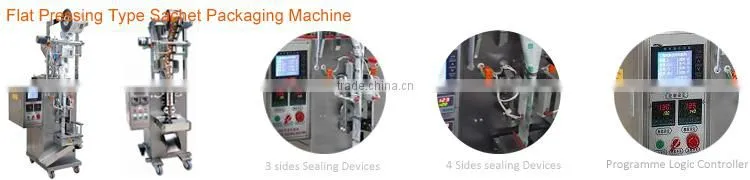

Flat Pressing Type |
|
a) Higher Price b) 1/3 faster packaging speed c) More Tightness of Sealing, No leakage d) Easy mechanical sachet width adjustment design e) Adapt for 3 and 4 sides sealing f) High Availability g) 10 years life cycle design |
a) Lower Price b) Suitable for business starting c) Simple design and simple maintenance d) Lower Power Consumption e) Stepping sachet forming and sealing f) Alternative of 3 or 4 sides sealing |
For the Sachet Packaging Machine are able to form sachets with 3, 4 sides or backing sealing types. the reference picture as below:
To assure the quality of this Machine , one of the key quality control methods , we implement key components / material approval mechanism , following is list of key components / material and suject to the consent of the client.
No |
Components |
Material / Short List |
1 |
Products Touching Parts |
Stainless Steel 304 as the standard, Stainless Steel 316,316L at the Buyer’s option |
2 |
Frame |
Carbon Steel or High Class Aluminum |
3 |
Main Surface |
Stainless Steel 304 |
4 |
Programmable Logic Controller |
Delta, Siemens, Mitsubishi, Panosonic |
5 |
Touch Screen |
Weinview, Siemens,Delta,Kinco, Panosonic |
6 |
Stepper/Servo Motor |
Teco, Delta, Panosonic,Leadshine |
7 |
Frequency Convertor |
Delta, Schneider,Leadshine |
8 |
Key Electric Components |
Schneider,Chint, Ls, Ark |
9 |
Key Protection & Relay |
Schneider |
10 |
Cylinder, Filter |
Airtac , SMC |
10 |
Photocell Sensor |
Autonics , Keyence, Leuze, Panosonic, Datalogic |
11 |
Vacuum Sucker |
Airtac, Sunx |
12 |
Temperature Controller |
Omoron |
Advantages
Advantages |
Description |
|
More tightness of sealing Add value of products |
The roller pressing technology enable stable, high strength and longer time of sealing |
More suitable for liquid sachet, No leakage |
Double horizontal sealing rollers to reinforce the sealing effect, assure no leakage, no damage during market distribution |
High Availability |
The double driving motors and roller pressing design enhance the availability factor, achieve 7x24 hours operation |
1/3 faster speed |
The frequency conversion motor and roller design enable the packing process in non-stopping status other than stepping status |
3 and 4 sides sealing integrated |
Able to implement 3 and 4 side sealing in one machine without changing of any components |
Code pressing function embedded |
Code pressing function embedded on roller , it is not necessary to configure additional code printing devices |
Specification
Catalogue/1M-xxxxx |
K219L |
K219P |
Y319F |
Y319F-H |
Y319F-Q |
Sachet Size-Length ‘mm |
50-210 |
50-210 |
50-210 |
50-210 |
50-210 |
Sachet Size-Width ‘mm |
Option 1 30-110; Option 2 30-150; Option 3 30-180; Option 4 30-200 |
||||
Filling Volume |
1-200 gram |
1-200 gram |
1-200 ml |
1-50 ml |
1-200 ml |
Packing Speed –Sachets/min |
20-120 |
20-120 |
20-120 |
20-120 |
20-120 |
Power Requirement |
AC380V 50/60HZ |
|
|||
Power Consumption-KW |
4.0 |
4.0 |
3.8 |
3.8 |
3.8 |
Approximate Weight -kg |
400 |
400 |
500 |
500 |
500 |
Dimension ( ‘mm ) |
1400*900*1670 |
1400*900*1670 |
1400*1000*1800 |
1400*1000*1800 |
1400*1000*1800 |
Note: following are the explanation of the type above
Type |
K219L |
K219P |
Y319F |
Y319F-H |
Y319F-Q |
Material |
Powder |
Granule |
Normal Liquid |
Viscous Liquid without granule |
Viscous liquid consist of granule |
Advantages
Advantages |
Description |
Lower Price |
Compare with roller pressing type, with lower price, suitable for business starting. |
Simple Maintenance |
One driving motor and one set of driving structure |
Lower Power Consumption |
Result from its simple design, lower power consumption |
Specification
Catalogue/1P-xxxxx |
K60E |
K80E |
F60E |
F30E |
FK60E |
Y60E |
Sachet Size-Length ‘mm |
50-180 |
40-150 |
50-180 |
100-220 |
50-170 |
50-170 |
Sachet Size-Width ‘mm |
50-120 |
30-100 |
40-120 |
90-150 |
40-120 |
40-120 |
Filling Volume-ml |
20-100 |
1.0-50 |
1.0-50 |
50-260 |
1.0-50 |
1.0-50 |
Packaging Speed - Sachets/min |
30-60 |
40-80 |
30-60 |
15-30 |
30-70 |
20-40 |
Power Requirement |
AC380V/220V, 50/60HZ |
|||||
Power Consumption-KW |
1.12 |
1.12 |
1.6 |
1.65 |
1.6 |
1.12 |
Approximate Weight -kg |
170 |
170 |
200 |
260 |
280 |
170 |
Dimension ( ‘mm ) |
625*750*1550 |
625*750*1550 |
650*750*1600 |
960*710*2100 |
700*750*1750 |
650*750*1588 |
Note: following are the explanation of the type above
Type |
K60/80E |
F60/30E |
FK60E |
Y60E |
Material |
Granule |
Powder |
Powder & Granule |
Liquid |

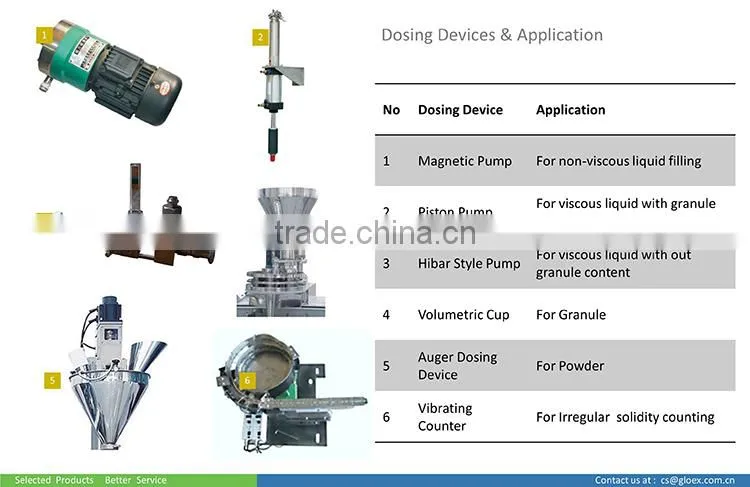

The above machines need to integrated with the following dosing devices to achieve different applications.
Customization Philosophy
The Coffee Powder Sachet Packaging Machine demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. and supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
Features |
Options/Description |
Control Mode |
1) Microcomputer with LCD 2) PLC with LED Screen and button setting up 3) PLC with Touch Screen |
Products Touching Parts |
1) Stainless Steel 304 2) Stainless Steel 316 |
Frame / Surface |
1) Stainless Steel 304 2) Painted Carbon Steel |
Type of Sachet |
1) 3 sides sealing 2) 4 sides sealing 3) Back Sealing |
Linking Sachet Cutting |
Specific the number of sachets to be linked |
Sealing Patterns |
1) Checkerboard Pattern 2) Flat Line Pattern |
Sachet Cut-off Shape |
1) Flat Cut-off 2) Serration Cut-off 3) Linking Sachet Cut-off |
Tear Notch |
4) Utilize the serration shaped cutting as the tear notch 5) Addition Tear Notch Punching Device |
Code Printing |
1) Embedded Code Pressing 2) Ribbon Code Printing 3) Code Inkjet Printing |
Material Pre-heating |
To pre-heat the material and get better fluidity |
Material Stirring |
To stir material and get better fluidity |
Dosing Devices |
Subject to the material to be packed |
Power Voltage |
380/220V, 50/60HZ |
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
