PEDK-13090 120W Nonmetal co2 laser engraving for Acrylic Quality Choice
- 100 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- DANAPR UV Laser Marking Machines F2010
- 1390 large laser engraving machine window cut paper PVC plating film laser cutting machine, cardboard paper engraving machine
- DANAPR UV Laser Marking Machines F2010 UV laser
- 3D Crystal Laser Engraving Machine
- DANAPR UV Laser Marking Machines F2005 UV laser
- DANAPR UV Laser Marking Machines
Product Details
Condition: | New | Laser Type: | CO2 | Engraving Area: | 1300mm*900mm |
Engraving Speed: | 0-60000mm/s | CNC or Not: | Yes | Cooling Mode: | Water Cooling |
Applicable Material: | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | Hubei, China |
Brand Name: | Perfectlaser | Model Number: | PEDK-13090 | Dimension(L*W*H): | 1970mm*1480mm*1250mm |
Certification: | CE, GS, ISO, SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

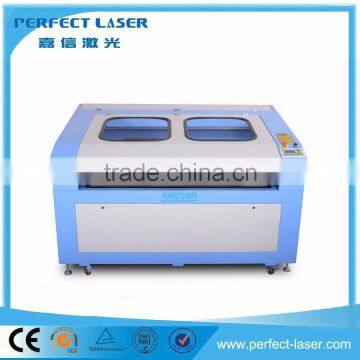

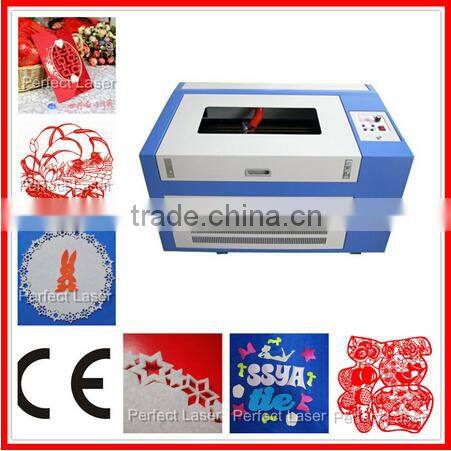

co2 laser engraving 120W PEDK-13090 CO2 Laser Cutting Machine
Laser Cutting Machine Product Features
This series products adopt imported proprietary sliding guide,and equip with auxiliary facilities,such as blower, exhaust fan, infrared, foot pedal and other auxiliary facilities.Also,this series products integrate advanced high-speed continuous curve motion control card, and adopt self-developed high-speed laser engraving & cutting controlling software.
Laser Cutting Machine Applied Industries
It has been widely used in the fields of plexiglass, architectural models, rubber plates, bamboo products.For cutting and carving on plexiglass products, acrylic art & crafts panel, lenses, wood &cutting carving, advertising materials, crystal characters, easel, packing boxes, models, toys and furnitures,etc.
Advantages of Laser Cutting Machine
1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may have less precision, and will be noise after a period using.
2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.
3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime if you require, we can use it in our order.
4. For water chiller, we use both CW5000 for single head, and CW5200 for double head laser machine.
5. All the machine are use red pointer and auto focus system.
6. All the machine have LCD offline control system + USB port.
7. The bearing we use Japan import NSK brand, which ensure the long time performance and accuracy.
8. the transforming belt adopt the famous FULONG brand, it have the metal in the material, so it is fasten and not easy to loosen.
9. All the power supply and laser device are will be running for at least 48 hours testing to ensure it's good performance.
All the features are more than above
Laser Cutting Machine Technical Data
Working Area | 1300x900mm (4feet*3feet) |
Laser Power | 60W/80W/100W/120W/150W |
Laser Type | Hermetic and Detached Co2 Laser Tube |
Engraving Speed | 0-60000mm/s |
Cutting Speed | 0-10000mm/s |
Cutting thickness | 0-25mm Acrylic (others determined by materials) |
Repeat Location Accuracy | +/-0.0125mm |
Driving mode: | DC0.8A 24V stepper motor |
Position system: | Red dot |
Interface: | USB |
Voltage | AC220V/50HZ or 110V/60HZ or depend on customer |
Machine Power | 900W |
Controlling System | CNC Professional Control System |
Support Graphics Mode | BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc. |
Cooling Mode | Circulation Water Cooling and Protection System |
Auxiliary Devices | Exhaust Fan and Exhaust Pipe |
Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
Power Control Mode | Laser Energy Combining Movement Control System |
Software | Laser cut 5.3 |
Operating temperature | 0-45C |
Operating humidity: | 5-95% |
Packing: | Standard wooden box |
Guarantee time: | 12 months, laser tube 3 months |
Operation: | Detailed Video to teach customer how to operate the machine |
Machine Size | 1970mm*1480mm*1250mm |
Guarantee & After Sales Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English verson manual and operation video CD disc.
