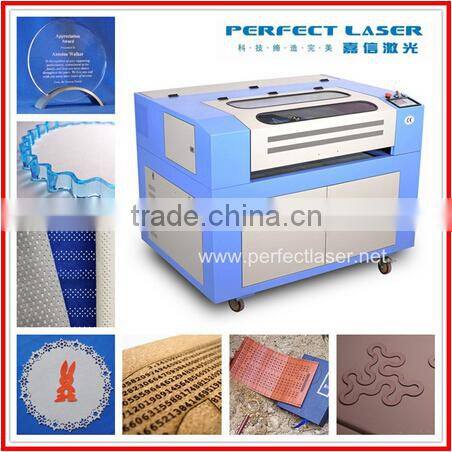

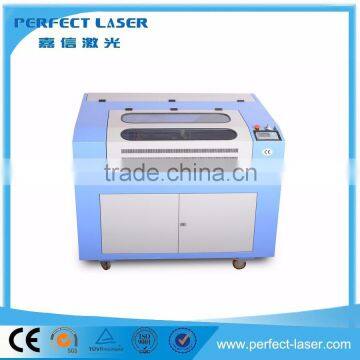

Perfect Laser PEDK-6040 50W Cutting Machine
Product Features
This model is specially designed according to the production features of garment factories and embroidery factory. It featured in its professional collocation and complete matched accessories.It is suitable for laser processing on a wide range of material,especially for some materials which is difficult for ordinary laser processing,such as white fabrics, cotton and flax expected, knitting materials,can be processed by this model. The innovative matched device, on the one hand steel is durable and the maintenance costs is low; on the other hand,it can save a lot of time in admission materials and greatly improve the processing efficiency, meanwhile it avoids continuous work of some factories in the pursuit of laser processing efficiency.Therefore,it can prolong the laser life and lower the production cost.
Its supporting software is designed on the basis of the garment and embroidery processing characteristics, such as embroidered cloth affixed within the resumption of foreign expansion. Cutting smooth curves, multi-format compatible documents, node editing, multi-tasking system.
Applied Industries
widely used in trademarks, embroidery, clothing and other industries.Adoptable for clothing tailoring, embroidery cutting, leather cutting, leather carving, leather punch & hollow,shoes cutting & carving.
Advantages of Laser Cutting Machine
1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may have less precision, and will be noise after a period using.
2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.
3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we have another brand laser tube with 10000 hours lifetime if you require, we can use it in our order.
4. For water chiller, we use both CW5000 for single head, and CW5200 for double head laser machine.
5. All the machine are use red pointer and auto focus system.
6. All the machine have LCD offline control system + USB port.
7. The bearing we use Japan import NSK brand, which ensure the long time performance and accuracy.
8. the transforming belt adopt the famous FULONG brand, it have the metal in the material, so it is fasten and not easy to loosen.
9. All the power supply and laser device are will be running for at least 48 hours testing to ensure it's good performance.
All the features are more than above
Technical Data
Laser Type |
hermetic and detached CO2 laser tube |
Laser Power |
50W |
Engraving Area |
400×600mm |
Engraving Speed |
0-1200mm/s |
Cutting Speed |
0-600mm/s |
Repeating Location Accuracy |
±0.05mm |
Moving System |
CNC Professional controlling system |
Supporting Graphics Formats |
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,CDR,DWG,DXF |
Cooling Mode |
water-cooling and protection system |
Working Voltage |
220V ±10% 50HZ |
Machine Power |
900W |
Auxiliary Devices |
Exhaust fan & exhaust pipe |
Cutting Platform |
professional thickening honeycomb cutting work table |
Power Control Mode |
Laser Power and moving system cooperate0 |
Control Software |
Original PERFECT LASER software |
Machine Size |
1000*750*1150mm |
