Keyland Laser Engraving Machine Intaglio Pattern
Laser engraving video :http://youtu.be/kiIYjMp7vrs
Laser engraving video http://youtu.be/h26Jf68Ekb8
Laser engraving video http://youtu.be/AbXG4lW-5fk
Laser engraving video http://youtu.be/bWmmbmJtNY4
Laser Power:60W 80W 100W 130W 150W 200W
Laser Engraving Machine is suitable for leather MDF Wood Acrylic and other nonmetal materials Engraving/hollowing/cutting
Details of Laser Engraving Machine
Model: KQG-6040 /1060 / 1390 /1610 / 1325/1825
Laser Wavelength:10640nm
Laser tube:RECI /EFR/RF metal Laser
Working area:600mm*400mm 1000*600mm 1300*900mm 1600*1000mm 1300*2500mm, 1800*2500mm
Water Chiller:Water pump/Chiller CW3000/CW5000/CW5200
Engraving speed: ≤ 1000mm/s
Cutting Speed: ≤500mm/s
Laser output control:0~100% set by software
Mini.Engraving size:1.0*1.0mm
Higheset Scanning precision:2500DPI
Dirver system:Stepper /Servo motor
Interface:DSP
Offline work :Yes Power:AC 110V/220V 50Hz/60HZ
Software
Compatible :CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA
Graphic format supported: DST PLT BMP DXF DWG AI LAS
Exact materials can be used by keyland Laser Engraving Machine
Cutting |
Engraving |
|
Wood |
√ |
√ |
Melamine |
√ |
√ |
Matte Board |
√ |
√ |
Wood veneer |
√ |
√ |
Cork |
√ |
√ |
Corian |
√ |
√ |
Anodized Aluminum |
√ |
|
Painted metals |
√ |
|
Plastic |
√ |
√ |
Fiberglass |
√ |
√ |
Acrylic |
√ |
√ |
Fabric |
√ |
√ |
Glass |
√ |
|
Coated metal |
√ |
|
Ceramic |
√ |
|
Delrin |
√ |
√ |
Cloth |
√ |
√ |
Mylar |
√ |
√ |
pressboard |
√ |
√ |
Leather |
√ |
√ |
Rubber |
√ |
√ |
Marble |
√ |
Strong points of our Laser Engraving Machine
1. Laser machine
Compact & smart unit.Easy to install,operate and maintenance
*DSP control/USB on& off working
* Software has installed before shipping,all has ajusted -Plug and Play
2.Top quality of parts
Imported USA mirrors & lens
Taiwai HIWIN Guide rail/Aluminum working table/Brand motor
3.Longer warranty and after service
Lifetime of service & technology supports
we can tell you how to use till you are being an expert
Keyland 's technology for Laser engraving Machine
Durable parts and good operating software are be used in our machines
Stronger appearance
focus lens,the focus length is about 50.5 and 63.5 for option,which are suitable for cutting ,engraving
*Auto focus--adjust the working platform and workpiece to a suitable space automatically
*Red pointer --Easy and fast to align
*Z axis-(up down working table)-suitable for thickess of workpiece 's processing
Auxiliary equipment of Laser engraving Machine
Blowing nozzle--- Debris being transferred in the process
Hydraulic protection,exclusion of dust and smoke.
Universal Wheels --easy to move machine
Water Chiller---make laser tube longer lifetime.
Air pump.fan exhust

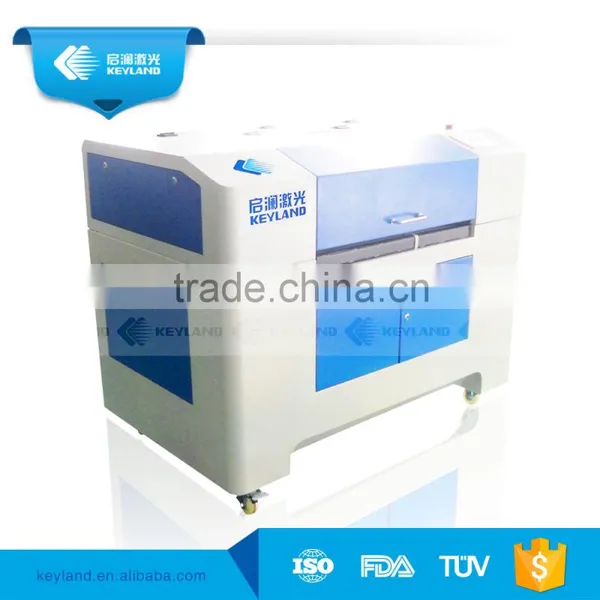

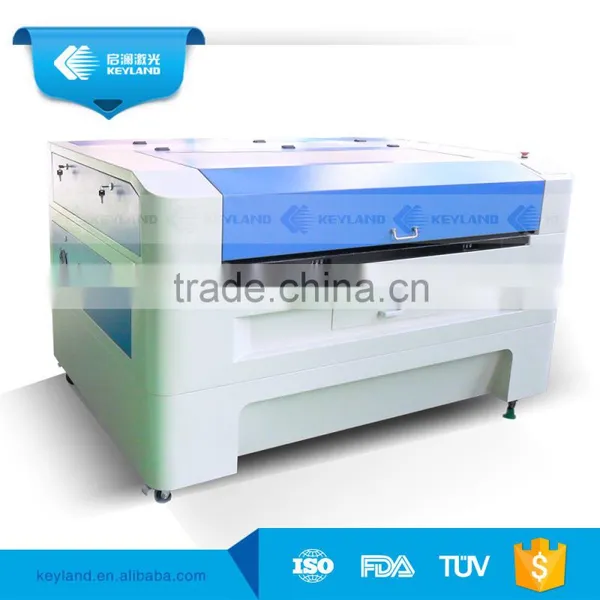

Actual photos of laser engraving machine:
We Manufacture
Keyland Laser |
Tel: 027 8797 0569 Fax:027 8797 0568 Cell: 18672917139 |
Skype:lvlucia mail:lucia at keylandlaser dot com |
|
Laser engraving machine end-user/ agent/dealer/distributor wanted Hope our competitive price, good quality,comprehensive service will help you expand market sucessful |
