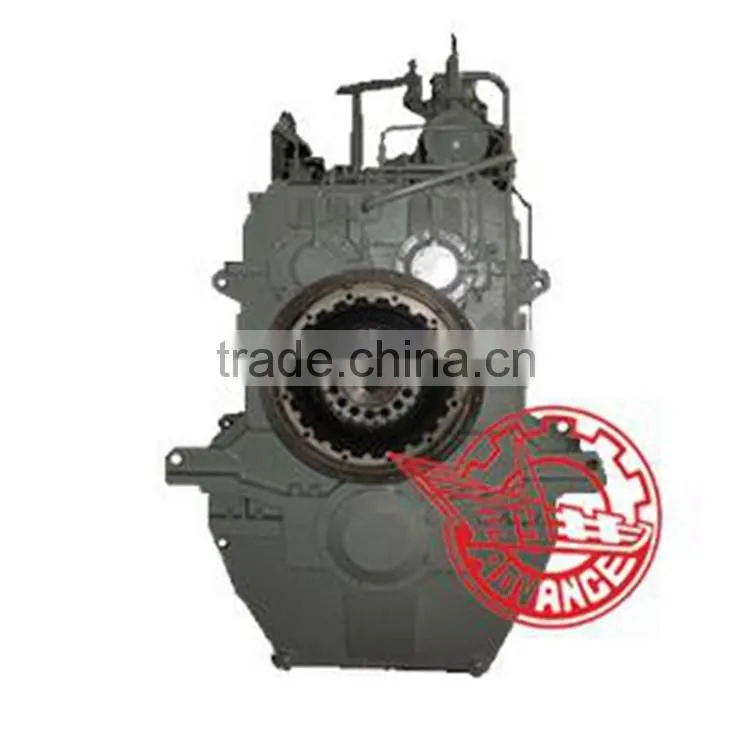

Advance Marine Gearbox HCW1100 for Marine Engine
US$ 1,000 - 5,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ADVANCE
Model Number:
HCW1100
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other ports in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Advance Marine Gearbox HCT800 for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece -
Advance Marine Gearbox HCT800-3 for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece
-
Advance Marine Gearbox HCT800-1 for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece
-
Advance Marine Gearbox HCT600A for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece
-
Advance Marine Gearbox HCT600A-1 for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
ADVANCE
Model Number
HCW1100
Gearing Arrangement
Planetary
Input Speed
1500-1800 r/min
Product Description
Marine Gearbox HCW1100 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and three-stage transmission, featuring in compact structure, extra large ratio, and convenient in dis- and reassembly and maintenance.
This product are approved by CCS, BV, GL, LR, ABS, NK, DNV, RS and KR Classification Societies.
Product Application
Marine Gearbox HCW1100 is suitable for fishing, tug and various engineering boats.
Main Technical Data
| Input speed | 1500-1800r/min | ||
| Reduction ratio | 15.882 | Trans. capacity | 0.931kw/r/min |
| 16.546 | 0.931kw/r/min | ||
| 17.243 | 0.894kw/r/min | ||
| 17.973 | 0.857kw/r/min | ||
| 18.740 | 0.822kw/r/min | ||
| 19.547 | 0.788kw/r/min | ||
| 20.395 | 0.756kw/r/min | ||
| Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
| Rated thrust | 300KN | ||
| Center distance | 625mm | ||
| L×W×H | 1143x1630x2550mm | ||
| Net weight | 6000kg | ||
| Flywheel | Depend on engine flywheel | ||
| Bell housing | No | ||
