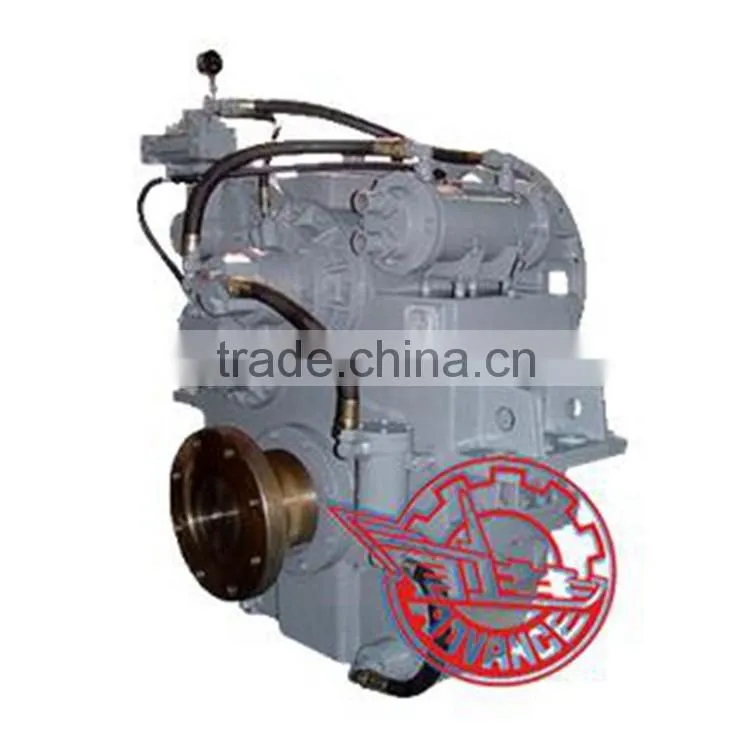

Advance Marine Gearbox HCT600A-1 for Marine Engine
US$ 1,000 - 5,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ADVANCE
Model Number:
HCT600A-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other ports in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Advance Marine Gearbox HCT400A for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece -
Advance Marine Gearbox HCT400A-1 for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece
-
Advance Marine Gearbox HCT2000 for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece
-
Advance Marine Gearbox HCD800 for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece
-
Advance Marine Gearbox HCD600A for Marine EngineUS$ 1,000 - 5,000MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
ADVANCE
Model Number
HCT600A-1
Gearing Arrangement
Planetary
Input Speed
1000-2100 r/min
Product Description
Marine Gearbox HCT600A-1 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in small in volume, light in weight and large in ratio.
This product are approved by CCS, BV, GL, LR, ABS, NK, DNV, RS and KR Classification Societies.
Product Application
Marine Gearbox HCT600A-1 is suitable for fishing, tug and various engineering and transport boats.
Main Technical Data
| Input speed | 1000-2100r/min | ||
| Reduction ratio | 7.043,7.69,8.23 | Trans. capacity | 0.441kw/r/min |
| 8.82 | 0.412kw/r/min | ||
| 9.47 | 0.400kw/r/min | ||
| 10.10 10.80 | 0.375kw/r/min | ||
| 11.65 | 0.353kw/r/min | ||
| 12.57 | 0.331kw/r/min | ||
| 14.44 | 0.257kw/r/min | ||
| 15.91 | 0.204kw/r/min | ||
| Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
| Rated thrust | 140KN | ||
| Center distance | 500mm | ||
| L×W×H | 878x1224x1346mm | ||
| Net weight | 1700kg | ||
| Flywheel | SAE21,18,16 | ||
| Bell housing | SAE00,0 | ||
