Home > Products > Marine Gearbox > Advance Marine Gearbox HCT600A for Marine Engine

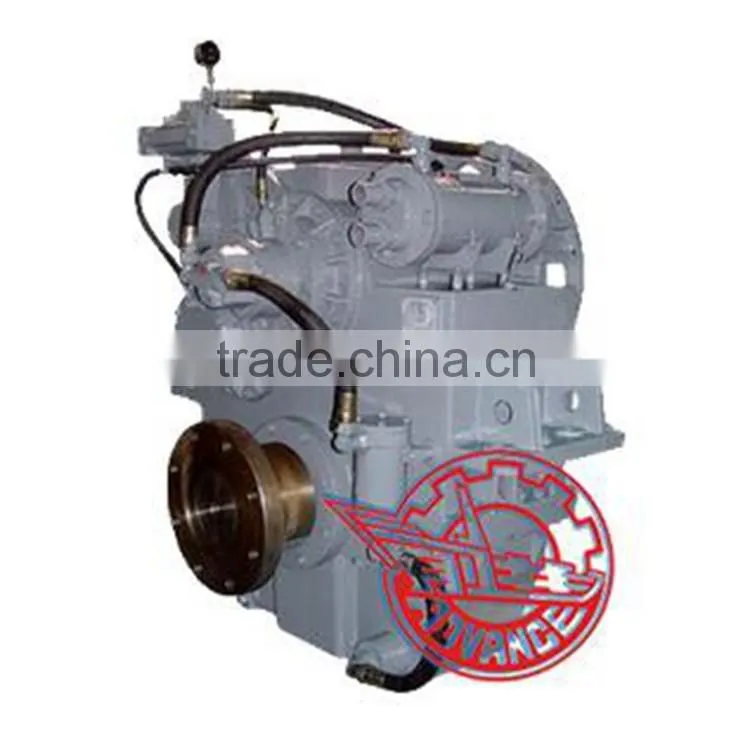

Advance Marine Gearbox HCT600A for Marine Engine
- 400 Piece / Pieces per Month
- Shanghai or other ports in China
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | ADVANCE | Model Number: | HCT600A |
Gearing Arrangement: | Planetary | Input Speed: | 1000-2100 r/min |
Product Description
Marine Gearbox HCT600A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in small in volume, light in weight and large in ratio.
This product are approved by CCS, BV, GL, LR, ABS, NK, DNV, RS and KR Classification Societies.
Marine Gearbox HCT600A is suitable for fishing, tug and various engineering and transport boats.
Input speed | 1000-2100r/min | ||
Reduction ratio | 6.06 | Trans. capacity | 0.44kw/r/min |
6.49 | 0.40kw/r/min | ||
6.97,7.51 | 0.37kw/r/min | ||
8.04 | 0.33kw/r/min | ||
8.66 | 0.29kw/r/min | ||
9.35 | 0.28kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 90KN | ||
Center distance | 415mm | ||
L×W×H | 805×1094×1271mm | ||
Net weight | 1650kg | ||
Flywheel | SAE18,16,14 | ||
Bell housing | SAE00,0 |
