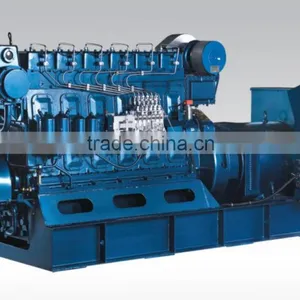

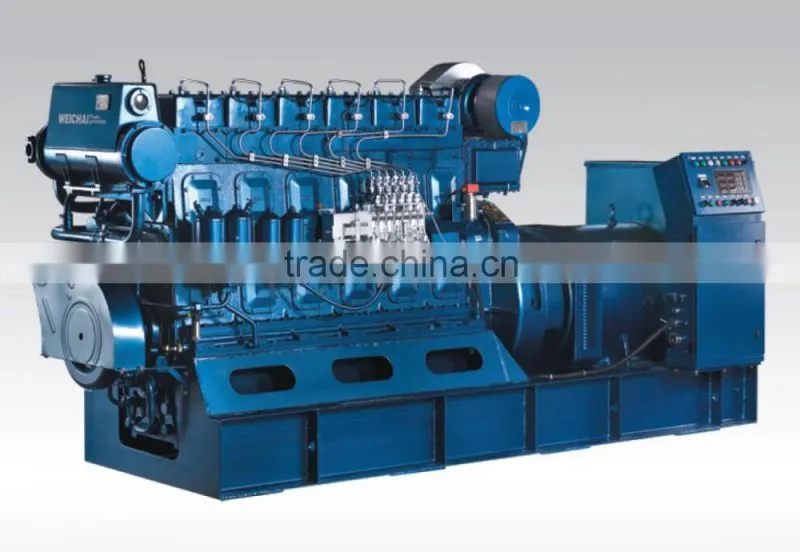

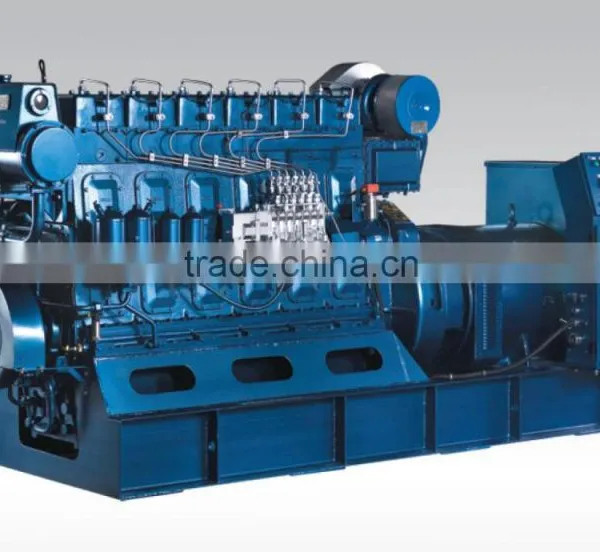

Weichai 6160/170 Series Series Marine Genset generator 200kw/250kw
Spectru
Portfolio of 6160 series marine diesel generator set (LEC generator)
| Model | Power kW | Speed r/min | Model of diesel engine | Power of diesel engine kW | Intake mode | LxWxH mm |
Weight kg |
| CCFJ200J-WD | 200 | 1000 | R6160ZC | 235 | Turbocharged and intercooled | 3758×1100×1945 | 5200 |
| CCFJ250J-WD | 250 | 1000 | X6160Z-1 | 280 | Turbocharged and intercooled | 3758×1100×1945 | 5400 |
Portfolio of 6160 series marine diesel generator set (Marathon generator)
| Model | Power kW | Speed r/min | Model of diesel engine | Power of diesel engine kW | Intake mode | LxWxH mm |
Weight kg |
| CCFJ200J-WH | 200 | 1000 | R6160ZC | 235 | Turbocharged and intercooled | 3708×1100×1945 | 5000 |
| CCFJ250J-WH | 250 | 1000 | X6160Z-1 | 280 | Turbocharged and intercooled | 3708×1100×1945 | 5300 |
The frequency of generator set listed in this table is 50Hz (60Hz generator sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system.
Dimensions
| Model | A mm |
A1 mm |
B mm |
L mm |
L1 mm |
W mm |
H mm |
R mm |
D mm |
| CCFJ200J-WD | 880 | 160 | 1010 | 3441 | 3018 | 1100 | 1950 | 8 | 30 |
| CCFJ250J-WD | 880 | 160 | 1010 | 3669 | 3114 | 1100 | 1950 | 8 | 30 |
Installation and overall dimension of 6160 series generator set (Marathon generator)
| Model | A mm |
A1 mm |
B mm |
L mm |
L1 mm |
W mm |
H mm |
R mm |
D mm |
| CCFJ200J-WH | 880 | 160 | 1010 | 3391 | 2968 | 1100 | 1950 | 8 | 30 |
| CCFJ250J-WH | 880 | 160 | 1010 | 3619 | 3064 | 1100 | 1950 | 8 | 30 |
Note: dismension of the above generator set is calibrated in accordance to 1000rpm, 400V and IP23.
The frequency of generator set listed in this table is 50Hz (60Hz generator sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system.
Parameter
Technical specification of 6160 series diesel engine:
| Model | 6-cylinder, water-cooling, in-line, four-stoke, direct injection |
| Bore/Stroke (mm) | 160/225 |
| Displacement (L) | 27.14 |
| Compression ratio | 14.5:1 |
| Fuel oil consumption (g/kW.h) | ≤210 |
| Idling (r/min) | 450±50 |
| Steady speed adjusting ratio (%) | ≤5 |
| Start mode | Electrical start / pneumatic start |
| Noise dB(A) | ≤112 |
| Displacement of oil pan (L) | 120 |
| Rotation direction of crankshaft | Counterclockwise (facing the flywheel end) |
Technical specification of 6160 series marine diesel generator set
| Speed (r/min) | 1000 |
| Power (kW) | 200/250 |
| Pressure (V) | 400/440 |
| Frequency (Hz) | 50 /60 |
| Start mode | Electrical start/pneumatic start |
| Power factor | 0.8 (lag) |
| Cooling mode | Dual-circulation water-cooling |
| Speed regulation mode | Mechanical/mechanical plus accelerator servo mechanism/electrical |
Intruction
Equipped with well known motors like Landian and Marathon, 6160 series marine diesel power generator unit is powered by 6160 diesel engines produced by Weichai. In addition, its rotation speed reaches 1,000r/min and power range 200kW-250kW. CCS and ZY can be provided upon request. The components of the power generator unit: Motors: Marathon, LEC, and other well-known brand in China; the insulation class is F Grade and above; the protection grade is IP23. Parallel connection: marine diesel power generator unit can realize load transfer for two units without power off, thus capable of parallel operation. Protection: the generator unit will activate its alarming system when its rotation speed, oil pressure, cooling water temperature or oil temperature exceeds the limit. Main Features: 1.1 The power generator unit delivers excellent performance; With compact structure and excellent performace, 6160 series generator unit boasts attractive appearance. It is highly powerful and reliable. Moreover, it can be easily operated and maintained. 1.2 The power generator is highly safe and reliable The power generator unit adopts brand name motors, including Landian, Marathon, etc.
