Marine emergency diesel engine fire pump unit
- 20 Unit / Units per Month
- Shanghai or the other port in China
- T/T
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Siyang | Model Number: | 380C |
| Usage: | Water | Power: | Electric | Standard or Nonstandard: | Standard |
| Fuel: | Diesel | Pressure: | High Pressure | Application: | Fire |
Product Description

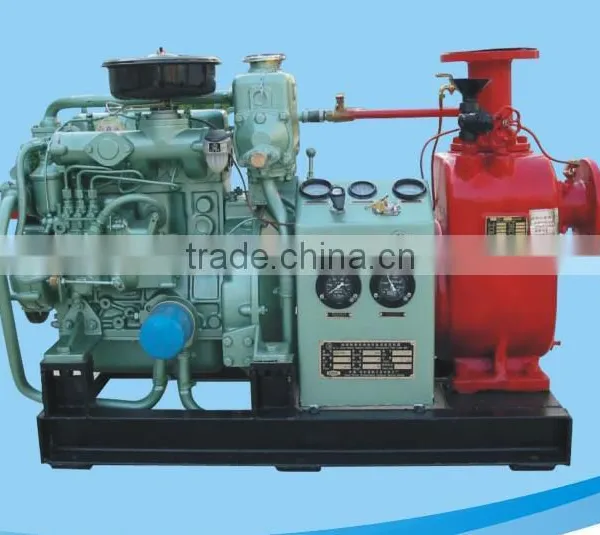

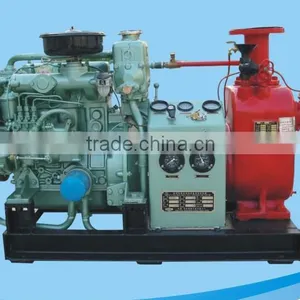

Marine emergency diesel engine fire pump unit
The type CCYⅡ-80 BZ marine diesel emergency firefighting pump set is manufactured and found in accordance of the rule "Rules and Regulations for the Construction and Classification of Sea Going Steel Ships"2012,"Guidance note of ship firefighting"1999,IMO SOLAS 2013 Resolution and latest amendments.
The set is mainly used to emergency fire device of the river ,coast and seagoing ships and also can be used for loading a ship, extracting dirty water or pumping water.
The products are approved by the China Classification Society.
Main Technical Data
Diesel engine model | 380C | |||
Pump model | 80CYZ-55 | 80CYZ-70 | ||
Starting method | Electric motor & manual starting | |||
Cooling method | Closed cooling circulation | |||
Delivery lift (m) | 50~55 | 60~70 | ||
Flow (m3/h) | 60~45 | 60~45 | ||
Suction height (m) | 4~6 | |||
Rated speed (r/min) | 2900 | |||

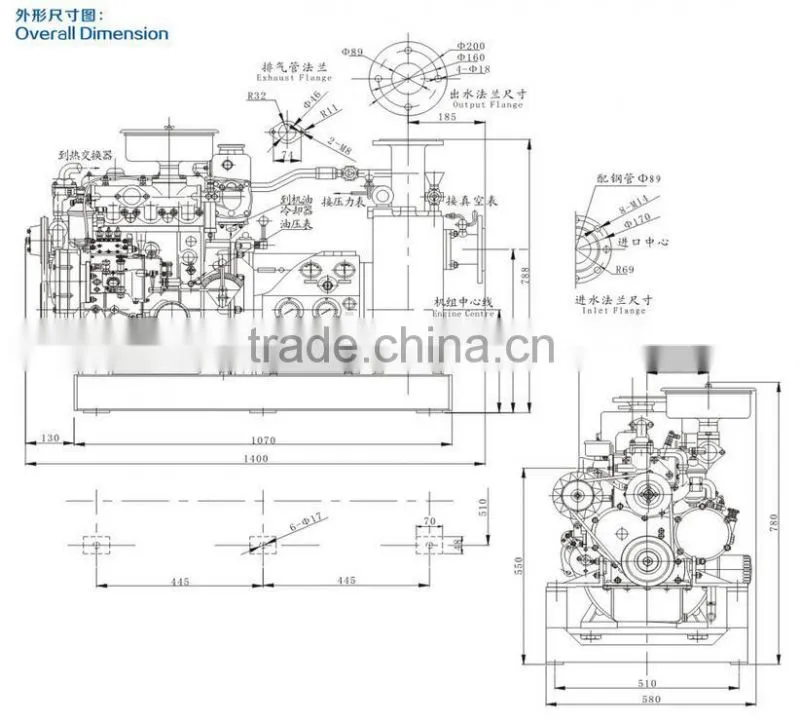

Overall dimension(L×W×H) (mm) | 1250×560×850 | 1300×560×850 | ||
Net weight (kg) | 385 | 440 | ||
