Weichai WP2/WP3 12kw-30kw Marine Diesel Generator Genset

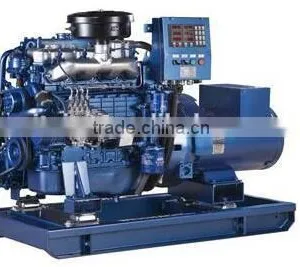

Weichai WP2/WP3 12kw-30kw Marine Diesel Generator Genset thumbnail-1

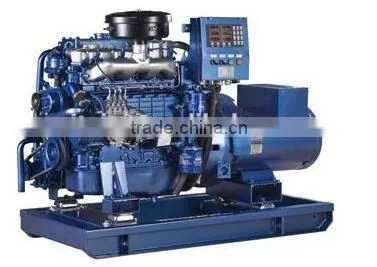

Weichai WP2/WP3 12kw-30kw Marine Diesel Generator Genset photo-1
US$ 1,890 - 15,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Weichai
Model Number:
WP2/WP3
Contact Supplier Request Quote Chat Now
Xiamen Sitaiqi Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Weichai
Model Number WP2/WP3
Output Type AC Three Phase
Speed 1500/1800rpm
Frequency 50HZ/60HZ
Rated Power 10-1700kw
Rated Voltage 400/230V

Weichai WP2/WP3 12kw-30kw marine diesel generator genset



Spectru

Profolio of WP2/ WP3 series marine diesel generator set (Marathon generator)

Model Power
 kW		 Model of diesel engine Power of diesel engine kW Intake mode LxWxH
mm		 Weight kg
CCFJ12J-W2 12 WP2.1CD18E1 17.5 Naturally aspirated 1258 757 1037 467
CCFJ16J-W2 16 WP2.5CD22E1 22 Naturally aspirated 1275 761 1113 467
CCFJ24J-W2 24 WP3.9CD33E1 33.3 Naturally aspirated 1430 719 1157 490
CCFJ30J-W2 30 WP4.3CD38E2 38 Naturally aspirated 1430 719 1157 500


Profolio of WP2/WP3 series marine diesel generator set (LEC generator)

Model Power
 kW		 Model of diesel engine Power of diesel engine kW Intake mode LxWxH
mm		 Weight
kg
CCFJ12J-W3 12 WP2.1CD18E1 17.5 Naturally aspirated 1364 757 1037 470
CCFJ16J-W3 16 WP2.5CD22E1 22 Naturally aspirated 1381 761 1113 472
CCFJ24J-W3 24 WP3.9CD33E1 33.3 Naturally aspirated 1580 719 1163 500
CCFJ30J-W3 30 WP4.3CD38E2 38 Naturally aspirated 1580 719 1163 520



Parameter



No. Item WP2.1CD18E1 WP2.5CD22E1 WP3.9CD33E1 WP4.3CD38E2
1 Configuration 4-cylinder, water-cooled, in-line, four-stoke, direct injection
2 Bore/Stroke (mm) 85/100 90/100 102/118 105/125
3 Displacement (L) 2.1 2.5 3.9 4.3
4 Power 18 22 33 38
5 Speed (r/min) 1500
6 Min. fuel oil consumption(g/kW.h) ≤232
7 Lub oil and fuel consumption ratio (g/kW.h) ≤1.36
8 Idling (r/min) 650±50
9 Speed regulation mode Mechanical
10 Steady speed adjusting ratio ≤5
11 Ignition order 1-3-2-4
12 Start mode DC12V Electrical starting
13 Cooling mode Forced circulation of water cooling
14 Lubrication method Pressure lubrication
15 Lubricant capacity (L) 7 8
16 Rotation direction of crankshaft Counterclockwise (facing the flywheel end)





Dimensions

Installation and dimension of WP2/WP3 series marine diesel generator set (Marathon generator)

Model A A1 B L L1 W W1 H R D
CCFJ12J-W2 110 450 580 1258 1115 757 640 1037 6 19
CCFJ16J-W2 110 450 580 1275 1115 761 640 1113 6 19
CCFJ24J-W2 120 540 580 1430 1318 719 640 1157 6 19
CCFJ30J-W2 120 540 580 1430 1318 719 640 1157 6 19


Installation and overall dismension of WP2/WP3 series marine diesel generator set (LEC generator)

Model A A1 B L L1 W W1 H R D
CCFJ12J-W3 110 450 580 1364 1115 757 640 1037 6 19
CCFJ16J-W3 110 450 580 1381 1115 761 640 1113 6 19
CCFJ24J-W3 120 540 580 1580 1318 719 640 1163 6 19
CCFJ30J-W3 120 540 580 1580 1318 719 640 1163 6 19



Intruction

WP2/WP3 Series Marine Genset consists of WP2/WP3 series diesel engine from Weichai and generator from such renowned brands as Marathon and Siemens. Its power ranges from 16kW to 30kW. Its insulation class is H and above. CCS and ZY classification certificates are provided upon request. Product Introduction Generator: Marathon, Siemens, etc. with insulation class of H grade or above. Main Features Boasting high fuel economy, the Genset is small in size, light in weight with elegant design and compact structure. Using pressure lubrication, the engine can start without pre-lubrication and thus, save the start-up time. Optional Configuration Instrument: ordinary/ digital display Solenoid Generator: Marathon/Stanford/Lan Dian/Siemens/others Voltage: 400V/440V Frequency: 50Hz/60Hz
