Weichai CW200 Series Marine Genset Generator 400kva-2020kva

Weichai CW200 Series Marine Genset Generator 400kva-2020kva thumbnail-1
Weichai CW200 Series Marine Genset Generator 400kva-2020kva photo-1
US$ 5,000 - 150,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Weichai
Model Number:
CW200
Contact Supplier Request Quote Chat Now
Xiamen Sitaiqi Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Weichai
Model Number CW200
Speed 700/720/750/900/1000rpm
Frequency 50HZ/60HZ
Rated Power 320-1500KW
Rated Voltage 400/450V

Weichai CW200  Series Marine Genset generator 400kva-2020kva



Weichai CW200 Series Marine Genset generator 400kva-2020kva



Spectru



Marine diesel generator set (50Hz/400V, cosφ=0.8 lag)



Model Power kW Model of diesel engine Speed r/min Power of diesel engine kW Model of generator Generator
capacity
kVA		 Overall dimension Net weight kg
CCFJ320J-X 320 CW6200ZD-7 750 450 1FC6454-8SA82 400 4550×1800×2450 11500
CCFJ380J-X 380 CW6200ZD-7 450 1FC6456-8SA82 520 4550×1800×2450 11500
CCFJ400J-X 380 XCW6200ZD-5 540 1FC6456-8SA82 520 4550×1800×2450 11500
CCFJ470J-X 470 XCW6200ZD-5 540 1FC6502-8SA82 620 4600×1800×2450 12000
CCFJ520J-X 520 XCW6200ZD-51 600 1FC6504-8SA82 680 4600×1800×2450 12500
CCFJ520J-X 520 CW6200ZD 1000 600 1FC6456-6SA42 660 4550×1800×2450 11500
CCFJ580J-X 580 XCW6200ZD 698 1FC6501-6SA42 810 4600×1800×2450 12000
CCFJ600J-X 600 XCW6200ZD-1 720 1FC6501-6SA42 810 4600×1800×2450 12000
CCFJ700J-X 700 XCW6200ZD-2 828 1FC6502-6SA42 925 4600×1800×2450 12000
CCFJ700J-X 700 CW8200ZD 800 1FC6502-6SA42 925 5170×1800×2450 13800
CCFJ800J-X 800 XCW8200ZD-1 960 1FC6504-6SA42 1060 5170×1800×2450 14000
CCFJ1000J-X 1000 CW12V200ZD 1200 1FC6564-6SA42 1390 5400×1900×3000 19500
CCFJ1250J-X 1250 XCW12V200ZD-1 1440 1FC6567-6SA42 1650 5520×1900×3000 20000
CCFJ1400J-X 1400 CW16V200ZD 1600 1FC6632-6SA42 1800 6500×1900×3000 24500
CCFJ1500J-X 1500 CW16V200ZD 1760 1FC6634-6SA42 2020 6500×1900×3000 25000

Note: in model, X for: 2-Fenxi generator, 3-Liuzhou generator.



Model Power kW Model of diesel engine Speed r/min Power of diesel engine kW Model of generator Generator
capacity
kVA		 Overall dimension Net weight
kg
CCFJ330J-X 330 CW6200ZD-17 720 432 1FC6456-3SA82 420 4550×1800×2450 11500
CCFJ450J-X 450 XCW6200ZD-6 518 1FC6502-3SA82 620 4680×1800×2450 11500
CCFJ470J-X 470 CW6200ZD-5 900 540 1FC6456-8SA82 605 4550×1800×2450 11500
CCFJ550J-X 550 XCW6200ZD-4 648 1FC6502-8SA82 760 4600×1800×2450 12000
CCFJ600J-X 600 CW8200ZD-9 720 1FC6502-8SA82 760 5170×1800×2450 13800
CCFJ700J-X 700 XCW8200ZD-4 864 1FC6506-8SA82 880 5300×1800×2450 14000
CCFJ930J-X 930 CW12V200ZD-2 1080 1FC6564-8SA82 1330 5400×1900×3000 20000
CCFJ1120J-X 1120 XCW12V200ZD-4 1296 1FC6566-8SA82 1440 5400×1900×3000 20500
CCFJ1250J-X 1250 CW16V200ZD-8 1440 1FC6567-8SA82 1580 6500×1900×3000 24500
CCFJ1350J-X 1350 CW16V200ZD-1 1584 1FC6568-8SA82 1700 6500×1900×3000 25000


Marine diesel generator set (60Hz/450V, cosφ=0.8 lag)



Model Power kW Model of diesel engine Speed r/min Rated power of diesel engine kW Model of generator Generator
capacity
kVA		 Overall dimension Net weight kg
CCFJ320J-XZ* 320 CW6200ZD-7 750 450 1FC6454-8SA82 400 4550×1800×2450 12000
CCFJ350J-XZ* 350 CW6200ZD-7 450 1FC6456-8SA82 520 4550×1800×2450 12000
CCFJ400J-XZ 400 XCW6200ZD-5 540 1FC6456-8SA82 520 4550×1800×2450 12000
CCFJ450J-XZ 450 XCW6200ZD-5 540 1FC6502-8SA82 620 4600×1800×2500 12500
CCFJ490J-XZ 490 XCW6200ZD-51 600 1FC6502-8SA82 620 4600×1800×2450 12500
CCFJ500J-XZ* 500 CW6200ZD 1000 600 1FC6456-6SA42 660 4550×1800×2450 12000
CCFJ550J-XZ 550 XCW6200ZD 698 1FC6501-6SA42 810 4680×1800×2450 12500
CCFJ600J-XZ 600 XCW6200ZD-1 720 1FC6501-6SA42 810 4600×1800×2450 12500
CCFJ648J-XZ* 648 CW8200ZD 800 1FC6501-6SA42 810 5170×1800×2450 14500
CCFJ720J-XZ 720 XCW8200ZD-1 960 1FC6502-6SA42 925 5170×1800×2450 15000
CCFJ950J-XZ* 950 CW12V200ZD 1200 1FC6562-6SA42 1210 5400×1900×3000 20000
CCFJ1000J-XZ* 1000 CW12V200ZD 1200 1FC6564-6SA42 1390 5400×1900×3000 20500
CCFJ1150J-XZ 1150 XCW12V200ZD-1 1440 1FC6566-6SA42 1480 5400×1900×3000 20500
CCFJ1300J-XZ* 1300 CW16V200ZD-6 1600 1FC6567-6SA42 1650 6500×1900×3000 24500



Note: in model, X for: 2-Fenxi generator, 3-Liuzhou generator.
The model with “*” is able to burn 380cst/50℃ (3500s) heavy oil, while the rest is only able to burn 180cst/50℃(1500s) heavy oil.


Marine heavy oil generator set (60Hz/450V, cosφ=0.8 lag)



Model Power kW Model of diesel engine Speed r/min Power of diesel engine kW Model of generator Generator
capcity
kVA		 Overall dimension Net weight kg
CCFJ330J-XZ* 330 CW6200ZD-17 720 432 1FC6456-3SA82 420 4550×1800×2450 12000
CCFJ400J-XZ 400 XCW6200ZD-6 518 1FC6502-3SA82 620 4600×1800×2450 12500
CCFJ450J-XZ* 450 CW6200ZD-5 900 540 1FC6456-8SA82 605 4550×1800×2450 12000
CCFJ500J-XZ 500 XCW6200ZD-4 648 1FC6502-8SA82 760 4600×1800×2450 12500
CCFJ550J-XZ* 550 CW8200ZD-9 720 1FC6502-8SA82 760 5170×1800×2450 14500
CCFJ700J-XZ 700 XCW8200ZD-4 864 1FC6506-8SA82 880 5300×1800×2450 15000
CCFJ850J-XZ* 850 CW12V200ZD-2 1080 1FC6562-8SA82 1160 5400×1900×3000 20000
CCFJ1000J-XZ 1000 XCW12V200ZD-4 1296 1FC6564-8SA82 1330 5400×1900×3000 20500
CCFJ1130J-XZ* 1130 CW16V200ZD-8 1440 1FC6566-8SA82 1440 6500×1900×3000 24500

Note: in model, X for: 2-Fenxi generator, 3-Liuzhou generator.

The model with “*” is able to burn 380cst/50℃ (3500s) heavy oil, while the rest is only able to burn 180cst/50℃(1500s) heavy oil.

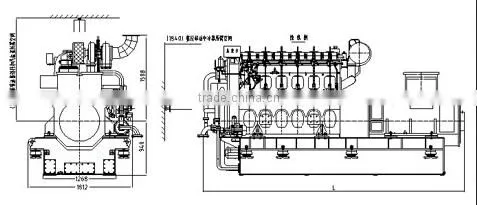

Dimensions











Intruction

CW200 series marine Genset adopts internationally advanced CW200 series marine diesel engines as its power source and is equipped with 1FC6 series brushless generators (Siemens technology). The engine and the generator are connected by Vulkan flexible coupling and mounted on common fixing pedestal. This series Genset reaches A (Excellent) level in vibration test. The power range of the Genset is from 320kW to 1,500kW. Its rotation speed is 750r/min or 1,000r/min when the frequency is 50Hz or 720r/min or 900r/min when the frequency is 60Hz. Its main features include low fuel consumption, high reliability, long durability and easy maintenance. MGO, MDO and HFO (380cSt/50℃) can be used. CCS, BV, GL and RINA classification certificates can be provided upon request. Main Features 1.1 Reliable and durable: TBO reaches 25,000 hours 1.2 Stable and low vibration: the Genset is connected with the ship hull by Vulkan damper, which effectively reduces the vibration both from the Genset and to the hull. 1.3 High generator efficiency (0.93~0.95), small voltage waveform distortion, excellent dynamic performance, insulation grade is F Class or H Class, protection grade is IP23 or IP44 1.4 high-end configuration for optional functions 1.4.1 The Genset is capable of exchanging information with computer data collection system of the cabin (485 interface), providing information inclusive of rotation speed, lub oil pressure and temperature, fresh water pressure and temperature, fuel pressure, gas temperature both before and after turbocharger, alarming data, lub oil pressure drop of lub oil filter, and fuel oil leak alarm. 1.4.2 The unit has realized AUT-0 Cycle Automatic Operation without workers on duty. Optional configuration 1. Start-up: in-line engines can choose electric or gas start-up 2. High-pressure oil pumps: separated pump / integrated pump (for in-line engines only) 3. Speed adjust: mechanic hydraulic (with servo motor) / electronic (Woodward, Heinzmann, fortrust) 4. Exhaust temperature display: pointer instrument / thermocouple 5. Thermostatic valve: copper / GGG 6. Engine monitor: standard configuration (rotation speed, oil pressure, water temperature, oil temperature) (remote transmission) / special configuration (rotation speed, oil pressure, water temperature, oil temperature, fresh water pressure, fuel temperature, exhaust temperature of various cylinders, front and rear turbine) (remote transmission or 485 interface) 7. Generator protection grade: IP23/IP44 8. Manufacturer of generator: Liudian / Fenxi 9. Indicator valve / release valve 10. Prelube pump: manual / electric (self-start Genset can choose electric prelube pump only) 11. Nozzle cooling unit: for engines using HFO with viscosity over 120cSt/50℃only (two or three Gensets share one) 12. External drawing of fresh water heating device, circuit diagram, and instructions (provided upon request for self-start unit) 13. Automatic control box: self-start, pre-heating and pre-lubrication of standby GenSet (provided upon request for self-start unit) 14. Fuel leakage alarming device and emission certificate 15. Silencer 16. Spare parts for unrestricted service 17. Certificates (CCS/BV/GL/RINA, provided upon request)
